Appendix G: DB2 demo configuration

When using DB2, it is mandatory to create an ODBC data source (i.e. called DB2_ODBC_ESL) to

connect to the DB2 database. See chapter 7.3 for more information on ODBC.

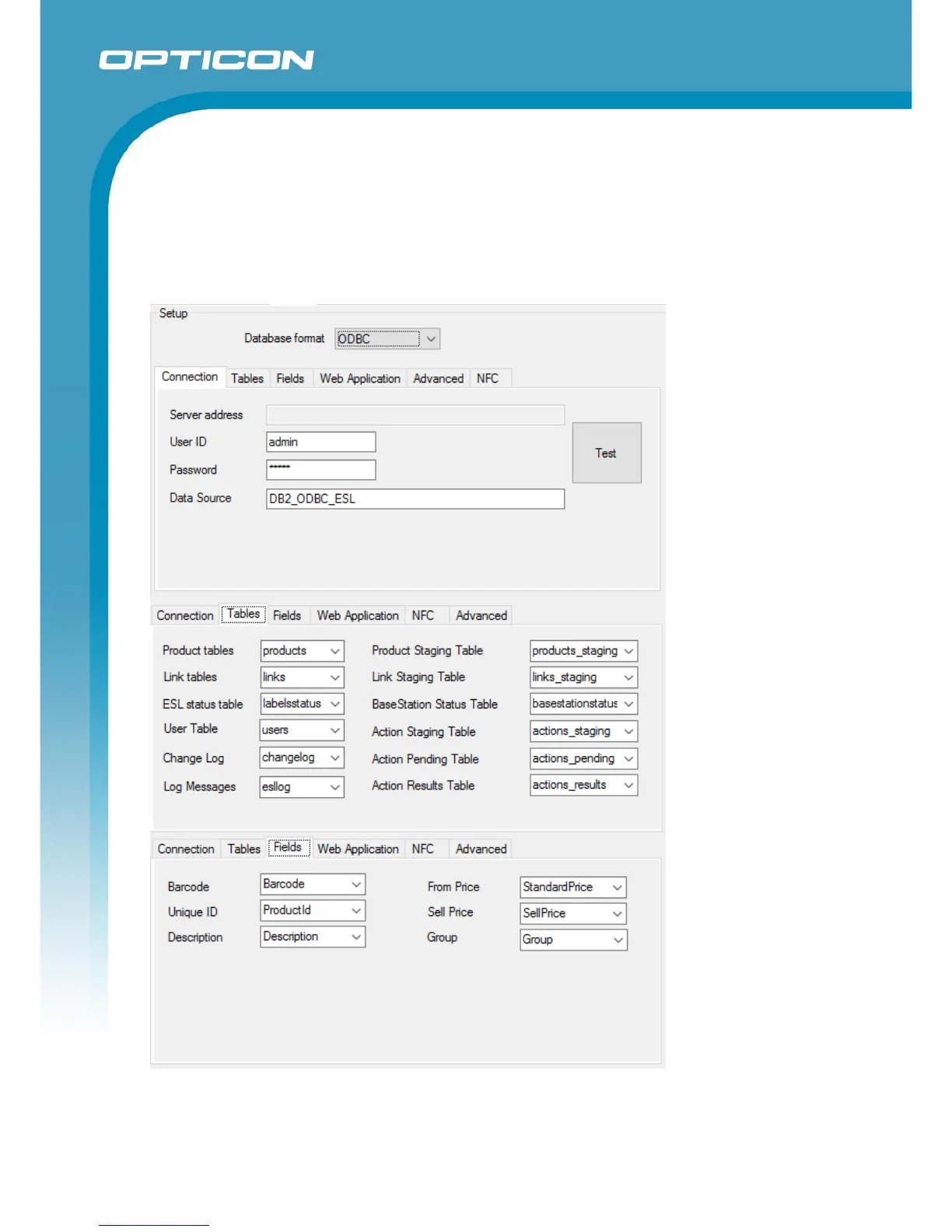

Use the following configuration in the ESL server.

After making the configuration, use the ‘Test’-button to test the connection details.
