Assembly
Version 1.1.4 - 2022-09-23 13Originalbetriebsanleitung
GH 10T | GH 15T EN
GH10T_GH15T_GB_3.fm
3.3.1 Requirements regarding the installation site
INFORMATION
In order to attain good functionality and a high processing accuracy as well as a long durability
of the machine the installation site should fulfil certain criteria.
Please observe the following points:
The device must only be installed and operated in a dry and well-ventilated place.
Avoid places nearby machines generating chips or dust.
The installation site must be free from vibrations also at a distance of presses, planing ma-
chines, etc.
Any parts sticking out such as stops, handles, etc. have to be secured by measures taken by
the customer if necessary in order to avoid endangerment of persons.
Provide sufficient space for the staff preparing and operating the machine and transporting
the material.
Also consider that the machine is accessible for setting and maintenance works.
Provide for sufficient illumination (Minimum value at the working place: 300 lux).
If the illuminance is too little make sure to provide additional illumination.
INFORMATION
The mains plug of the drill bit grinder must be freely accessible.
3.4 Suction
The drill bit grinder is equipped with a through-hole Ø30mm in the base plate.
If required, it is possible to mount a suction e.g. vacuum cleaner connection on this hole. In
order to allow an appropriate suction it is necessary to position the drill bit grinder on a table
plate and provide a through-hole. The suction is always useful when it is necessary to regrind a
large number of spiral drills. In this way the cleaning expenditure after finishing the grinding
tasks is considerably reduced.

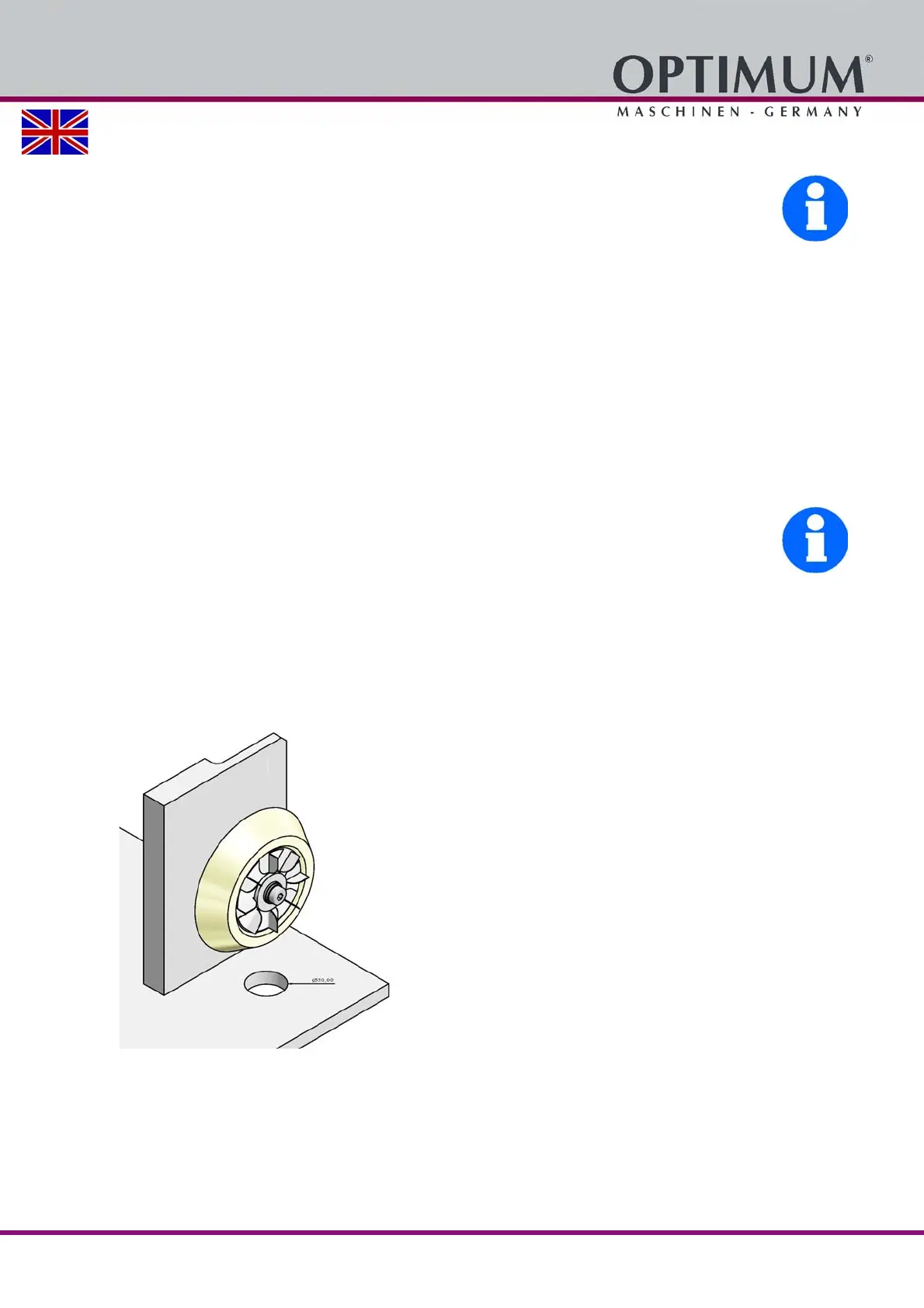

Img.3-1: Suction connection
