Operation
Version 1.1.4 - 2022-09-2316 Originalbetriebsanleitung
GH 10T | GH 15T
EN
GH10T_GH15T_GB_4.fm

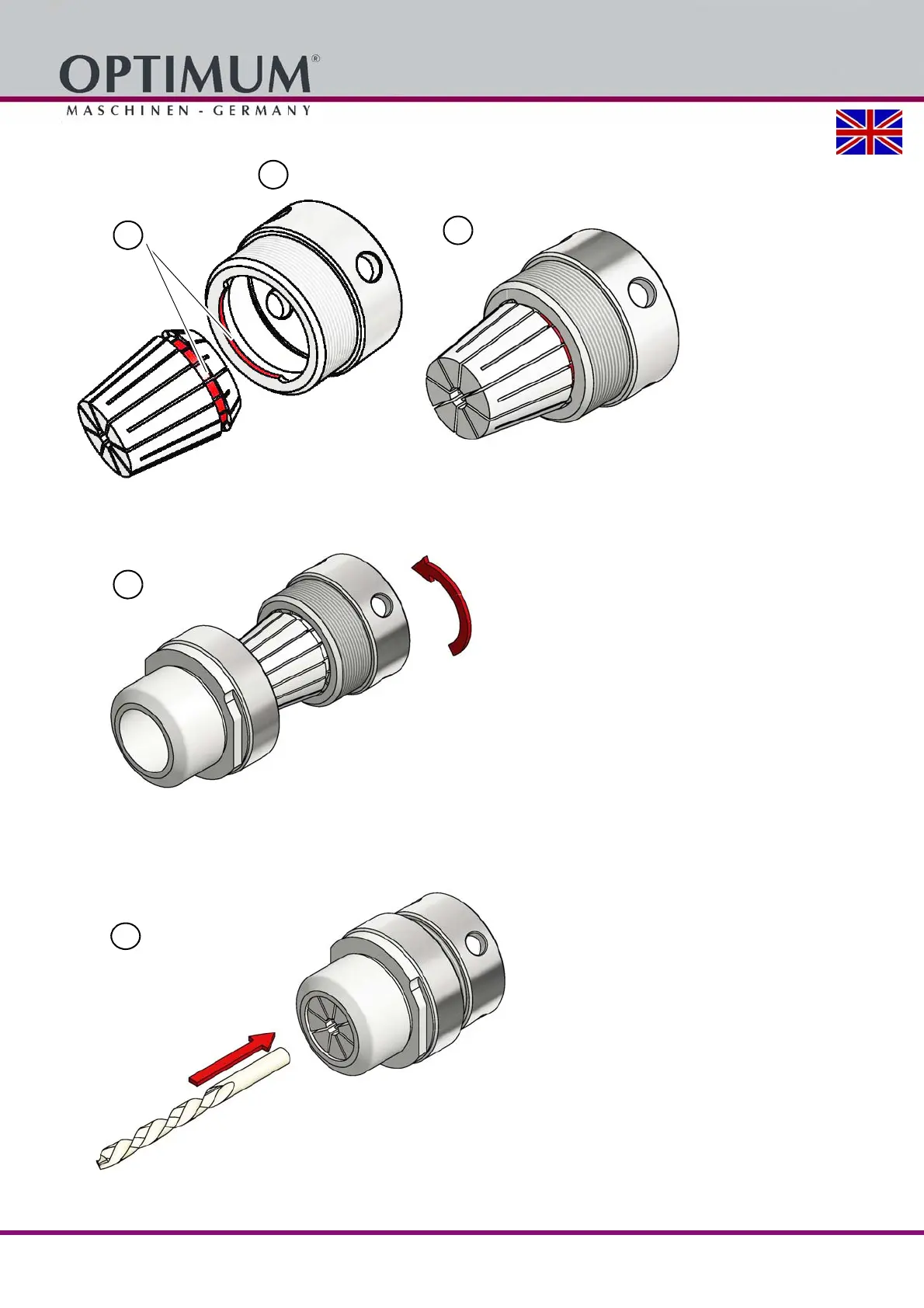

Insert the selected collet chuck into the collet chuck holder depending on the drill diameter.
The indicated positions have to cam in.
Img.4-2: Collet chuck holder with collet chuck
Screw the clamping chuck group together.
Insert the spiral drill into the collet chuck.
Do not yet tighten the spiral drill in the collet chuck since it is still necessary to adjust the
protruding length and the angle of the spiral drill.
