Introduction

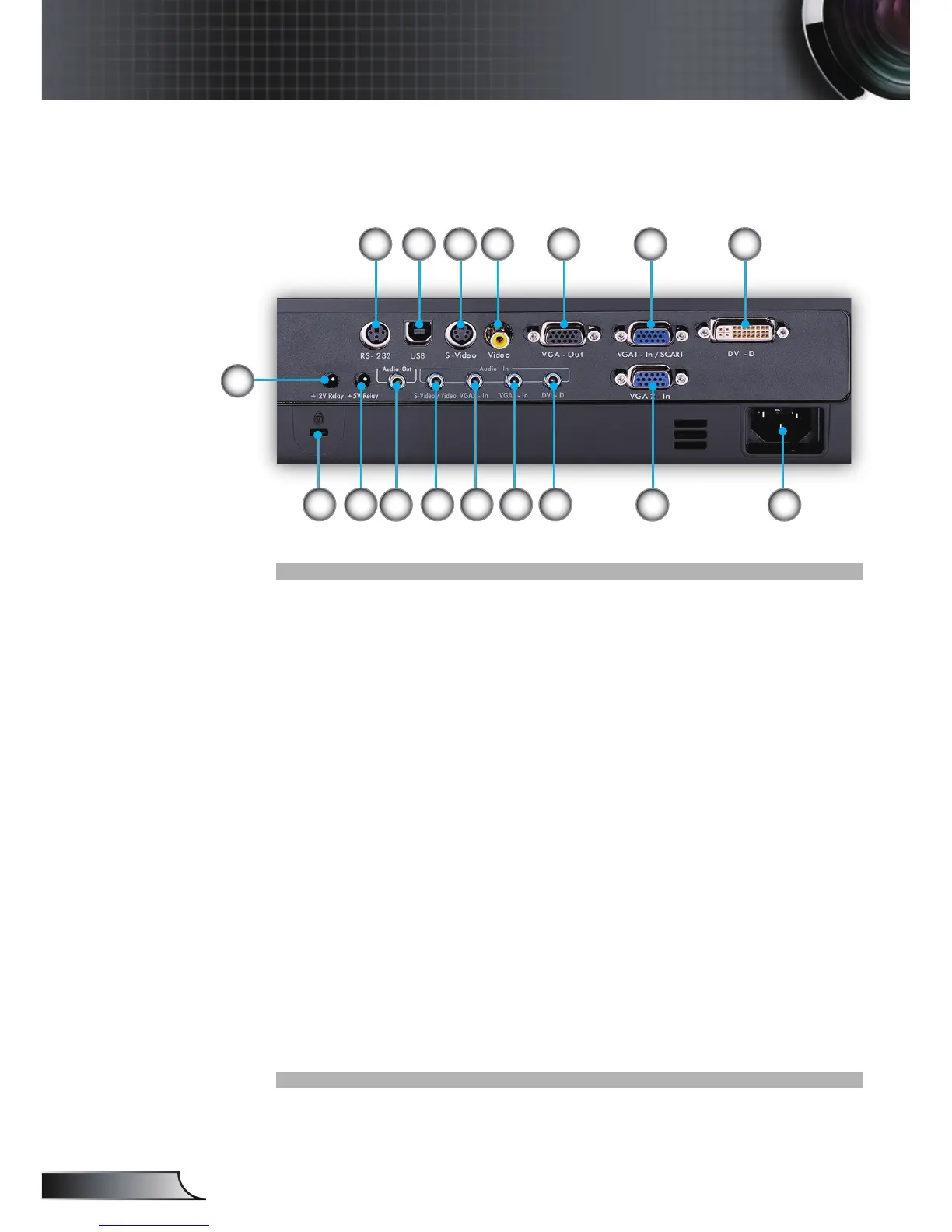

Connection Ports
1. DVI-D Input Connector (PC Digital and HDCP)
2. VGA1-In/ SCART Connector (PC Analog Signal/
Component Video Input, HDTV/SCART Input)
3. VGA-Out Connector (Monitor Loop-through Output)
4. Composite Video Input Connector
5. S-Video Input Connector
6. USB Connector (Connect to PC for Remote Mouse function)
7. RS-232 Connector
8. Kensington
TM
Lock Port
9. +12V Relay Connector
10. +5V Relay Connector
11. Audio-Out Connector
12. Audio-In (for S-Video/Video Connector)
13. Audio-In (for VGA2-In Connector)
14. Audio-In (for VGA1-In Connector)
15. Audio-In (for DVI-D Connector)
16. VGA2-In Connector (PC Analog Signal/Component Video
Input/HDTV)
17. Power Socket
1
234567
16
15141312
11
108
9
17

Optoma EP761 Specifications

Power

power supply	AC Input 100-240V, Auto-Switching
power consumption maximum	305 Watts
power consumption standby	<10 Watts

Operating Environment

operating temperature	5-35º C
humidity	80%

Display

display technology	0.55” DDR DLP Technology by Texas Instruments
native resolution	1024 x 768
maximum resolution	1400 x 1050

Projection

brightness	3200 ANSI Lumens
contrast ratio	2200:1
lamp life STD/ECO	2000/3000 Hours

Connectivity

I/O connectors	DVI-D w/HDCP, Two VGA-In, VGA-Out, S-Video, Composite Video, Four Audio-In, Audio-Out, USB, +12V Trigger, RS-232, +5V Trigger
audio	One 2-Watt Speaker
computer compatibility	VGA, SVGA, XGA, SXGA+ Resized, VESA PC and Macintosh Compatible

Weight and Dimensions

weight	2.9 kg
dimensions	295 x 95.7 x 222 mm
