Appendices
RS232 Commands
Pin no. Name
I/O (From Projec-
tor Side
1
TXD
OUT
2 RXD IN
3 GND __
Pin no. Spec.
1
R(RED)/Cr
2
G(GREEN)/Y
3 B(BLUE)/Cb
4 GND
5 GND
6 GND
7 GND
8 GND
9 DDC 5V
10 GND
11 GND
12 DDC Date
13 HD/CS
14 VD
15 DDC Clock
12345
678910
1112131415
1
2
3

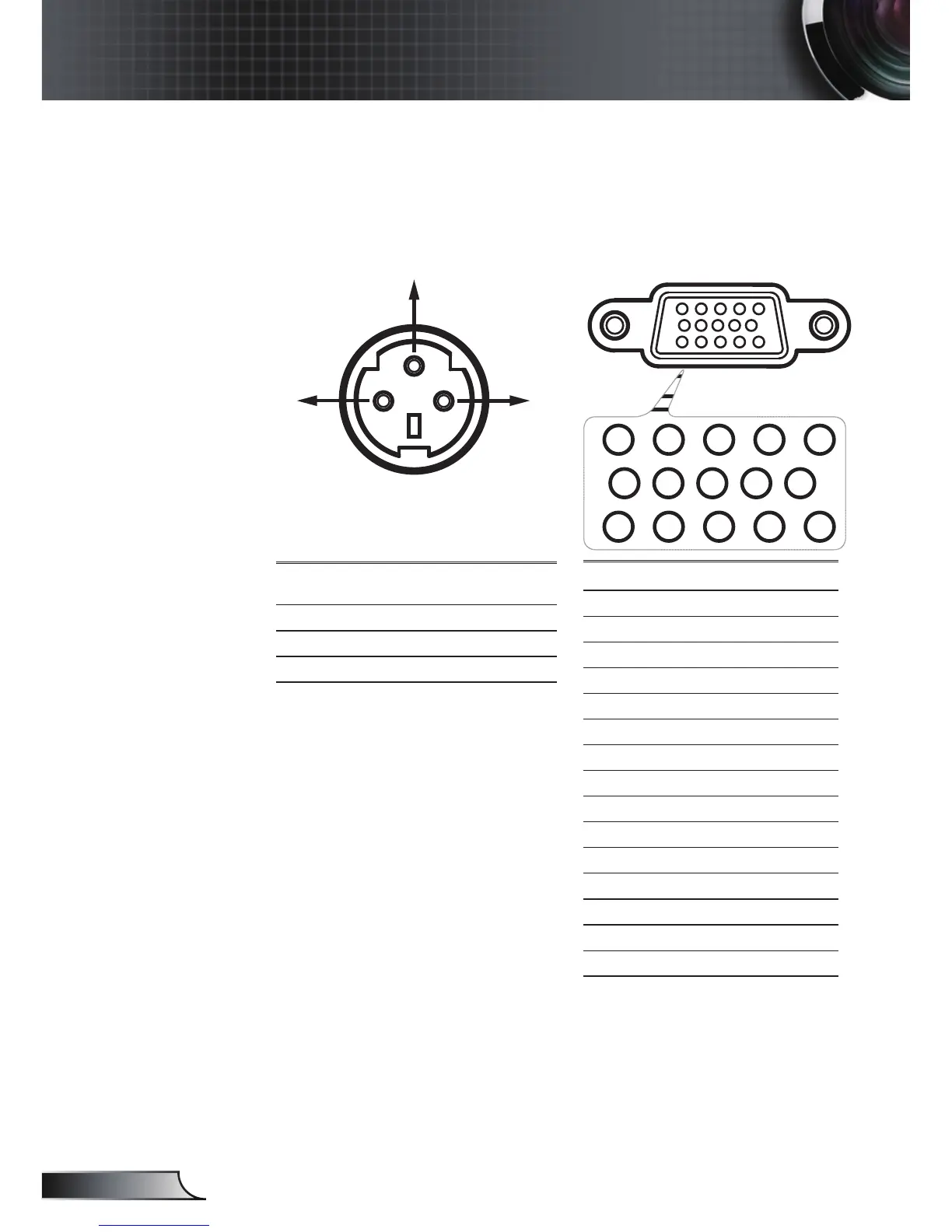

RS232 Connector VGA-In Connector
