Optoma HD25e - ROD Adjustment

HD25/HD25LV/HD25e
Condential 2-7
2-2 Rod Adjustment
1. Environment Adjustment
- The distance between the engine and
the screen is 1.8M.
- This process should be done at a dark
environment (under 2 Lux).
2. Procedure Adjustment
- Change the screen to "white screen".

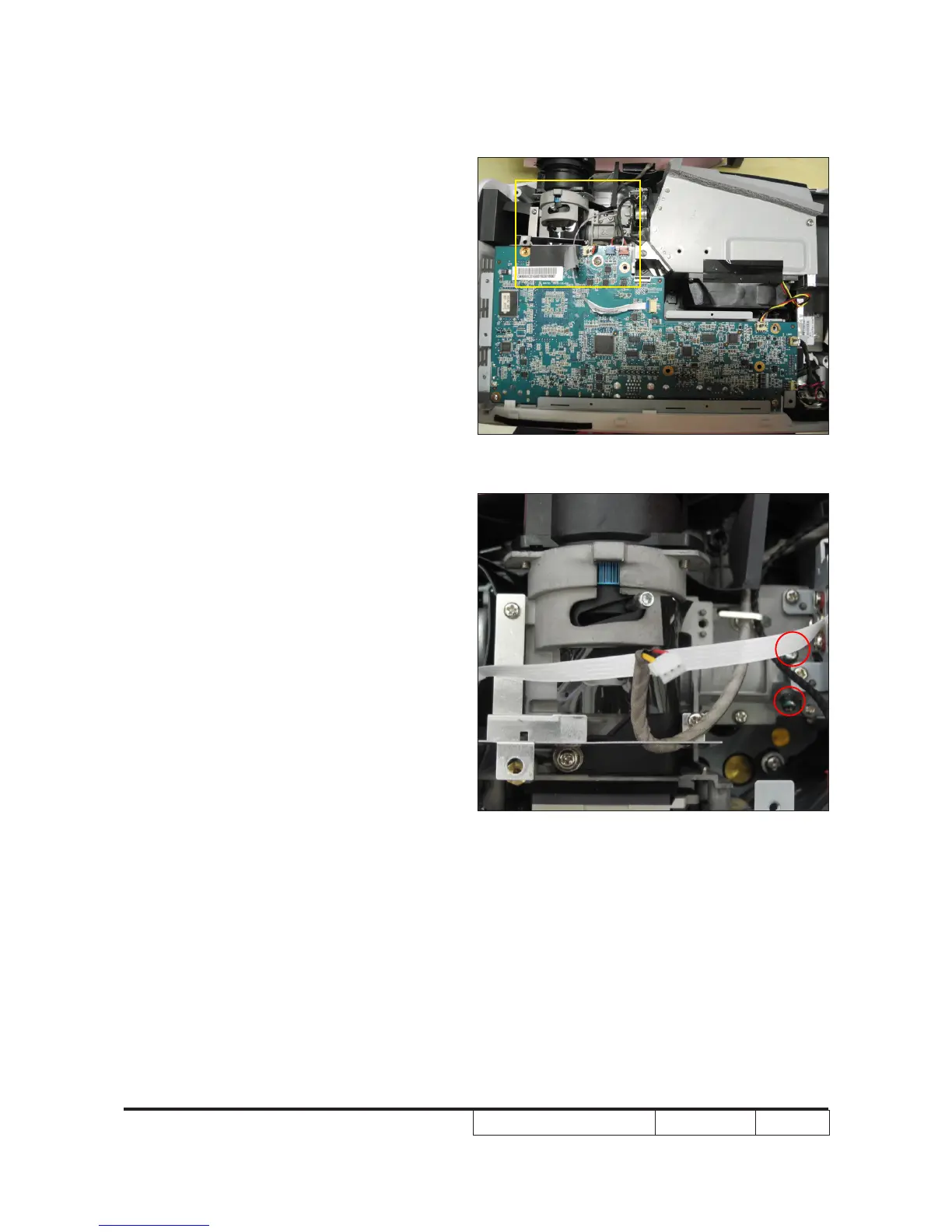

- Adjust the screws by using the rod
on the engine module to readjust the
image.
("screw 1" should be adjusted rst, and
then "screw 2". Adjust until the yellowish
or bluish parts disappeared.)
3. Abnormal image inspection
- It should not have any abnormal color
at the rim of the image by estimating
through the eyes.
Note: - To avoid over adjusting the rod.
- After the operation, please use the glue
to x the screws.
1
2
