Optoma HD80 - Ceiling Mount Installation; Mounting Screw Specifications; Installation Precautions

46
Appendices
Please note that dam-
age resulting from
incorrect installation
will invalidate the war-
ranty.

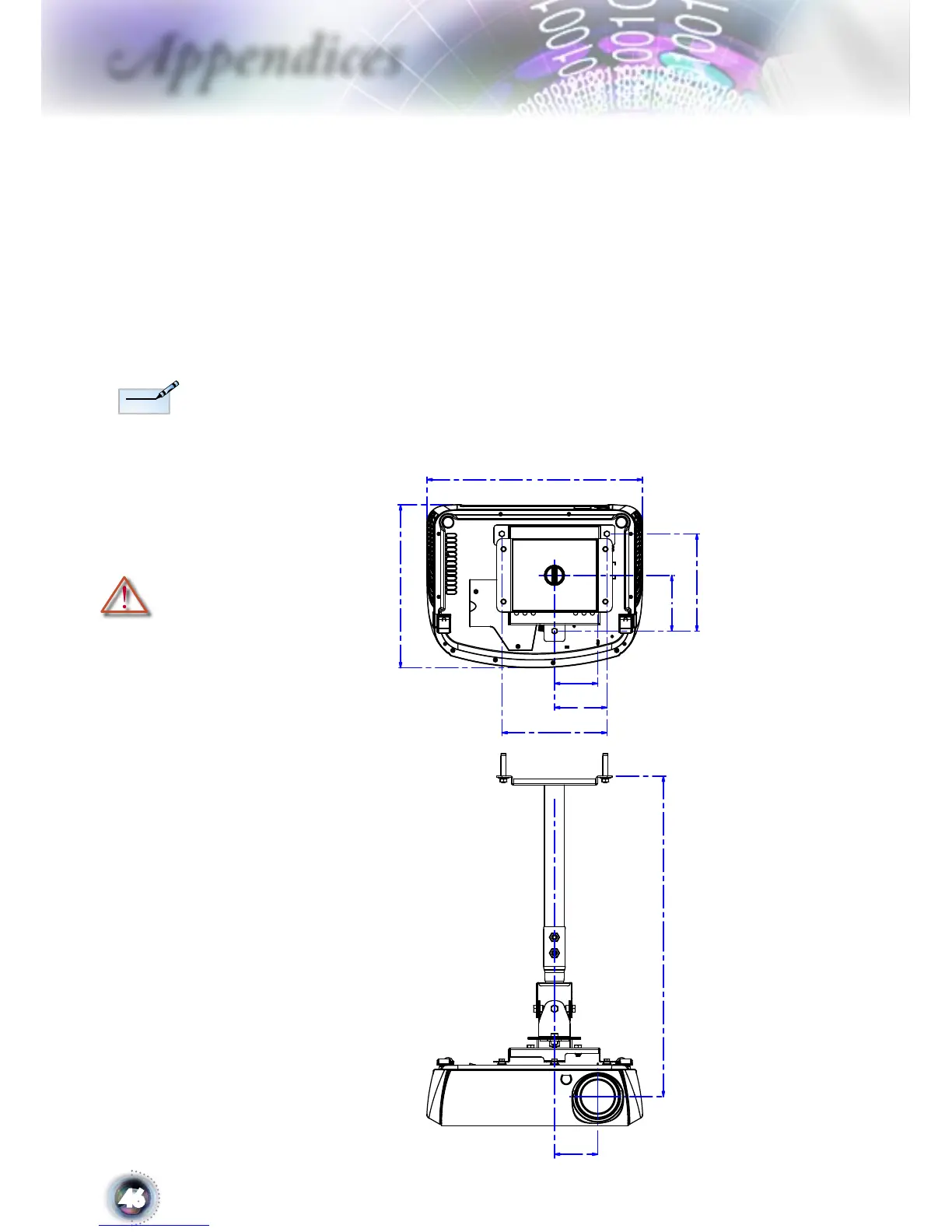

Ceiling Mount Installation
1. To prevent damaging your projector, please use the ceil-
ing mount package for installation.
2. If you wish to use a third party ceiling mount kit, please
ensure the screws used to attached a mount to the projec-
tor met the following specifications:

Screw type: M4

Maximum screw length: 10mm

Minimum screw length: 8mm
Warning:
1. If you buy the ceiling
mount from other
company, please
ensure that there is at
least 10cm distance
between the bottom
cover of the projector
and the ceiling.
2. Avoid placing
the projector near
sources of heat such
air-conditioning
units and heaters
otherwise it may
overheat and shut
down automatically.
3. Ceiling mounting
shall be mounting on
metal or concrete.
Min. 610.60mm
(24.04")
/ Max.
850.60mm
(33.49")
410.99mm
(16.18")
185.00mm
(7.28")
106.00mm
(4.17")
310.62mm
(12.23")
200.00mm
(7.87")
100.00mm
(3.94")
82.50mm
(3.25")
(3.25")
82.50mm
