Installation

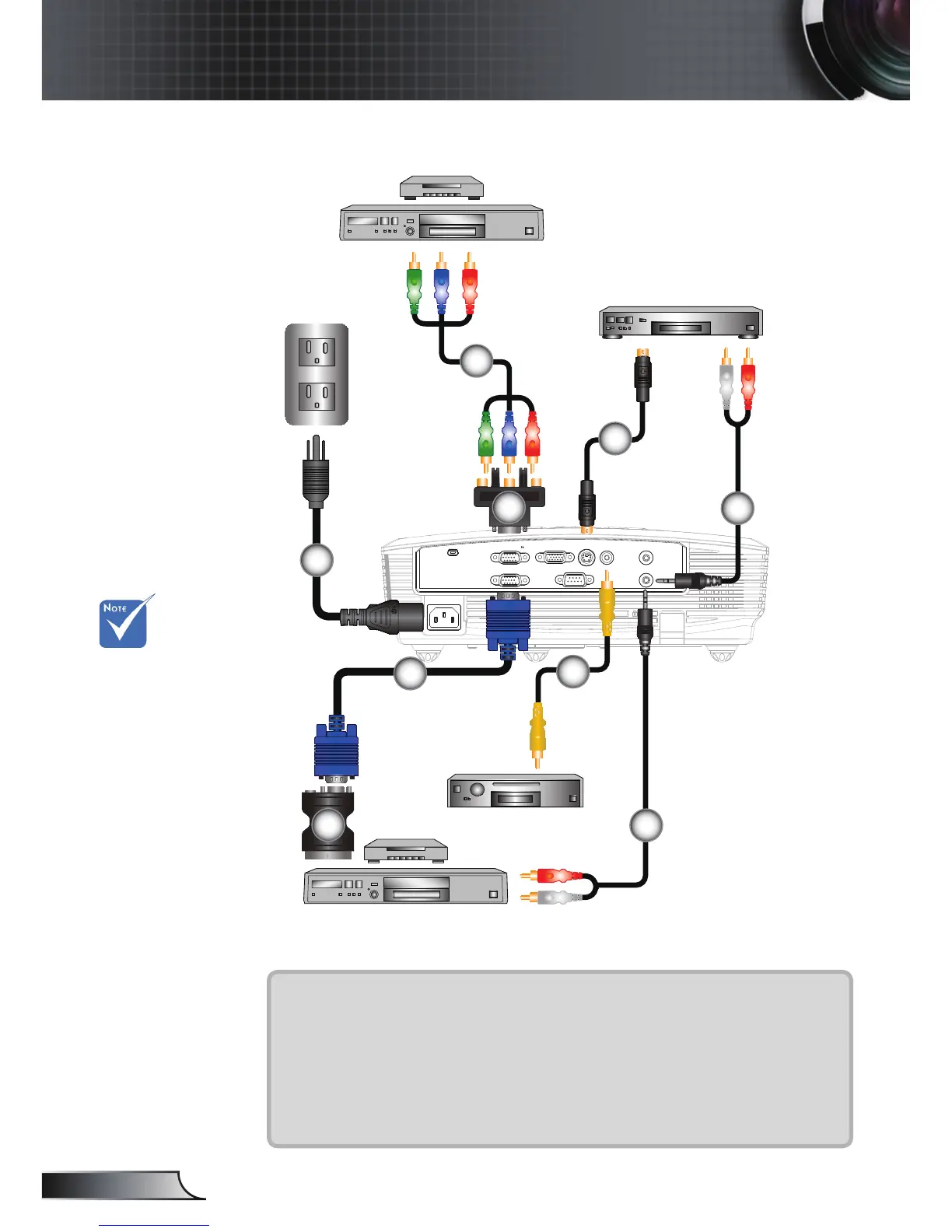

Connect to Video Sources
1....................................................................................................Power Cord
2.....................................................................................................VGA Cable
3................................................................................*Composite Video Cable
4.............................................................................................. *S-Video Cable
5................................................*15-Pin to 3 RCA Component/HDTV Adaptor
6.............................................................................*3 RCA Component Cable
7................................................................................... *SCART/VGA Adaptor
8.................................................................................*Audio Cable Jack/RCA
VGA1-IN / YPbPr/
VGA2-IN /SCART / YPbPr
VGA-OUT
S-VIDEO VIDEO
AUDIO-OUT
AUDIO-IN
RS232
USB
E62405SP
R
Composite Video Output
DVD Player, Set-top Box,
HDTV receiver
S-Video Output
1
3
4
2
7
5
8
8
6
DVD Player, Set-top Box,
HDTV receiver
Due to the
difference in
applications for
each country,
some regions may
have different
accessories.
(*) Optional
accessory
