The SAVE button [Menu: File\ Save as] opens
an explorer window for selection of file name
and location.
The menu item options [Menu: Setup\
Options] enables settings for data protection.
I
MAGE BASED REPORTS

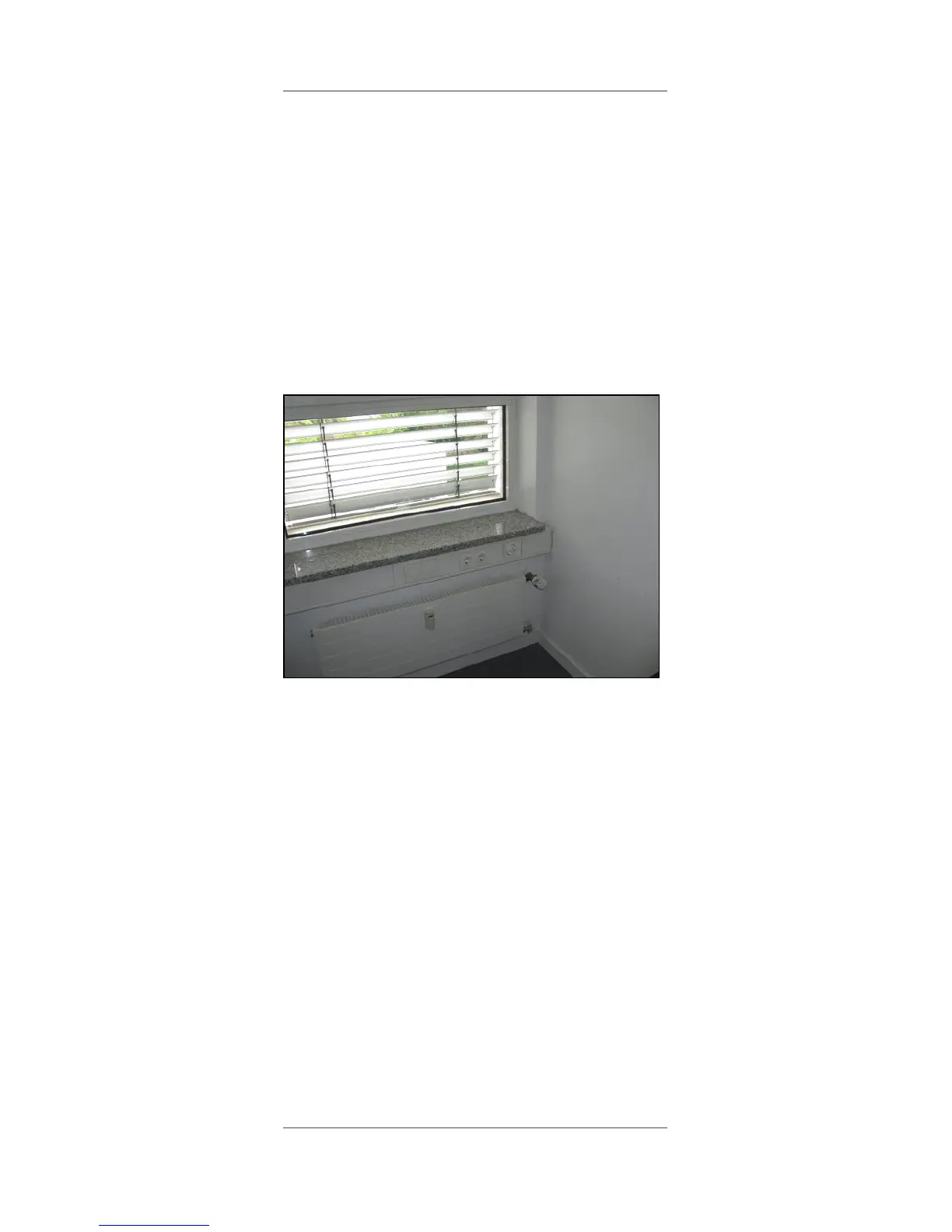

This feature allows an easy creating of reports
showing temperature points inside a digital
picture.
At first you have to make a picture of the
desired object/ scenery using a digital photo
camera (not included in scope of supply).
To create a report you have to do the following
steps:
 Save the picture on your PC
 Open the picture inside the OptrisConnect
software using the Report function
[Menu: File\ Report].
 Connect the MS unit to the PC
 Point to the desired object
 Align the cursor on the picture to the same
location the laser of the MS is showing
 Press the left mouse button
An arrow will now show the location inside the
picture and the measured value.
