optris PI 200 User Manual

-40 -
3.3 Fixing the focus of the lens (only for PI 05M/ 08M/ 1M)
With the PI 05M, PI 08M and PI 1M, it is possible to fix the focus of the lens. To do this, unscrew the
protective tube of the camera (see Figure 5). There are three small holes on the lens. Take the three screws
that are included and attach them to the three holes. The focus of the lens is now fixed. Alternatively, the two
knurled screws supplied can also be used.

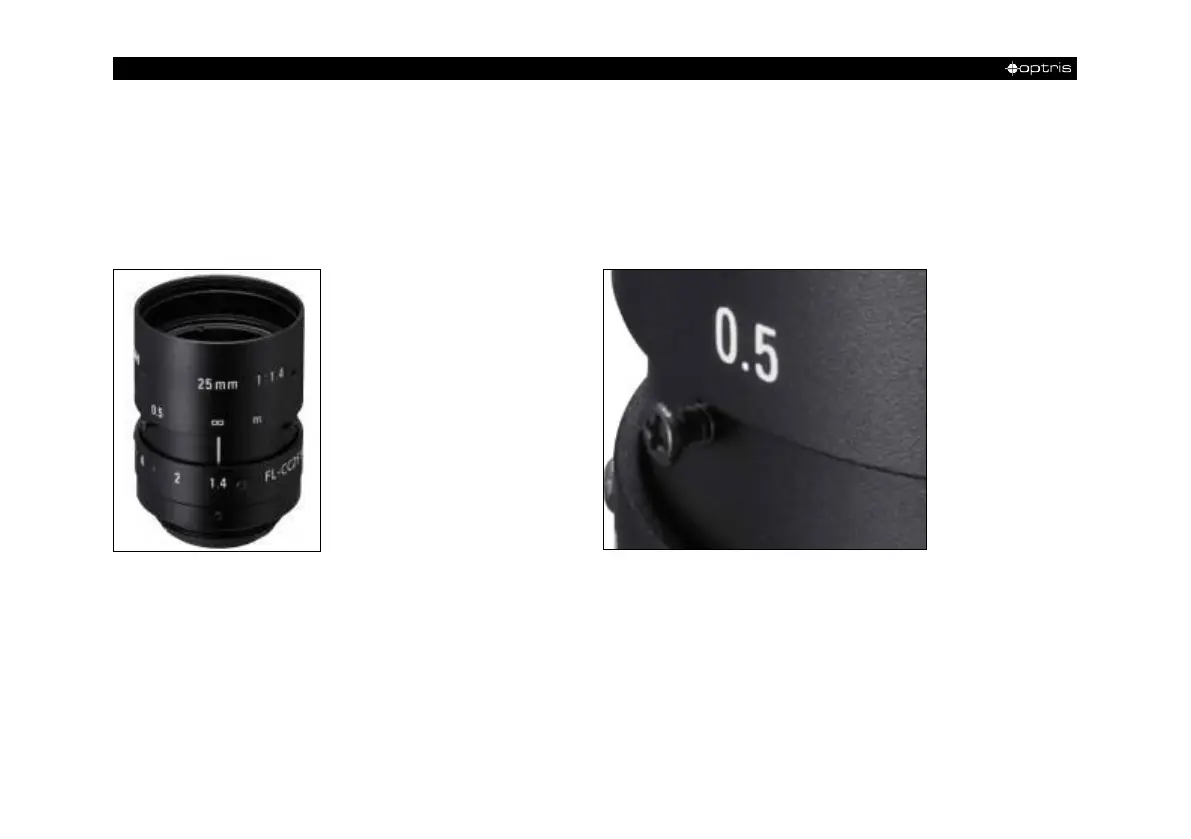

Figure 17: Lens for PI 05M/ 08M/ 1M
Figure 18: Fixing the focus for PI 05M/ 08M/ 1M
