Oracle Database Appliance X7-2M - Oracle Database Appliance X6-2 L Server Status Indicators

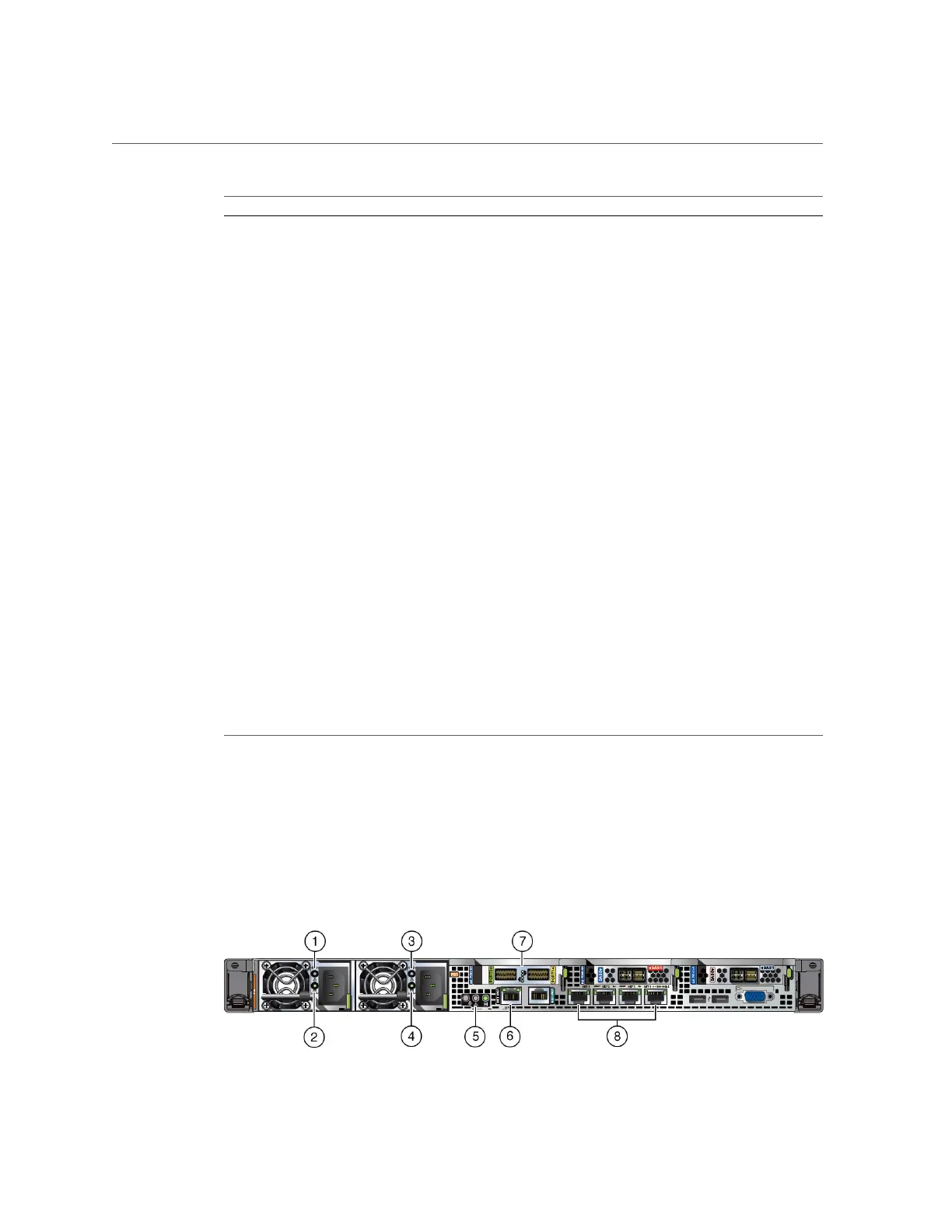

Oracle Database Appliance X6-2S/X6-2M/X6-2L Status Indicators
Callout Indicator/LED: Color State Meaning
Top right link indicator:
■ Off – 10/100BASE-T link (if link up).
■ Amber On – 1000BASE-T link.
■ Green On – 10000BASE-T link.
8 Dual 10 GbE SFP+ PCIe 2.0
Low Profile Adapter ports:
green/amber
1000/10000 BASE-T Ethernet management interface.
GRN=10G:
■ On – Green for 10GbE link; amber for 1GbE link.
■ Off – No function.
ACT/LINK (A or B):
■ On – Green for link up.
■ Off – No link.
■ Blinking – Green for packet activity.
Oracle Database Appliance X6-2L Server Status
Indicators
These topics describe Oracle Database Appliance X6-2L server status indicators (LEDs).
Server Front Panel Status Indicators
The Oracle Database Appliance X6-2L server front panel includes indicators for the system and
storage drives.
Chapter 1 • Overview of System Status Indicators and LEDs 27
