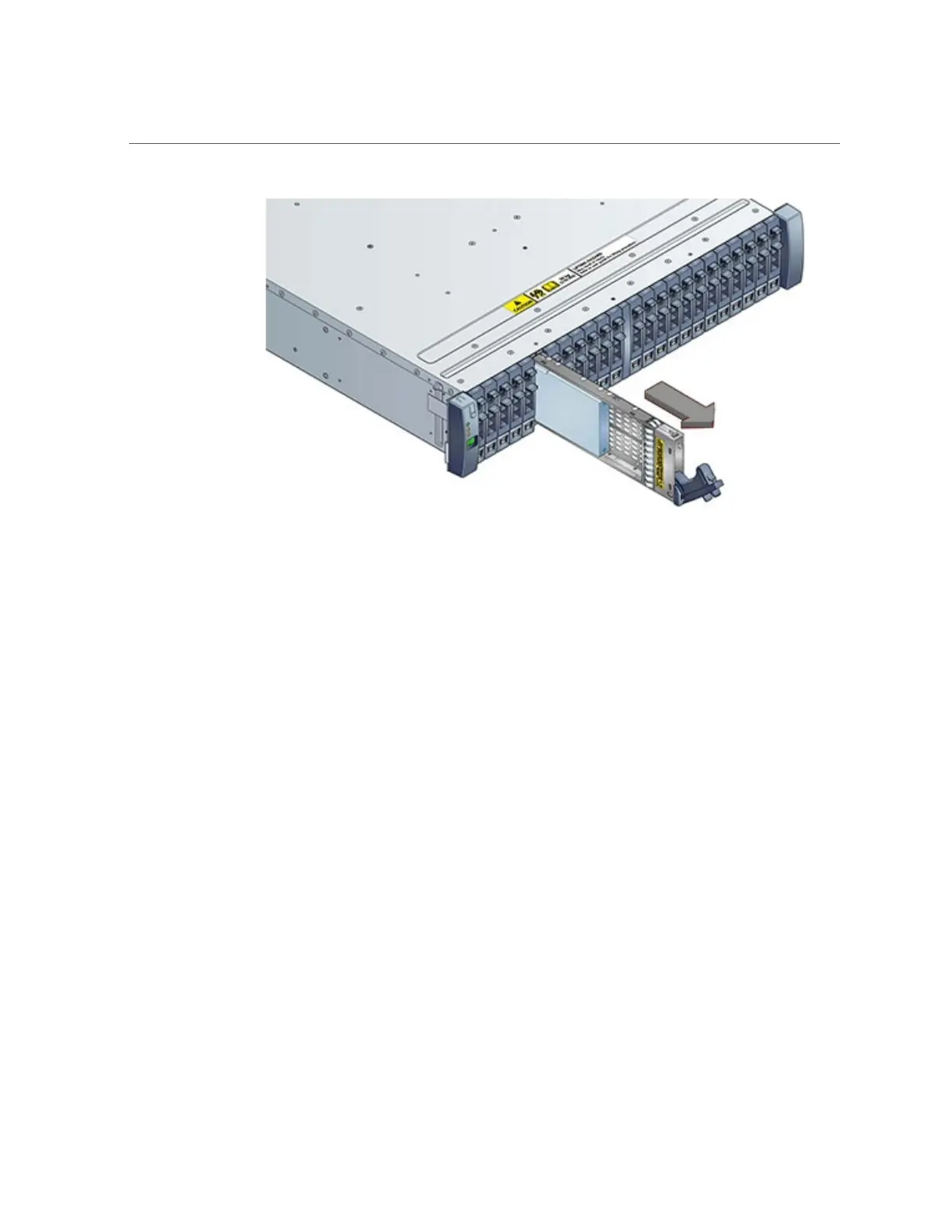

Oracle Database Appliance Version 1 Status Indicators
Ethernet Port Indicators
Each server node in Oracle Database Appliance Version 1 has two host Ethernet ports (NET0
and NET1) and an SP network management port (NET MGT). Each of these has two LEDs that
indicate link activity and port speed.
Callout Indicator/LED: Color State Meaning
1 Link Activity: green Lights to indicate link activity.
2 Link Speed: bi-colored Green – Link established at fastest speed.
Amber – Link established at next fastest speed or slower speeds.
Off – Link at slowest speed, which is 10 Mbps.
60 Oracle Database Appliance Service Manual • November 2017
