The driver can follow the steps to adjust the system of pre-loaded values
(Notice: the system has been pre-set with alert figures. If the driver wants to change the figure,
then follow the professional tire technician’s instruction).
Low Tire Pressure Warning

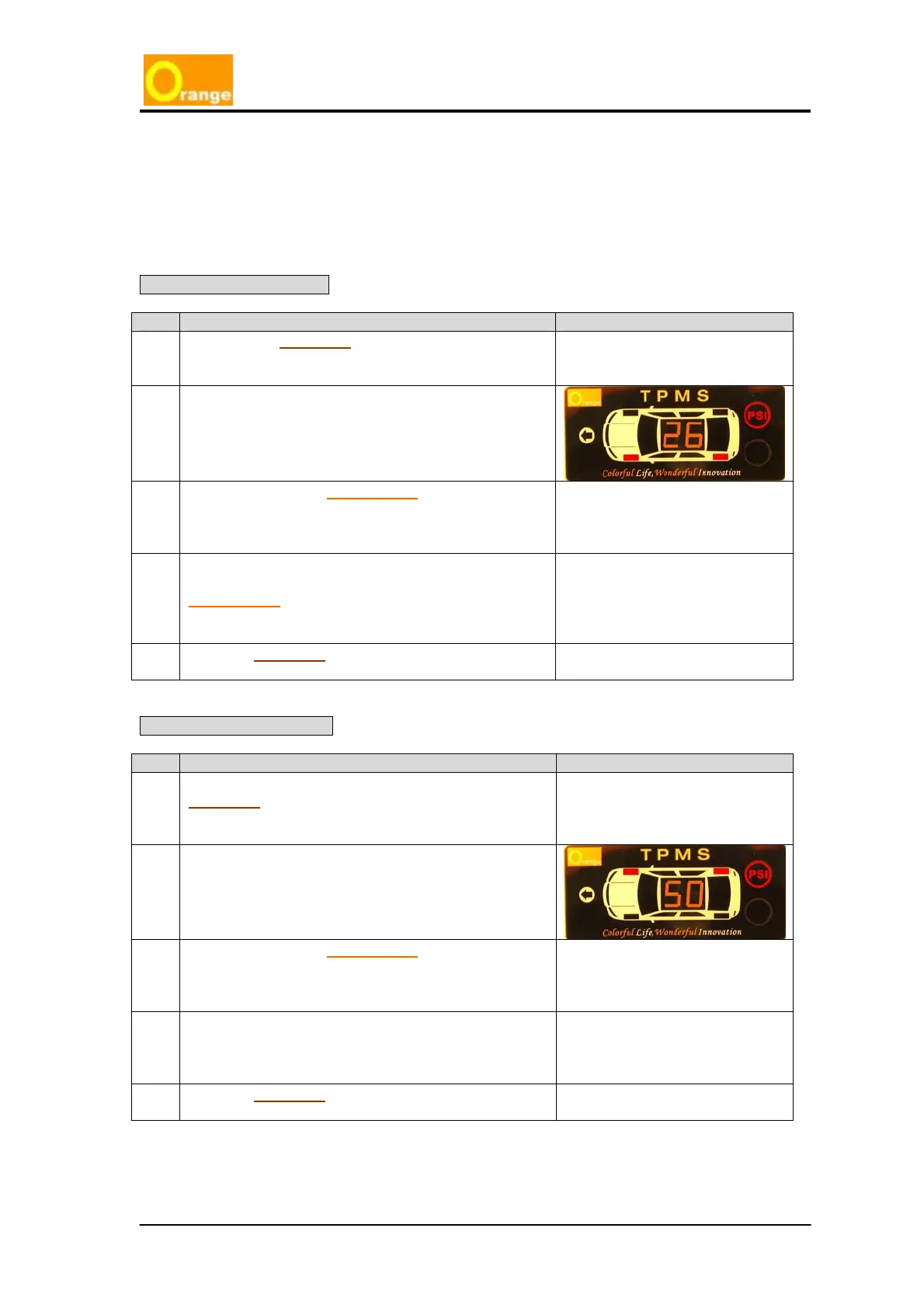

Step Operation process Photograph
1 Pressing the setup key (the brown button) on the
right side of the display unit for over 3 seconds can
change to the low pressure set up mode.
2 The first shown figure is the preset that shows the
low pressure warning (the display will light up the
No. 3 and No. 4 tire red lights, “PSI” and pre-loaded
low pressure figure LED red light).
3 Press the front side function key (the orange
button) to change the lower pressure figure, which
the system uses to warn the driver when the tire
pressure deflates to that figure.
4 The low pressure figure set up range is from 18psi
to 35psi, the driver can continually push the
function key
(the orange button) to adjust the
appropriate low pressure figure; the preloaded
figure is 26psi.
5 Push the setup key (the brown button) to complete
the low pressure setting operation.
High Tire Pressure Warning
Step Operation process Photograph
1 After setting up the low pressure figure, press the
setup key
again (the brown button) on the right
side of the display unit. The unit will display the
high pressure set up mode.
2 The first shown figure is the preset that shows the
high pressure warning (the display will light up No. 1
and No. 2 tire red lights, “PSI” and preloaded high
pressure figure LED red light).
3 Press the front side function key (the orange
button) to change the high pressure figure, which
the system uses to warn the driver when the tire
pressures deflates to that figure.
4 The high pressure figure set up range is from 40psi
to 60psi, the driver can continually push the function
key (the orange button) to adjust the appropriate
low pressure figure; the preloaded figure is 50 psi.
5 Push the setup key (the brown button) to complete
the low pressure setting operation.
