Manual for Orange’s Tire Pressure Monitoring Systems, TPMS
11/14 www.orange-electronic.com
Orange Electronic Co., Ltd
Replacing the Tire Pressure Sensor
This section describes what to do when one or more tire sensors are broken or the battery is
drained. This procedure is similar to the tire repositioning process

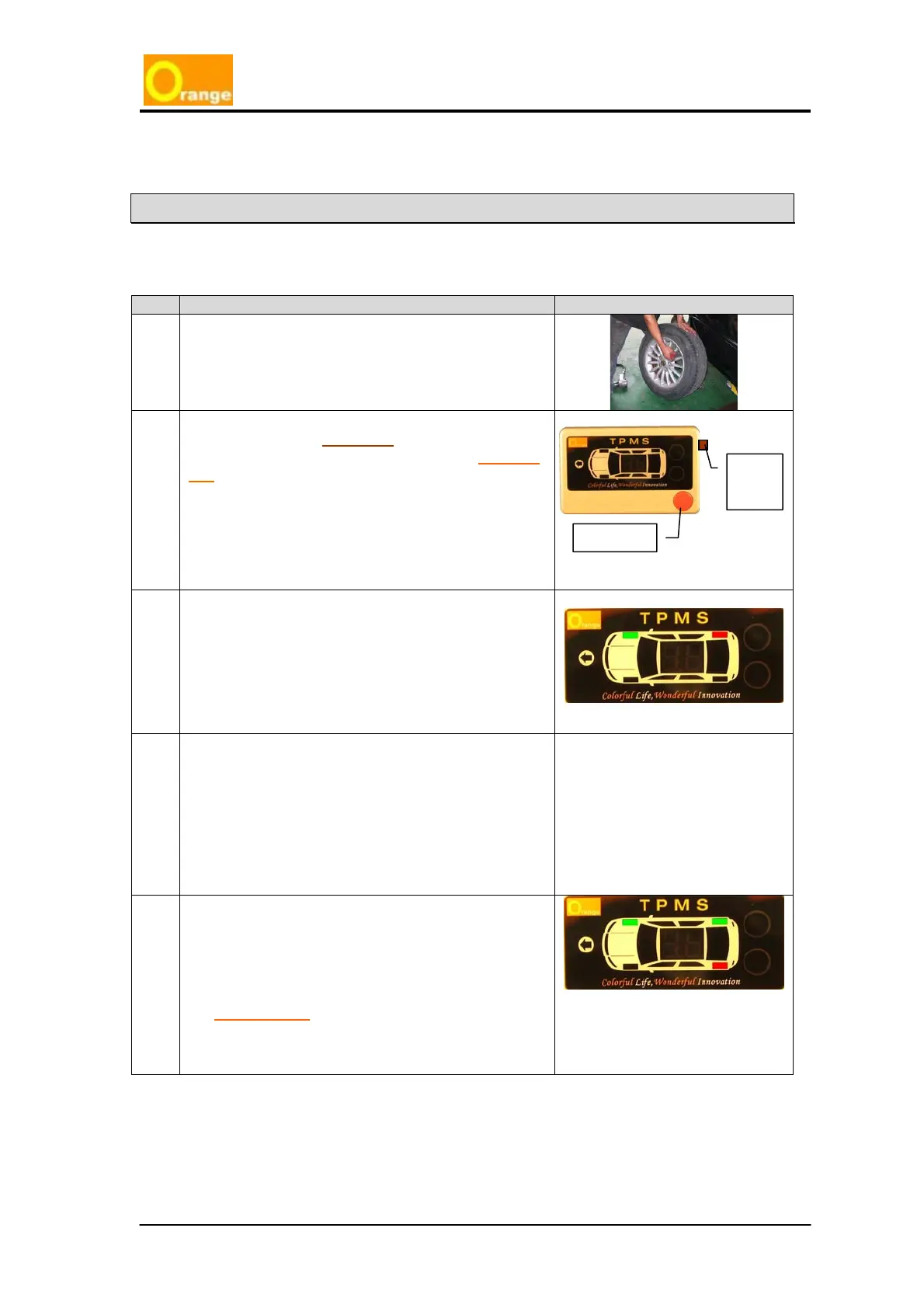

Step Operation process Photograph
1 Take off the broken tire sensor from the tire and
install a new Orange replacement sensor.
Notice: Other brands cannot be used.
2 First access the replacement part mode.
Press and hold the setup key
(the brown button),
within 3 seconds simultaneously push the function
key (the orange button). Both buttons should be
pushed and held for 10 seconds or until you hear a
beep. The moment you push the two buttons
together the display will flash green and red.
After hearing the beep, the system has successfully
entered into the replacement mode and you can
release the buttons.
3 Push the function key (the orange button) to
select which tire sensor ID needs to be
changed. The sequence of pushing the function
key is as follow:
Right_Front (does not need to be clicked)->
Right_Rear (click 1 time) -> Left_Rear (click 2
times) -> Left_Front (click 3 times)
4 Deflate the tire that had the broken sensor (the tire
you just installed a new sensor on) until the
pressure is under 18psi. (Do not deflate the air
pressure to lower than 5psi). Then re-inflate the tire
to the standard tire pressure (must be over 22psi),
and wait for 15 seconds, the system will
automatically setup the new replacement tire ID of
sensor in the system.
5 Check the display, the display must show the green
light in new replacement tire (originally was shown
in red before replacement). The next sequence of
tire will be shown the red. (Wait for the display to
change to the next tire ID). If the next tire sensor is
not needed, then just ignore the red light and click
the function key
(the orange button) until logged
out of the replacement mode. The replacement
part is now successfully installed and will start to
monitor your tire pressure and temperature.
Function-key
Set-
up-
key
