BLUE PAPER KERAM BOSCH GEN4 202018 | ORBEA ORBEA | 19 TECHNICAL MANUAL
12.2
12.4
12.8
12.5
12.1
12.6
12.7
12.10
12.9
12.3

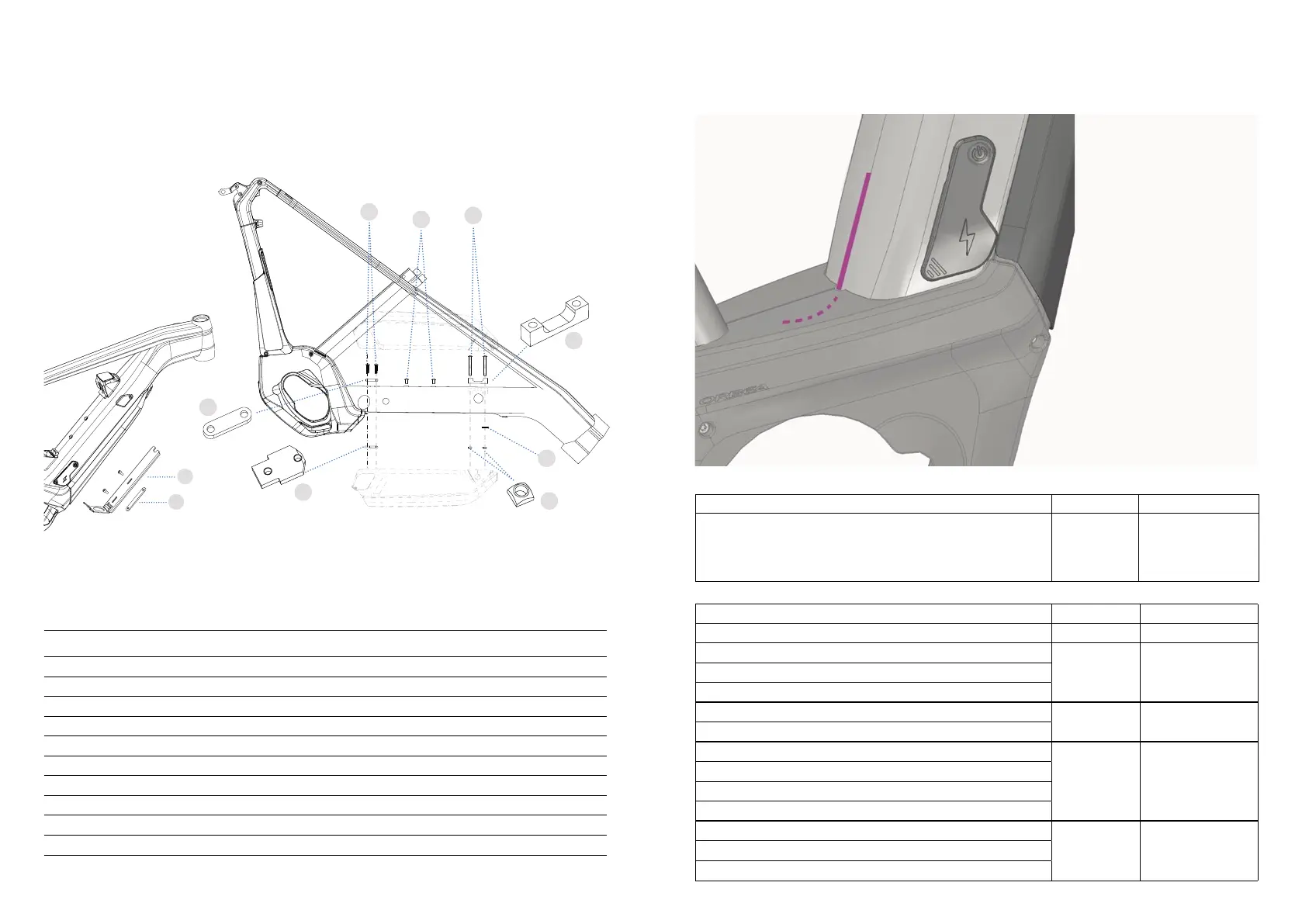

DUAL BATTERY ASSEMBLY HARDWARE KIT
BOSCH OR ABUS COMPONENTS NOT INCLUDED
12 KIT Nº: Y0000230 QUANTITY
12.1
U SHAPED TOP BATTERY BRACKET SPACER 1
12.2 BOTTLE HOLDER PLATE DUAL BATTERY 1
12.3 THREADED PLATE BOTTLE HOLDER 1
12.4 BOLT M5x20 2
12.5 BOLT M5x45 2
12.6 M5 SQUARE NUT 2
12.7 M5 TOOTHED WASHER 1
12.8 BOLT M5x15 BOTTLE HOLDER 2
12.9 THREADED BATTERY LOWER MOUNT PLATE 1
12.10 SPACER 6,5mm LOWER BATTERY BRACKET. 1
* Not included. Already on bike or on internal battery hardware kit.
ABUS COMPONENTS REFERENCE DESCRIPTION
POWERPACK LOCK PLUS + KEY
When ordering the new lock, facilitate your abus distributor the
Key number on your wild fs so the new lock is made to match the key,
Enabling you to use the same key for both batteries.
33261 BLO BOS DT2 PLUS
BOSCH COMPONENTS REFERENCE DESCRIPTION
STANDARD BATTERY CABLE 1.270.015.067 Battery Cable Standard
LOWER POWERPACK BATTERY HOLDER LEFT
0.275.007.425 Battery holder kitLOWER POWERPACK BATTERY HOLDER RIGHT
SCREW 3,5x12 (x2)
ALUMINUM BRACKET HOLDER
0.275.007.426
Mounting set for bracket
battery frame
BATTERY BRACKET BOLT (x2)
PLASTIC CASING LOCK TOP
1.270.020.605
Kit plastic casing lock
frame
PLASTIC CASING LOCK BOTTOM
SCREW 3,5x12 (x1)
BOLT M5x12 (x2)
CABLE "Y" DUAL BATTERY 515/430mm
0.275.007.930
Bosch Dual Battery
Y-Adapter kit
CHARGING SOCKET BLANK PLUG (x2)
TAPÓN PIN SOPORTE BATERÍA
It is necessary to cut the motor protector
To allow clearance for the external battery cable.
