BLUE PAPER KERAM BOSCH GEN4 202016 | ORBEA ORBEA | 17 TECHNICAL MANUAL

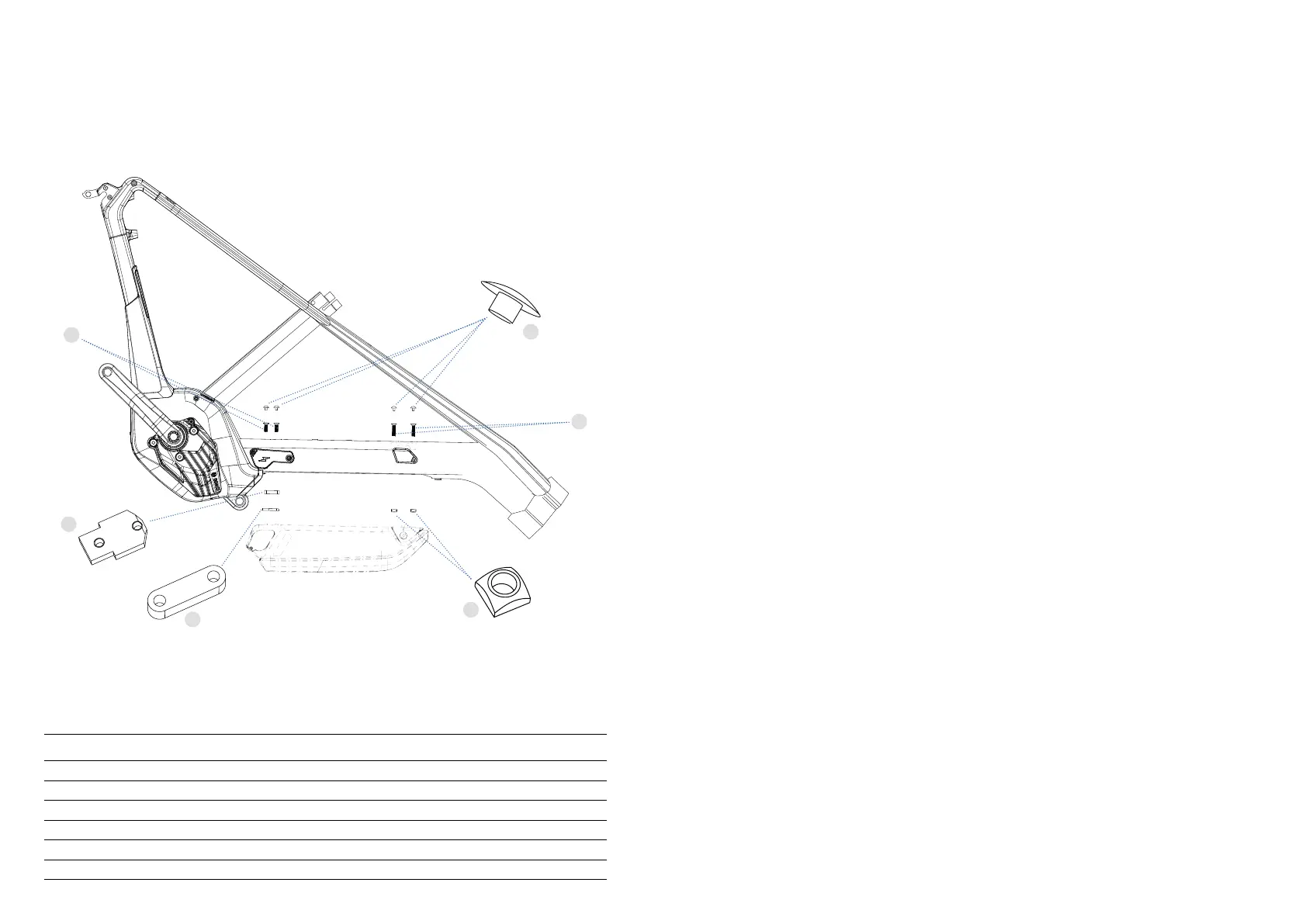

INTERNAL BATTERY ASSEMBLY
INTERNAL BATTERY ASSEMBLY HARDWARE KIT
BOSCH OR ABUS COMPONENTS NOT INCLUDED.
11 KIT Nº: Y0000229 QUANTITY
11.1
THREADED BATTERY LOWER MOUNT PLATE
1
11.2
SPACER 6,5mm LOWER BATTERY MOUNT
1
11.3
BOLT M5x18
2
11.4
BOLT M5x30
2
11.5
M5 SQUARE NUT
2
11.6
RUBBER ALLEN BOLT HEAD COVER
4
11.1
11.4
11.6
11.3
11.2
11.5
DUAL BATTERY ASSEMBLY
The complete external battery connection kit is only available as an option when purchasing a
keram from Orbea.
For bikes that were purchased with the internal battery only, Orbea will facilitate the compo-
nents that are Orbea´s own and specic to the Keram frame for the installation of the external
battery. These items are included in the kit Y0000230.
The electric components, like cables and powerpack battery brackets, as well as the locks, may
be purchased through a Bosch or Abus distributor. These components are in the next page.
Contact your Abus and Bosch ebike dealer to know the exact list of components needed for the
installation of a powerpack dual battery system.
The installation of these components needs an advanced mechanical and electrical knowledge
and can only be performed by a certied Orbea dealer.
The use of a dual battery requires the electric system to be updated for the correct operation of
all components. This update must be carried out by a Bosch ebike dealer.
The dual battery option is not compatible with size S Keram frames.
The aftermarket assembly of the dual battery option is only compatible with Keram frames
equipped with a Bosch Gen4 motor. Orbea cannot guarantee the components compatibility on
Keram frames with a Bosch GEN3 motor.
