BLUE PAPER KERAM BOSCH GEN4 202014 | ORBEA ORBEA | 15 TECHNICAL MANUAL
To internal battery´s downtube lower connector.
Battery cable
connector
HMI connector: Display
Speed sensor
connector
To front on the bike throught
downtube to display.
Below the left chainstay
to speed sensor xing point.
TORQUE SETTING: 30Nm
ALL CONNECTIONS ARE MADE ON THE NON-DRIVE
SIDE OF THE MOTOR

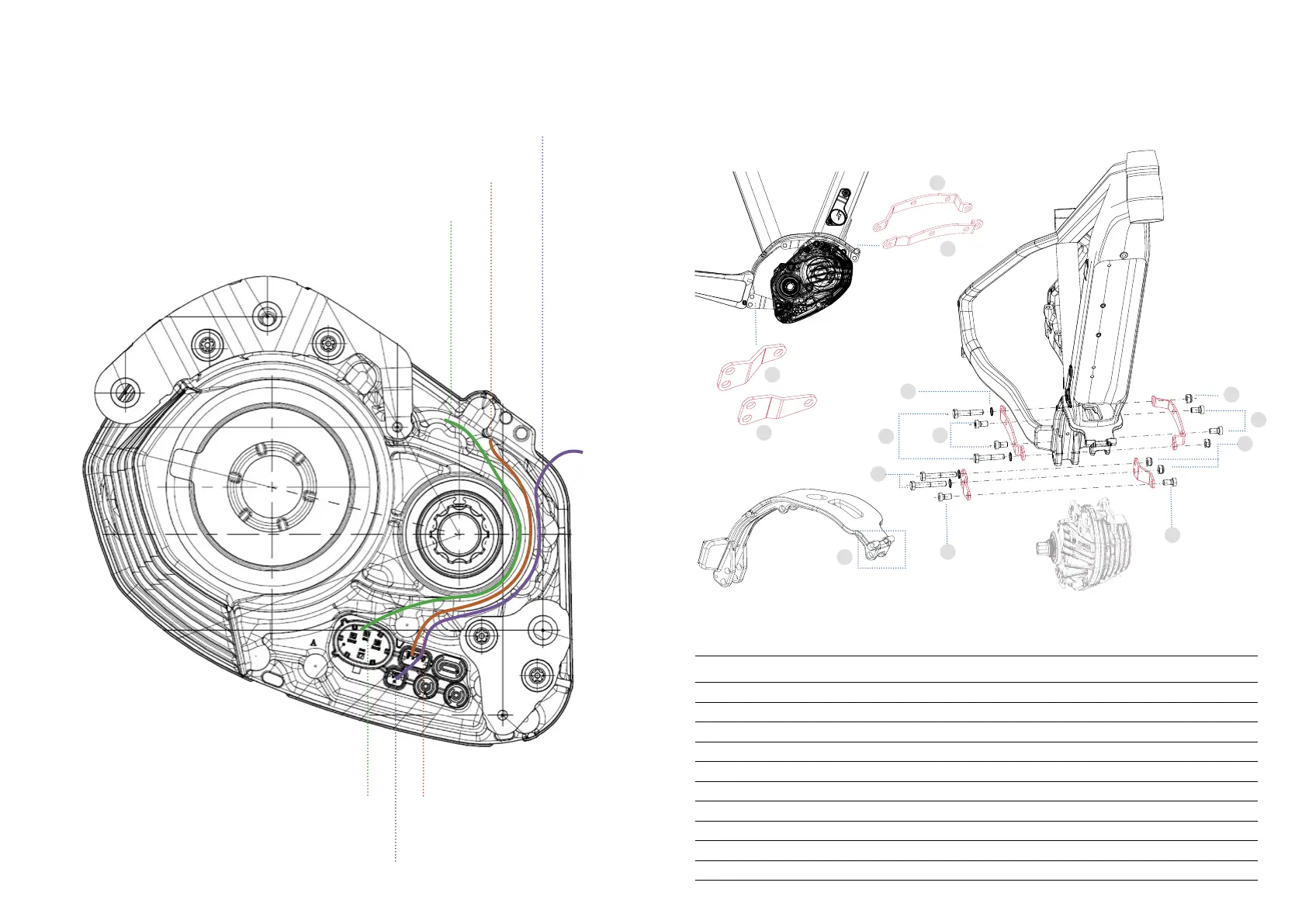

BOSCH GEN4 MOTOR ASSEMBLY
BOSCH GEN4 MOTOR ASSEMBLY KIT
10 KIT Nº: Y0000228 QUANTITY
10.1
BOSCH G4 ASSEMBLY PLATE LONG LEFT
1
10.2
BOSCH G4 ASSEMBLY PLATE LONG RIGHT
1
10.3
BOSCH G4 ASSEMBLY PLATE SHORT LEFT
1
10.4
BOSCH G4 ASSEMBLY PLATE SHORT RIGHT
1
10.5
NUT M8
4
10.6
BOLT M8x55
2
10.7
BOLT M8x50
2
10.8
BOLT M8x16
6
10.9
TOOTHED WASHER M8
4
10.10
SPACER 20.2mm
2
10.1
10.2
10.3
10.4
10.5
10.8
10.8
10.8
10.6
10.9
10.7
10.8
10.5
10.10
