Orbea LAUFEY H LTD User Manual

TECHNICAL MANUAL BLUE PAPER LAUFEY 20204 | ORBEA ORBEA | 5
SIZE S M L XL
1 - Seat Tube (C-T) 381 432 470 521
2 - Top Tube (EFF) 578 606 632 662
3 - Head Tube 95 100 110 130
4 - Chainstay 435 435 435 435
5 - BB Height 313,5 313,5 313,5 313,5
6 - BB Drop 65 65 65 65
7 - Wheelbase 1146 1174 1202 1235
8 - Head Angle 65,5º 65,5º 65,5º 65,5º
9 - Seat Angle 678 714 726 763
10 - Standover 75º 75º 75º 75º
11 - Reach 409 435 459 484
12 - Stack 632 636 645 664
13 - Fork Length 547 547 547 547

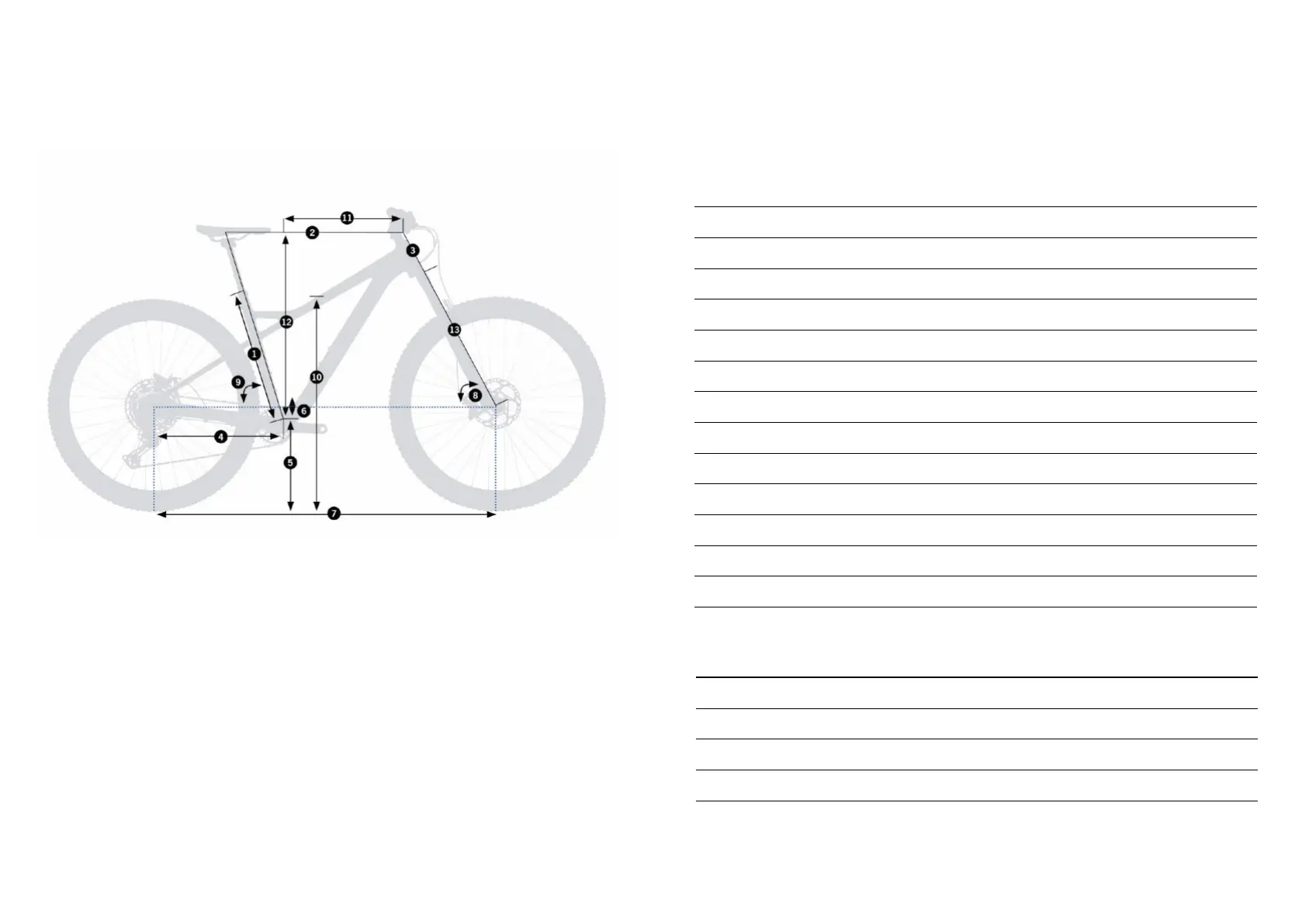

GEOMETRY & ERGONOMY
HEIGHT (CM) HEIGHT (IN) SIZE
150-165 59.1”-65.0” S
160-175 63.0”-68.9” M
170-185 66.9”-72.8” L
180-198 70.9”-78.0” XL
* Estimated measurements.
