TECHNICAL MANUAL BLUE PAPER LAUFEY 20208 | ORBEA ORBEA | 9

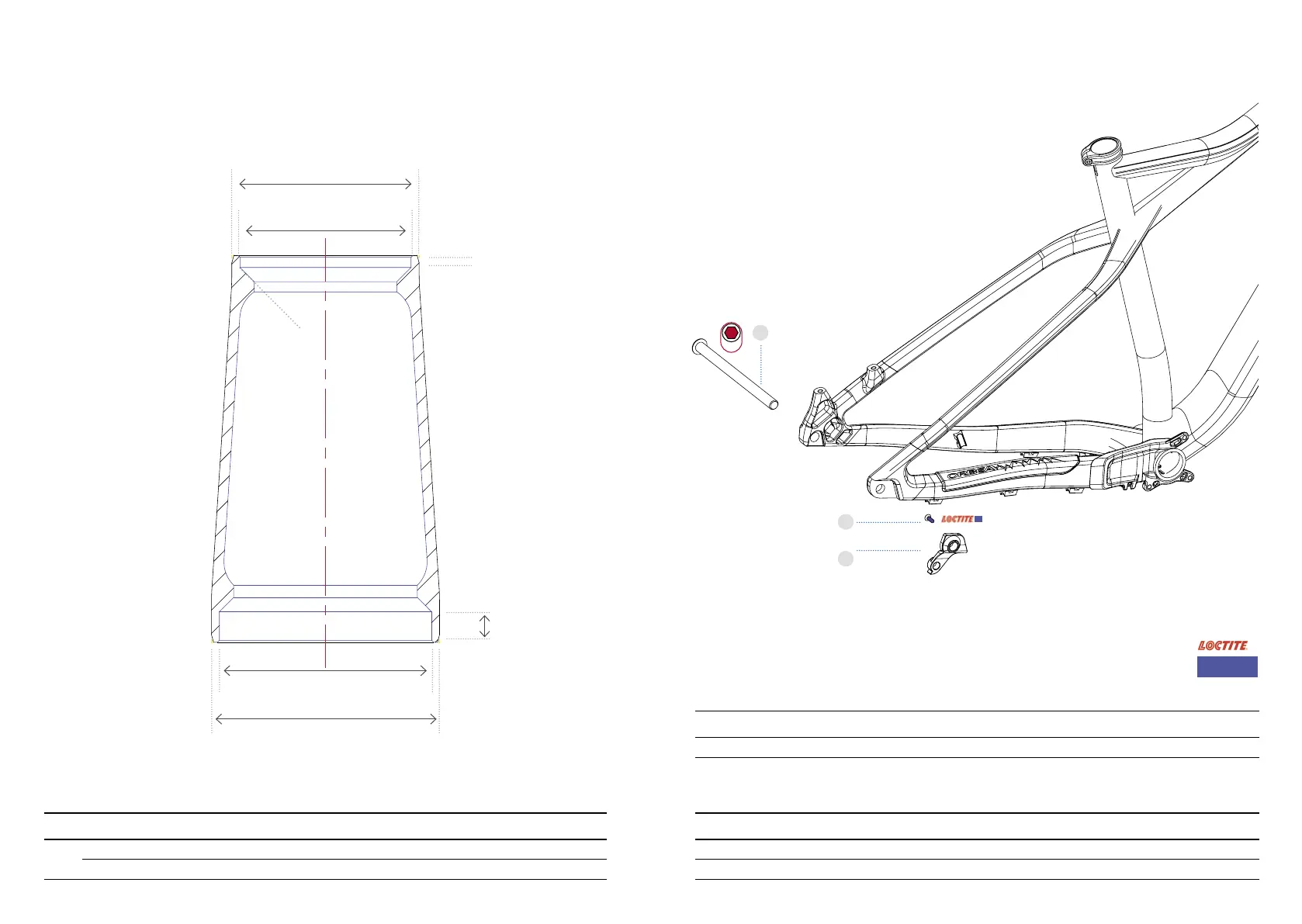

HEADTUBE REAR AXLE
LAUFEY 2020 HEADSET KIT
KIT Nº: Y0000127 QUANTITY
HEADSET MTB ACROS 1 1/8-1,5 INTEGR. 1
TOPCAP+STARNUT ACROS 1 1/8 1
DERAILLEUR HANGER KIT LAUFEY 2020
02 KIT Nº: Y0000144 QUANTITY
2.1
BOLT M4x15 1
2.2
DERAILLEUR HANGER LAUFEY X12 1
REAR AXLE
01 ART Nº: 11100065 QUANTITY
REAR AXLE 12x179x1.25 1
45º
3
7,5
Ø 42
Ø 52,1
Ø 56
Ø 46
1
2.1
2.2
6
10 Nm
Serie 200
