Orbea RALLON User Manual

TECHNICAL SPECIFICATIONS
9

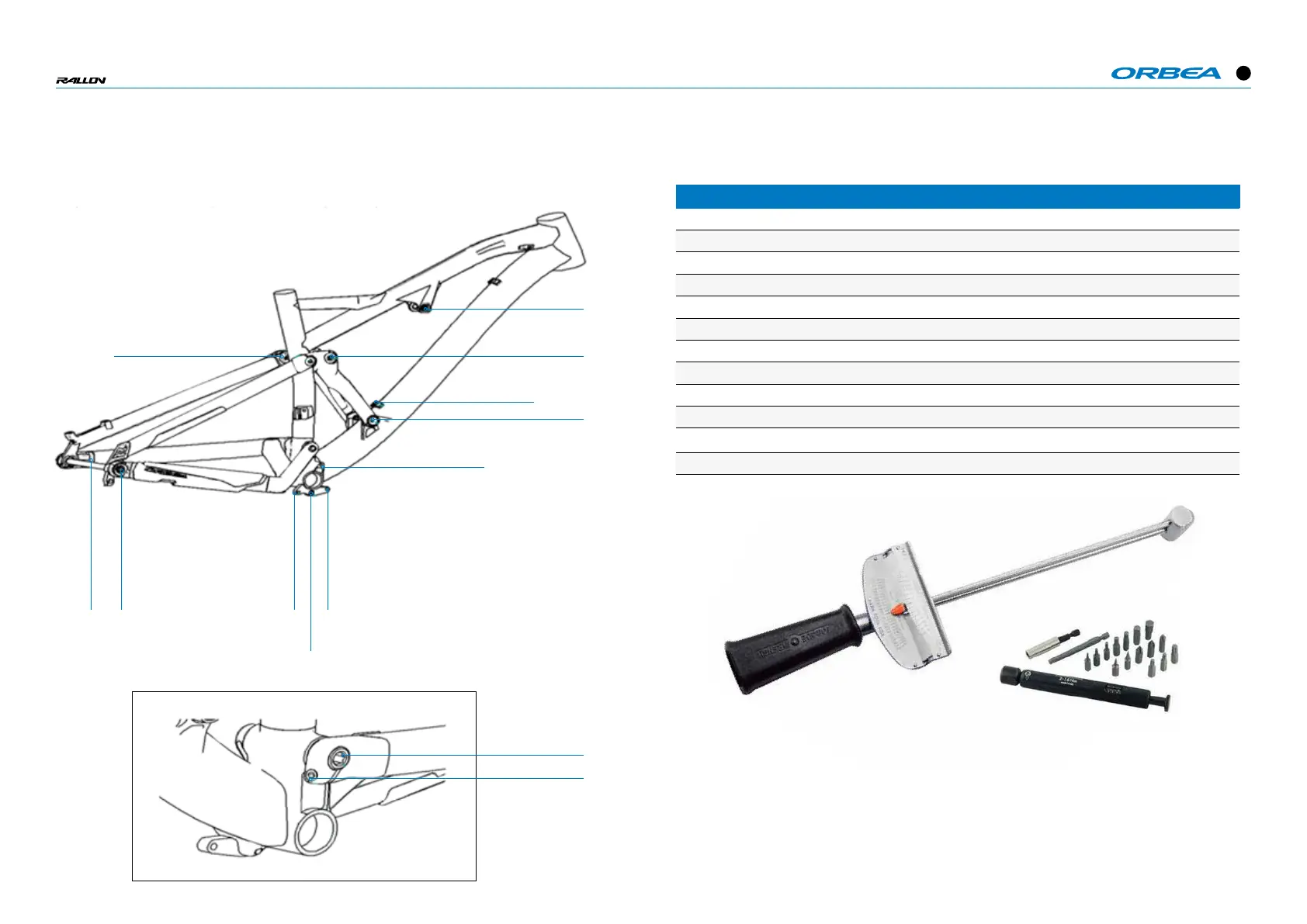

TORQUE SPECS
RALLON TORQUE SPECIFICATIONS
Fastener Required tools Torque Note
1 Dropout nut 22 mm spanner 15 Nm
2 12 mm axle 6 mm allen 20 Nm
3 Seatstay/link bolt 5 mm allen 15 Nm
4 Shock/link bolt 8 mm + 5 mm allen 15 Nm
5 Shock/front triangle bolt 4 mm allen 6 Nm
6 Cable guide 4 mm allen 4 Nm
7 Link/front triangle bolt 5 mm allen 15 Nm
8 ISCG bolts
-
10 Nm
9 ISCG adapter bolt 5 mm allen 10 Nm
10 Main pivot axle 10 mm allen 20 Nm
11 Main pivot pinch bolt 5 mm allen 10 Nm
CHECKING AND ADJUSTING TORQUE
Orbea suggest using a TORQUE WRENCH to avoid
overtightening and damaging fasteners or hardware.
Check torque frequently and keep all threads clean
and properly greased to ensure accurate torque me-
asurement...
2 1 8 8
8
3
7
4
5
6
9
10
11

Orbea RALLON Specifications

General

Wheel Size	29"
Suspension	Full Suspension
Frame Material	Carbon
Category	Enduro
Intended Use	Enduro
Brakes	Shimano or SRAM (various models)
