for assembling; before assembling please check whether all needed parts are available.
It is strongly recommended this machine to be assembled by two or more people to avoid possible injury.
ASSEMBLY INSTRUCTION

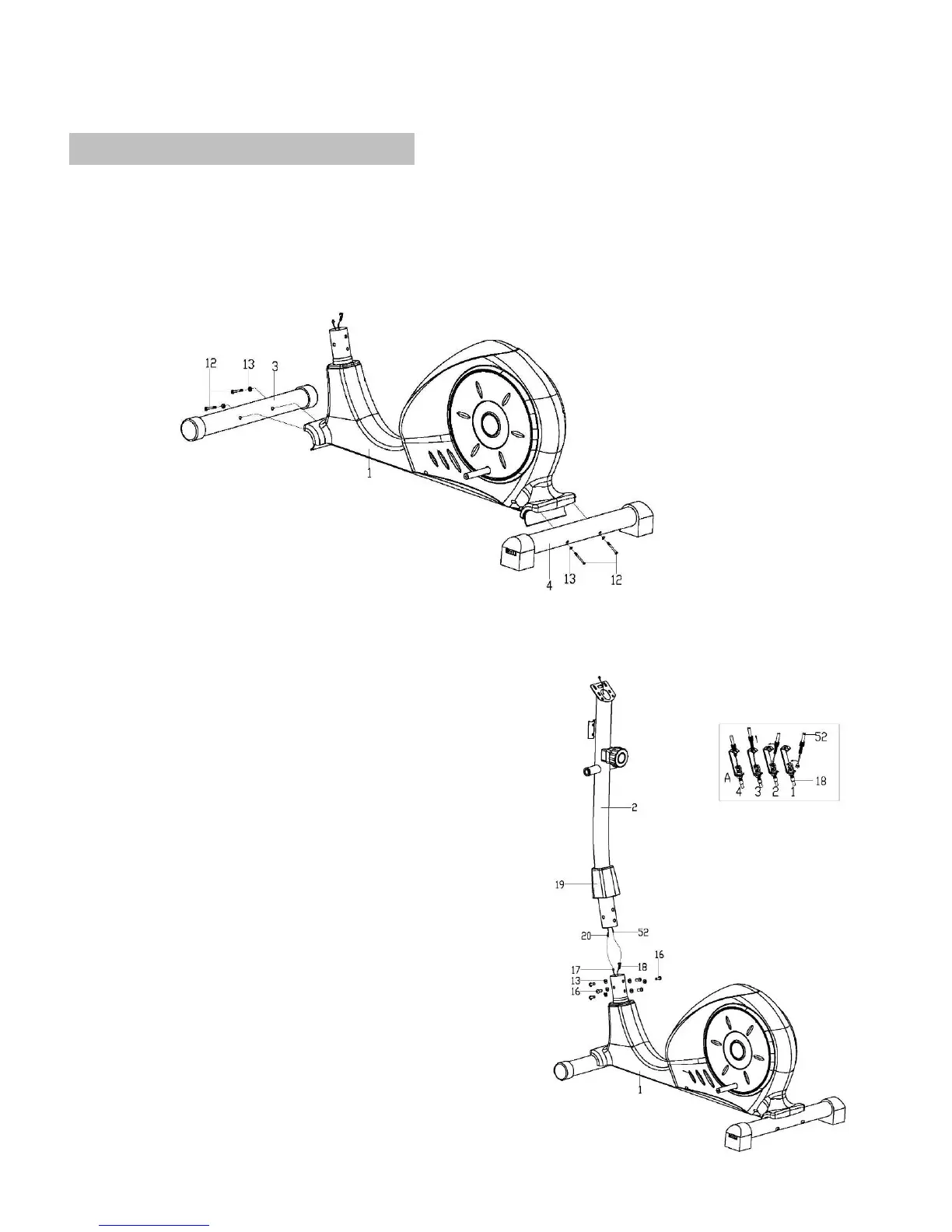

STEP 1
Attach the front stabilizer (3) and the rear stabilizer (4) to the main frame (1) with the Carriage bolt
(12) and Arc washers (13) as shown.
STEP 2
I: Slip the Front Cover (19) onto the handlebar
post (2);
II: Connect the Sensor connection wire (20) to the
sensor wire (17), and then install the lower tension
control cable (18) to the tension controller (52) as
shown.
III: Fix the handlebar post (2) on the main frame
(1), using the Inner hexagon bolt (16), Arc washer
(13) as shown.
IV: Slip down the Front Cover (19) and fit in the
place.
Page 5
