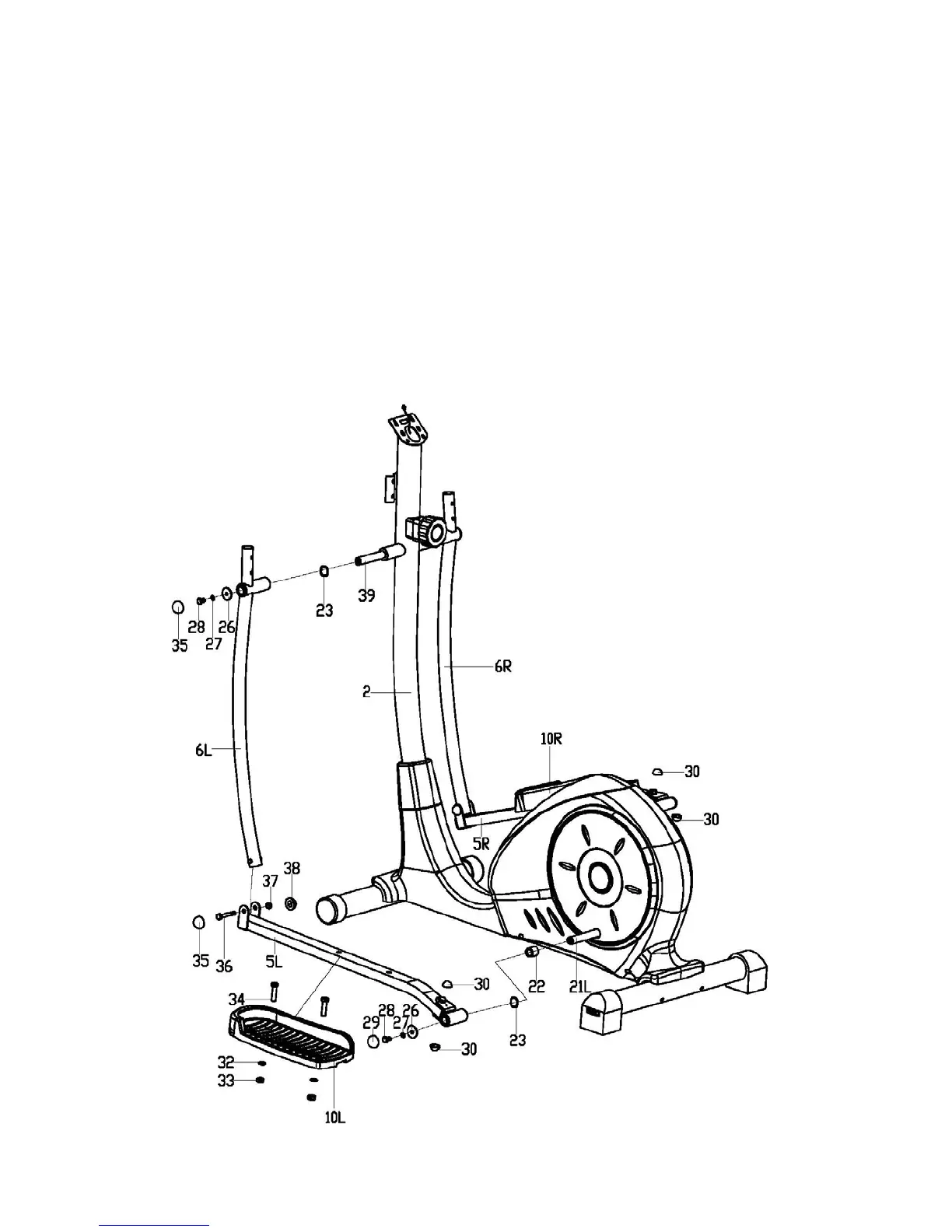

STEP 3
Attach the left and right Swing tube (6L/R) to the shaft on Handlebar post (2) with Bolt (28), Spring
washer (27), Wave washer (23) and Flat washer (26), and Long axle（39）But don’t tighten them
first.
Attach the Left Pedal support (5L) to the Crank (21L) with Bolt (28), Spring washer (27), Spacer (22),
Flat washer (26), and Wave washer (23), don’t tighten them first. The same way fix the Right Pedal
support (5R) to the Crank (21R)
Connect the Swing tube (6L/R) and Pedal support (5L/R) with Bolt (36), and Nylon nut (37), tighten
the Bolt (28) and Bolt (36), and then cover Round cap (29), Round cap(30), Round cap(35), and
Round cap (38).
Attach the Pedal (10L/R) to the Pedal support (5L/R) with hex bolt (34), flat washer (32) and Nylon
nut (33).
Page 6
