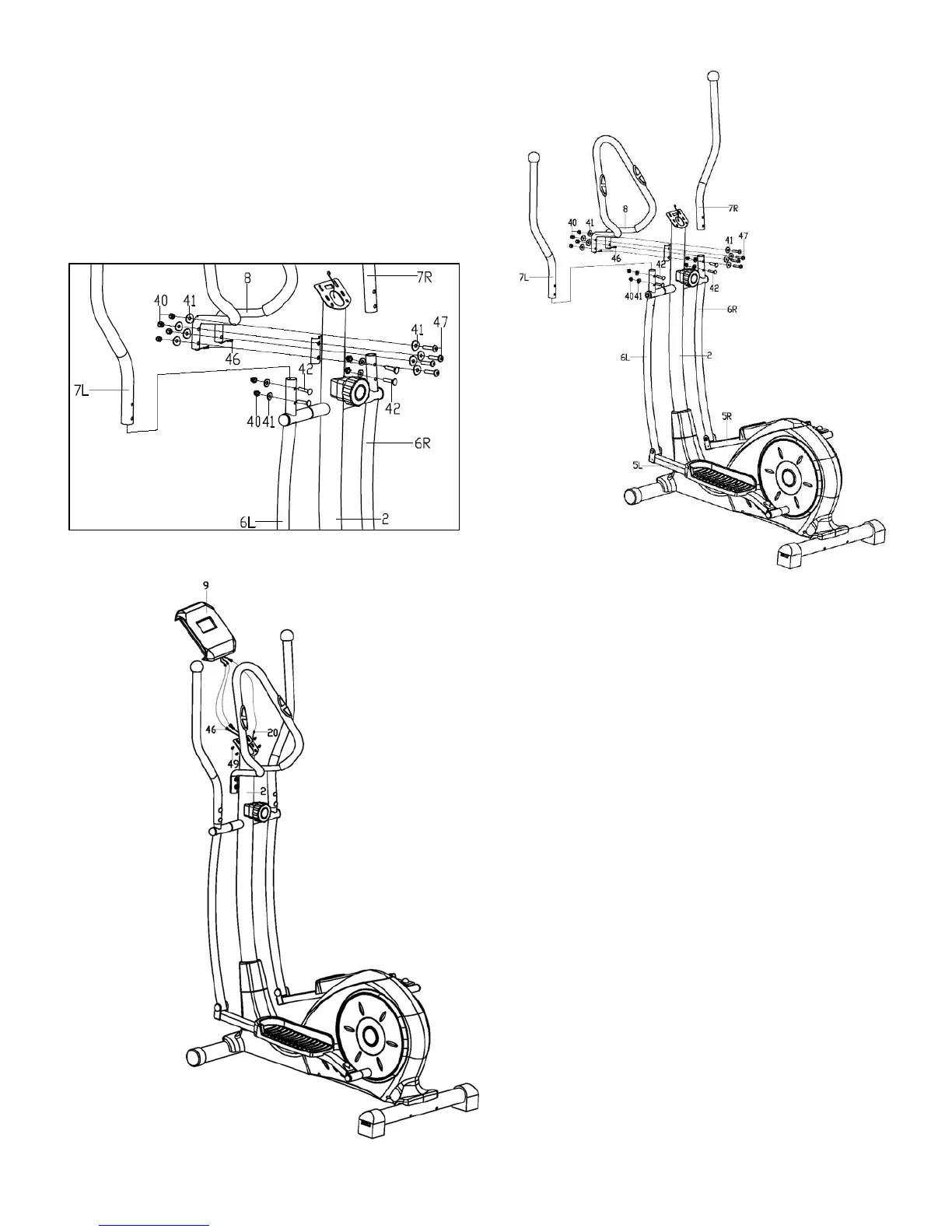

STEP 4
Through the Pulse sensor wire (46) to the
handlebar(2) and then attach the handrail (8) the
handlebar(2) with hex bolt(47)，arch washer(41)
and nut(40).
Attach the handlebar (7L/R) to the swing tube (6L/R)
with bolt (42)，arch washer (41) and nut (40).
STEP 5
Connect the Connection wire (20)
and pulse sensor wire (46) with the
wire of the computer (9), and then
attach the computer (9) to the
handlebar (2).
Page 7
