Setting up the T12
1. Connect subwoofer

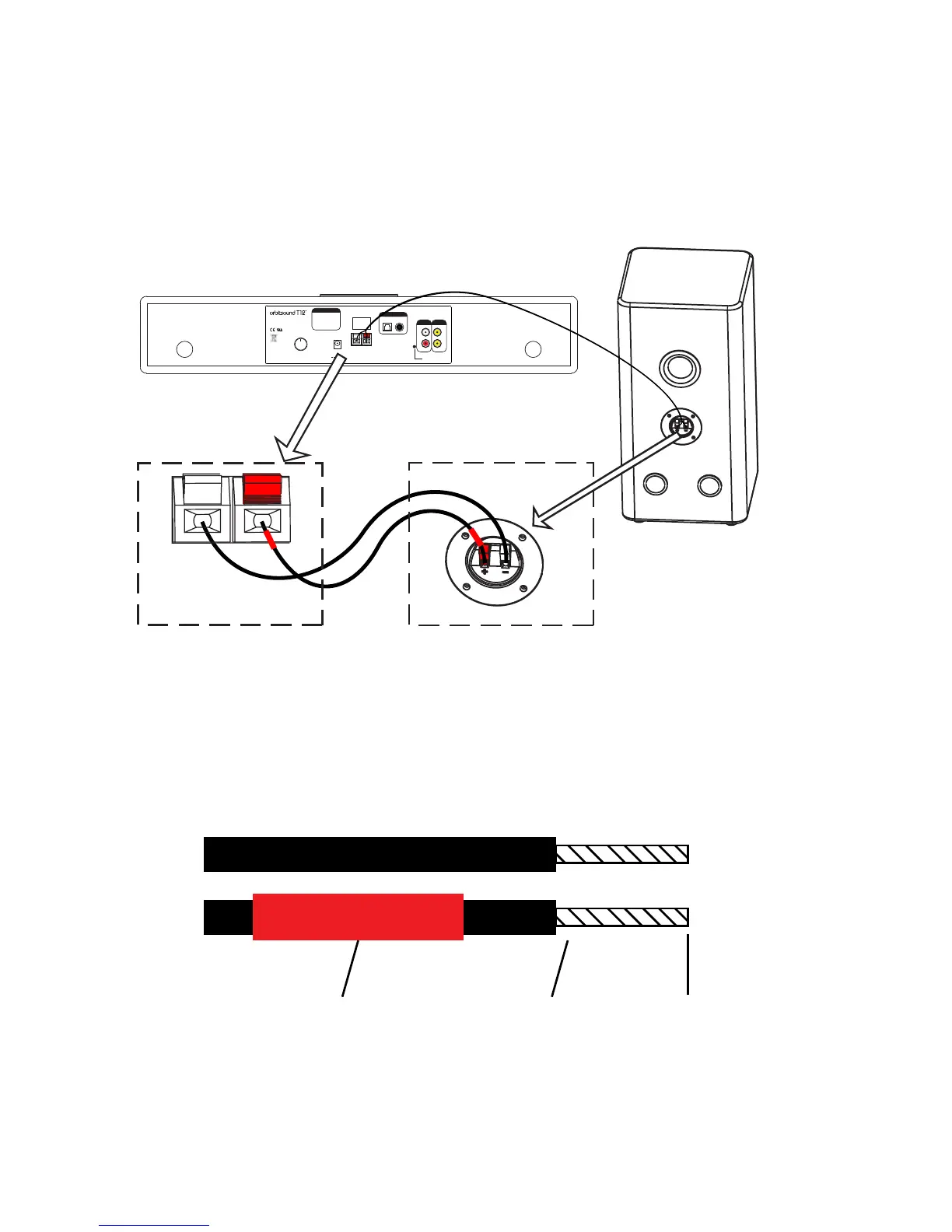

Connect the subwoofer to the subwoofer output on the stereo soundbar as shown:
Subwoofer Output
8 ohm minimum
R
L
Stereo
Line In
Approved
components used
+
-
Subwoofer Output
4 ohm minimum
Only connect supplied subwoofer
DC In 22V 2.5A
DIGITAL In
CAUTION:
To prevent electric
shock, do not
remove screws. No
User serviceable
parts inside.
Volume Control
Press to switch inputs
Press and hold for standby
Press to resume from standby
POWER
ON OFF
AUX In VID OUT
Made in China
©2011 orbitsound ltd.
CoaxialOptical
Digital Input
v3
Note: The speaker wire is colour marked to make the job of identifying the correct wire for
speaker terminal easy. Connect the wire marked with a red tab to the red terminal on the
soundbar and the subwoofer.
IMPORTANT: Make certain that the metal core of the wires only is inserted
into the wire socket to ensure metal-metal contact. The contact area is shown
below:
(Contact area)Red terminal marker
