COMPOSITION DU COFFRET
Réglage des
roues
Trajectoire
Réglage des
roues
Trajectoire

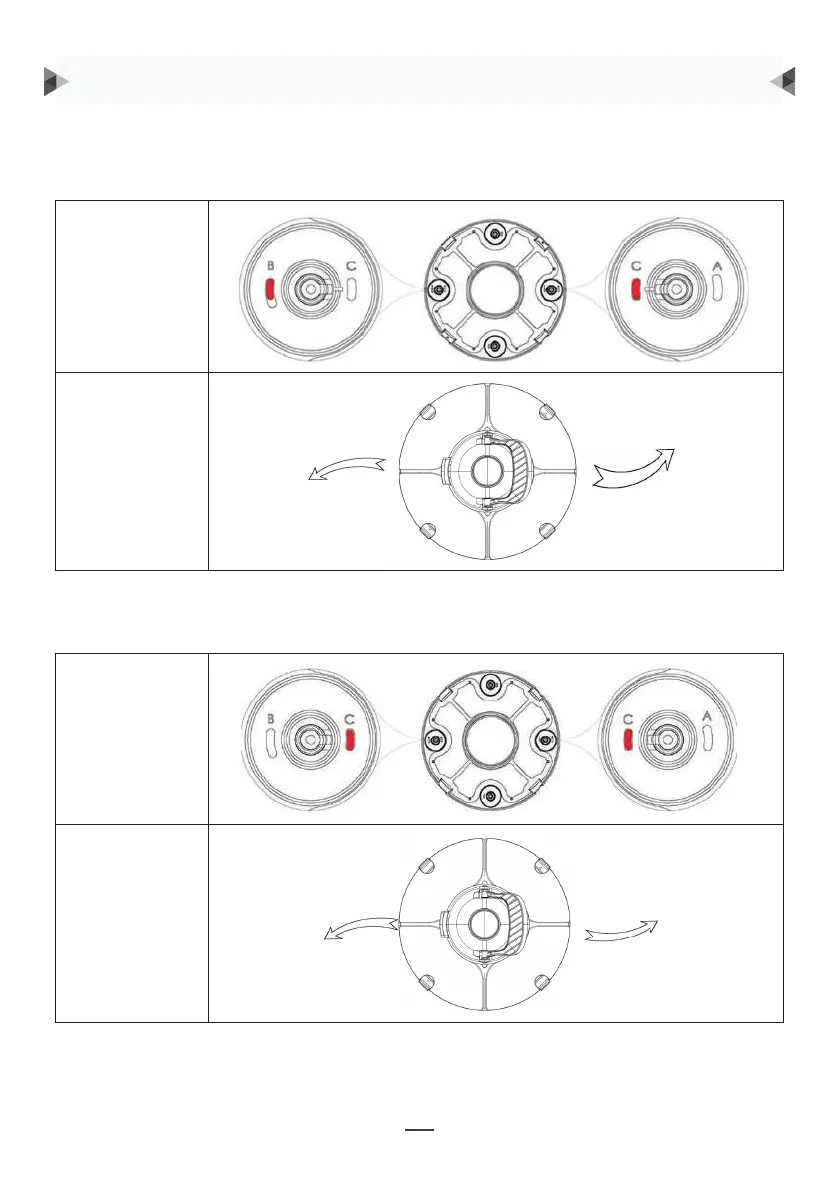

Réglage 2 : B-C, si l’angle de virage du robot est trop important
Réglage 3 : C-C, si la piscine est de grande taille
FONCTIONNEMENT DU ROBOT
10
Setting 3: C-C, when the length and width of the swimming pool are large
Wheel Angle
Running route
10
Setting 3: C-C, when the length and width of the swimming pool are large
Wheel Angle
Running route
8
Then re-install the limit pile into chassis to realize the different running paths.
b. Four settings for wheels are recommended:
Setting 1: default setting: B-C, for most of pools
Wheel Angle
Running path
9
Setting 2: C-A, when the turning angle is too large
Wheel
Angle
Running
path
