FUEL COCK (2, FIGURE 2)
Open fuel cock before using the machine. Close fuel cock when machine is not in use. Push the lever
to Y to open fuel cock and to X to close cock.

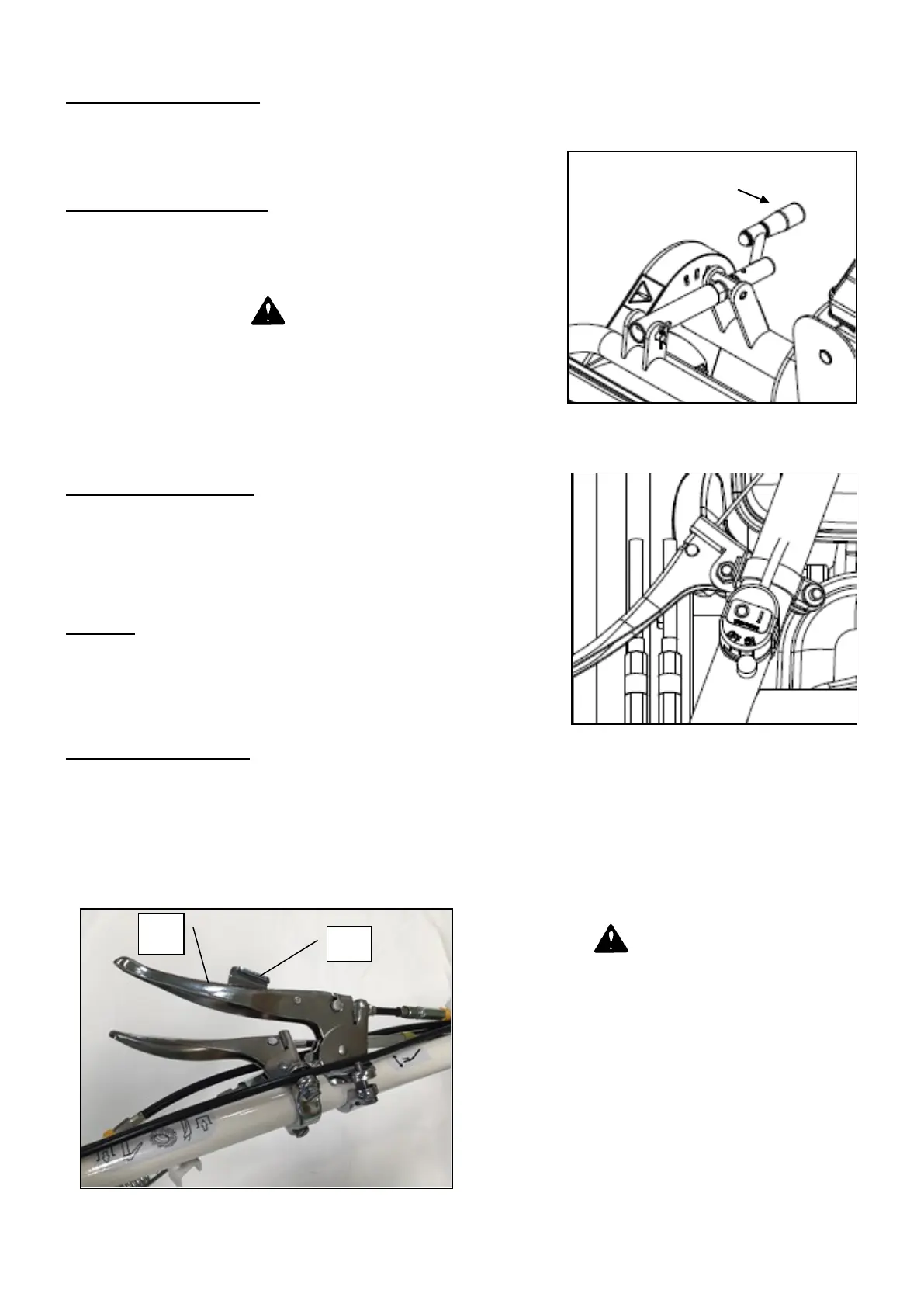

HEIGHT OF CUT CONTROL
Height of cut can be adjusted by turning the crank-lever
(1, Figure 3) clockwise to increase the height of cut and anti-
clockwise to lower the height of cut.
WARNING
Always perform this adjustment with engine off and
sparking plug cover unplugged. When cutting low, more
power is needed and more objects are thrown. Cutting low
can cause damage to the machine and injuries.
ENGINE ON/OFF SWITCH
This switch is located on the left side of the handlebar. It allows
to run the engine when positioned on « ON » and stop the
engine when positioned on “OFF”. (Figure 4) Use this switch to
start or stop the engine.
ENGINE :
Refer to engine manual delivered with the machine.
CRAWLER LOCK LEVER ( HRC673 / 813 ONLY)
This lever is located on the left side of handlebar.
It is used to function for uplift prevention of machine by locking both crawlers.
Grip the lever (1, Figure 5) until it clicks into place and is locked by lever (2, Figure 5). In this moment,
crawler is unlocked.
Grip lever (1, Figure 5) again with lever (2, Figure 5) and release it. Then crawler kit pin should fit into
one position. Then crawler is locked.
CAUTION
When crawler is locked, turning radius would be
slightly bigger than normal operation.
