Oregon 480RT - Page 27

27
ASSEMBLY
REF PART DESCRIPTION
6. 1043901 Right mast plate
7. 1043902 Left mast plate
17. 33661 Cat 1 mounting pin
18. 1002048 Clutch shield
19. 104236x Drive assembly, complete
22. 1043920 Gearbox mount
38. 39254 M8-1.25P x 14 mm HHCS
39. 35155 5/16 SAE flat washer
40. 2472 5/16 Lock washer
41. 44638 1/4 Proof coil chain, 16 link
45. 3379 1/2 NC x 1-1/2 HHCS
46. 6100 1/2 NC x 1-1/4 HHCS
47. 25475 1/2 NC x 1 HHCS
48. 11900 1/2 NC Flange lock nut
55. 15007 3/4 NC x 3-1/2 HHCS
56. 1002018 Sleeve, .81 x 1.25 x 2.12
57. 2371 3/4 NC Lock nut

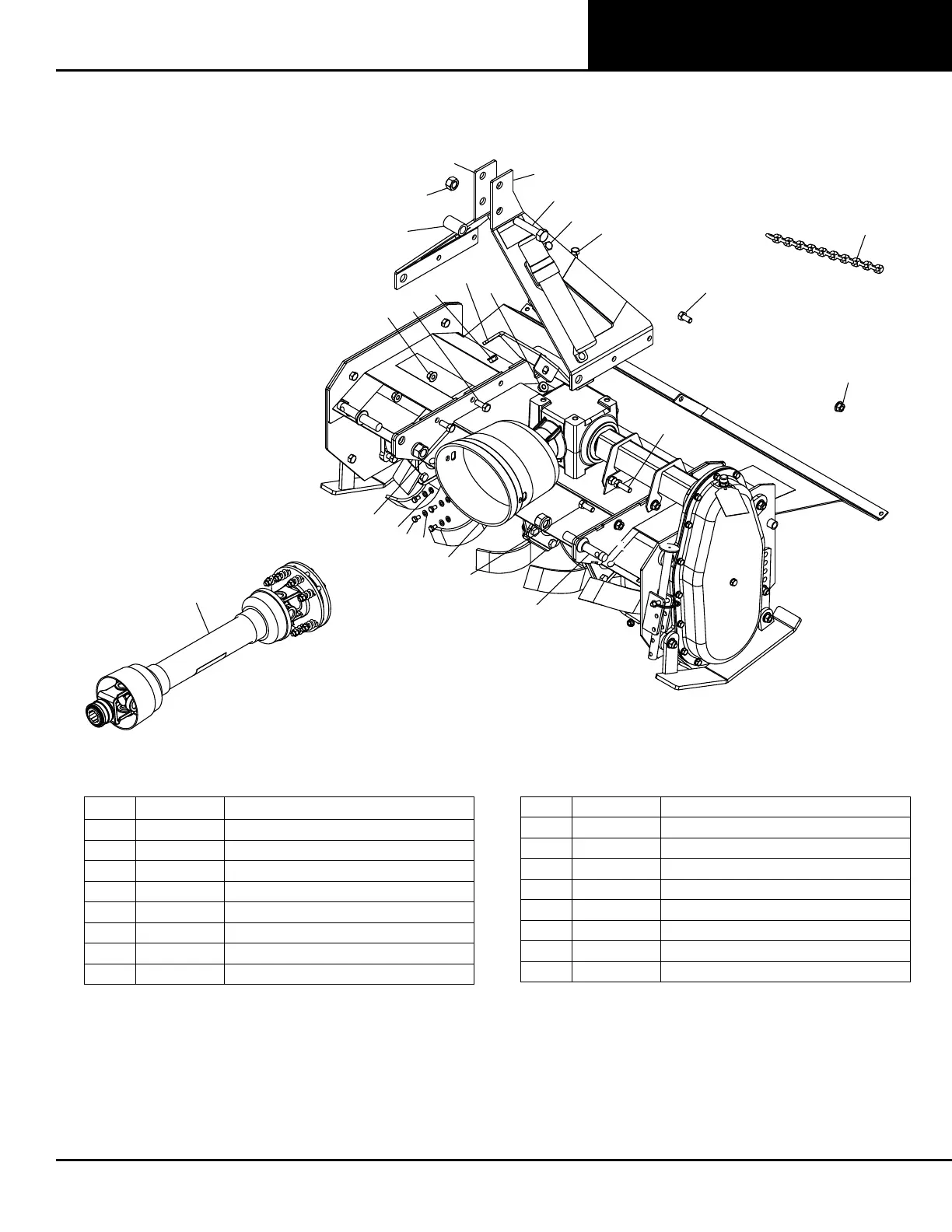

Figure 25 . Crate Assembly
19
41
48
48
17
46
45
46
46
48
22
56
57
55
7
6
47
48
47
48
18
38
39
40
