Oregon 480RT - 1042364 Slip Clutch Drive Assembly 480 RT Tiller

32
PARTS INDEX

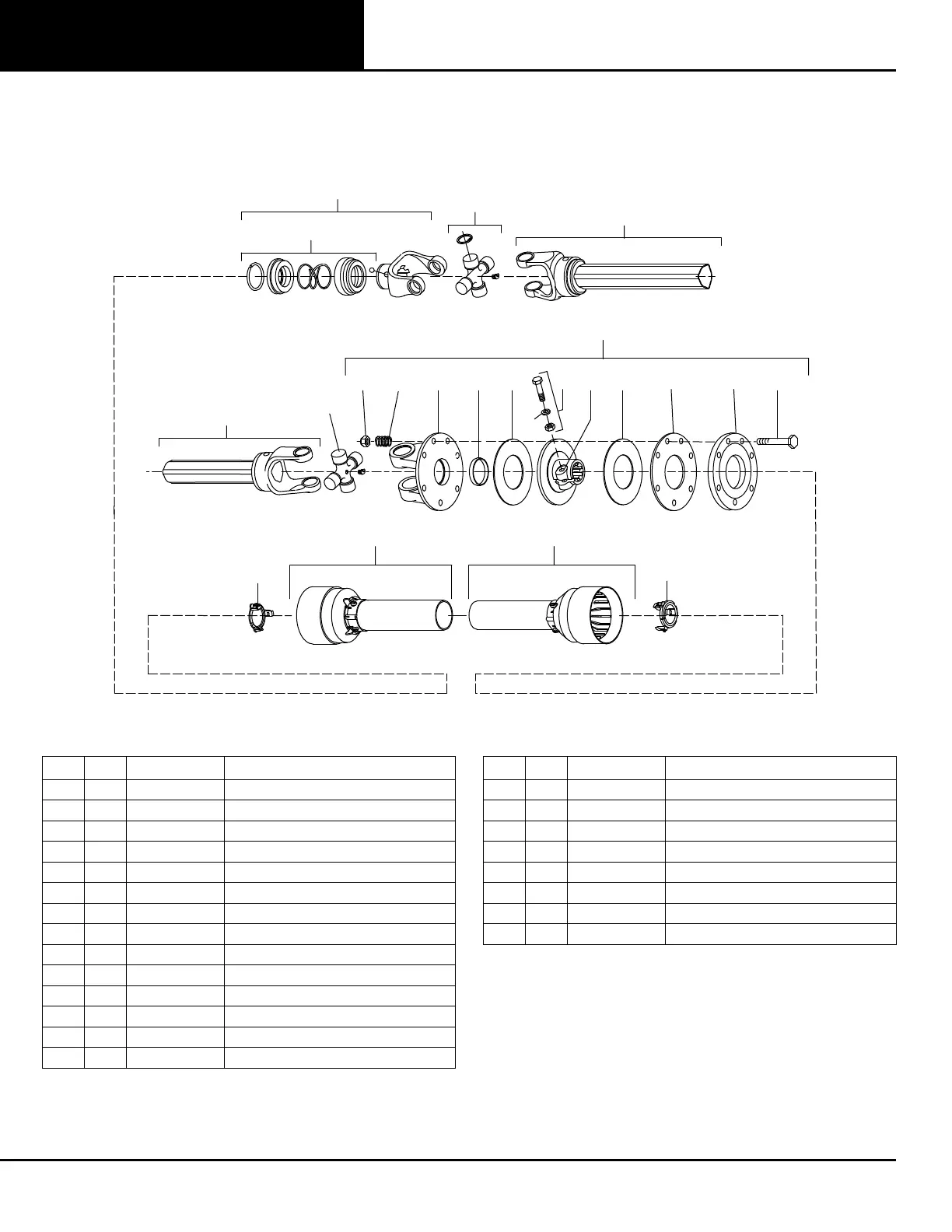

1042364 Slip Clutch Drive Assembly
480RT Tiller
REF QTY PART DESCRIPTION
A 1 1042364 Complete 540 driveline and clutch assembly
1 1 NSS Complete collar yoke 1-3/8-6 spline
2 1 1044063 Lock collar repair kit
3 2 1044065 U-Joint cross & bearing kit
4 1 NSS Outer profile tube & yoke
5 1 NSS Inner profile tube & yoke
6 1 NSS Friction clutch assembly
7 1 NSS Flange yoke
8 NSS Clutch hub
9 1 NSS Internal disc
10 1 NSS Pressure plate
11 2 1044055 Friction disc
12 1 NSS Bushing
13 8 W307208* M10 x 1.5P x 85, HHCS
REF QTY PART DESCRIPTION
14 8 NSS Clutch spring
15 8 57260* M10 x 1.5P nylon lock nut
16 1 1001315* Bolt & nut, M12 x 65
17 1 1043998 Outer shield kit, T2 (includes 20)
18 1 1043999 Inner shield kit, T2 (includes 21)
19 1 NSS M12 spring washer
20 1 NSS Bearing, outer
21 1 NSS Bearing, inner
HHCS: Hex Head Cap Screw
NSS: Not Sold Separately
* Standard Hardware, Obtain Locally
3
1
2
4
6
14
7
12 11
16
8
11 9 13
3
5
17
10
18
15
19
20
21
