Oregon 480RT - 1042365 Slip Clutch Drive Assembly 600 RT & 720 RT Tillers

33

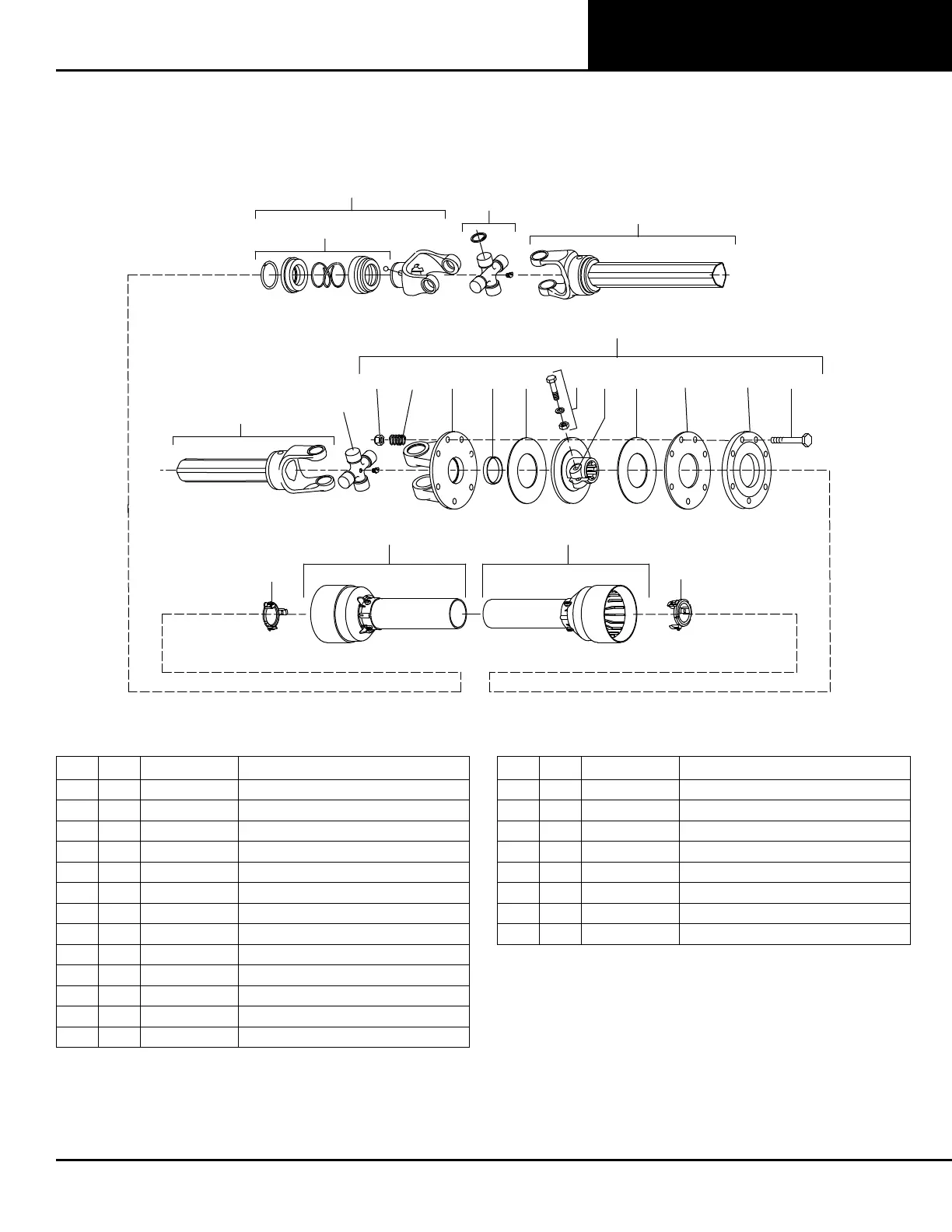

PARTS INDEX
1042365 Slip Clutch Drive Assembly
600RT & 720RT Tillers
REF QTY PART DESCRIPTION
A 1 1042365 Complete 540 driveline and clutch assembly
1 1 NSS Complete collar yoke 1-3/8-6 spline
2 1 1044050 Lock collar repair kit
3 2 1044052 U-joint cross & bearing kit
4 1 NSS Outer profile tube & yoke
5 1 NSS Inner profile tube & yoke
6 1 NSS Friction clutch assembly
7 1 NSS Flanged yoke
8 1 NSS Clutch hub
9 1 NSS Internal disc
10 1 NSS Pressure plate
11 2 1044083 Friction disc
12 1 NSS Bushing
REF QTY PART DESCRIPTION
13 8 W307208* M10 x 1.5P x 85, HHCS
14 8 NSS Clutch spring
15 8 57260* M10 x 1.5P Nylon lock nut
16 1 1044091 Tapered pin & nut
17 1 1044061 Outer shield kit, T4 (includes item 19)
18 1 1044062 Inner shield kit, T4 (includes item 20)
19 1 NSS Bearing, outer
20 1 NSS Bearing, inner
HHCS: Hex Head Cap Screw
NSS: Not Sold Separately
* Standard Hardware, Obtain Locally
3
1
2
4
6
14
7
12 11
16
8
11 9 13
3
5
17
10
18
15
19
20
