Oregon 480RT - 1042304 Gearbox Assembly

35
PARTS INDEX

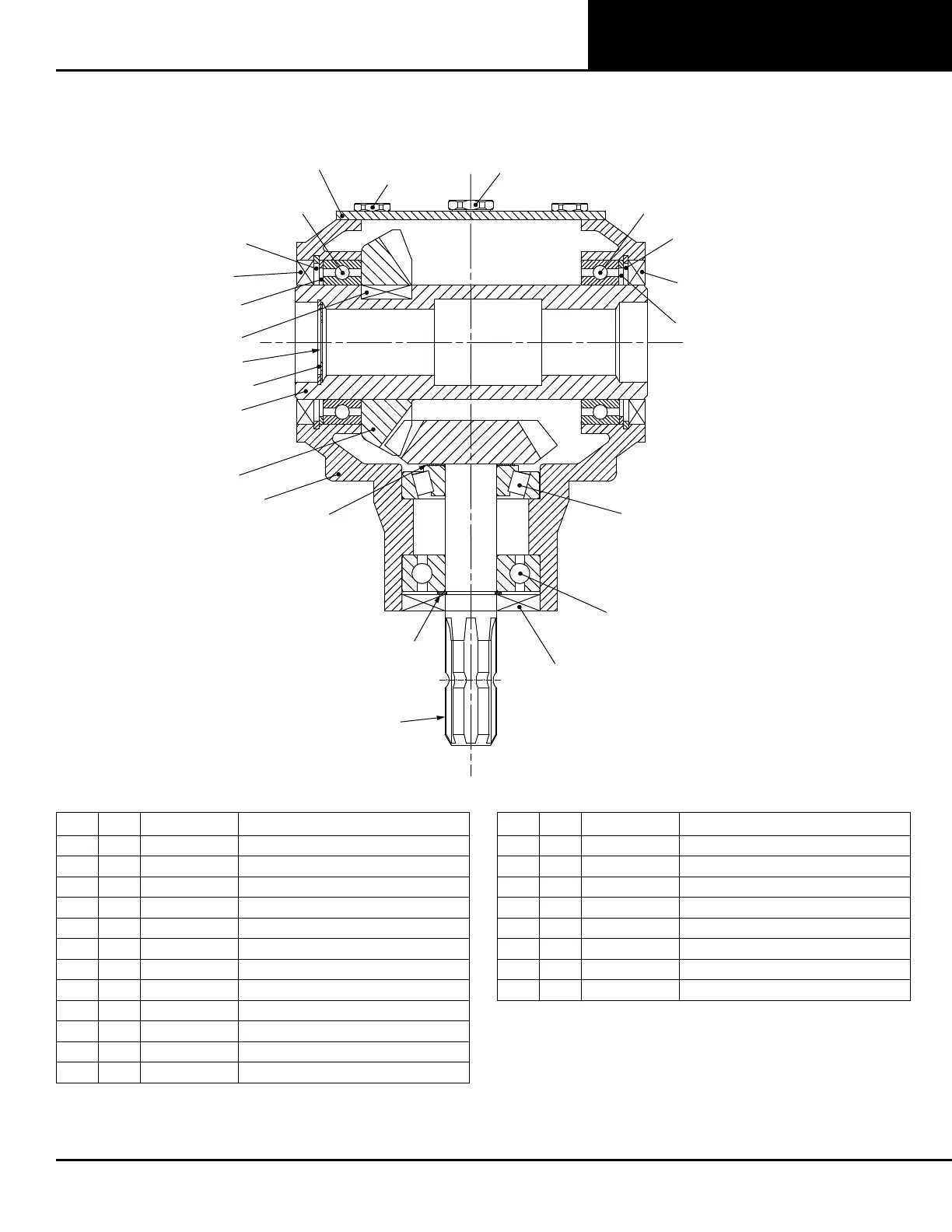

1042304 Gearbox Assembly
REF QTY PART DESCRIPTION
A 1 1042304 Gearbox assembly 1.46:1 1.50 hex
1 1 NSS Gearbox housing
2 1 NSS Cap
3 1 NSS Input shaft & gear
4 1 NSS Bevel gear
5 2 1032445 Ball bearing, 6012
6 1 20890 Ball bearing, 6207
7 1 1032448 Tapered roller bearing, 30207
8 2 1032437 Oil seal, 60 x 95 x 10
9 1 1032401 Oil seal, 35 x 72 x 10
10 2 1032408 Snap ring, 95 x 3 mm
12 1 1007859 Snap ring, 35 x 1.5 mm
REF QTY PART DESCRIPTION
14 1 NSS Key, 14 x 9 x 33 mm
15 A/R 1043976 Shim kit, 85.3 x 94.7; 35.5 x 48
23 1 39325 3/8 vent plug
24 4 63716* M10-1.50P x 20 HHCS
25 2 27326* Plug, pipe 3/8 NPT
26 1 NSS Output shaft
27 1 1043986 Snap ring, 1.5 x 45 mm internal
28 1 1044758 7/8 SAE Flat washer
HHCS: Hex Head Cap Screw
NSS: Not Sold Separately
* Standard hardware, obtain locally
5
9
8
10
19-22
14
23, 25
12
6
7
1
2
3
4
15
26
15
24
5
10
8
27
28
