Oregon 480RT - Tiller Side Drive Assembly

34
PARTS INDEX

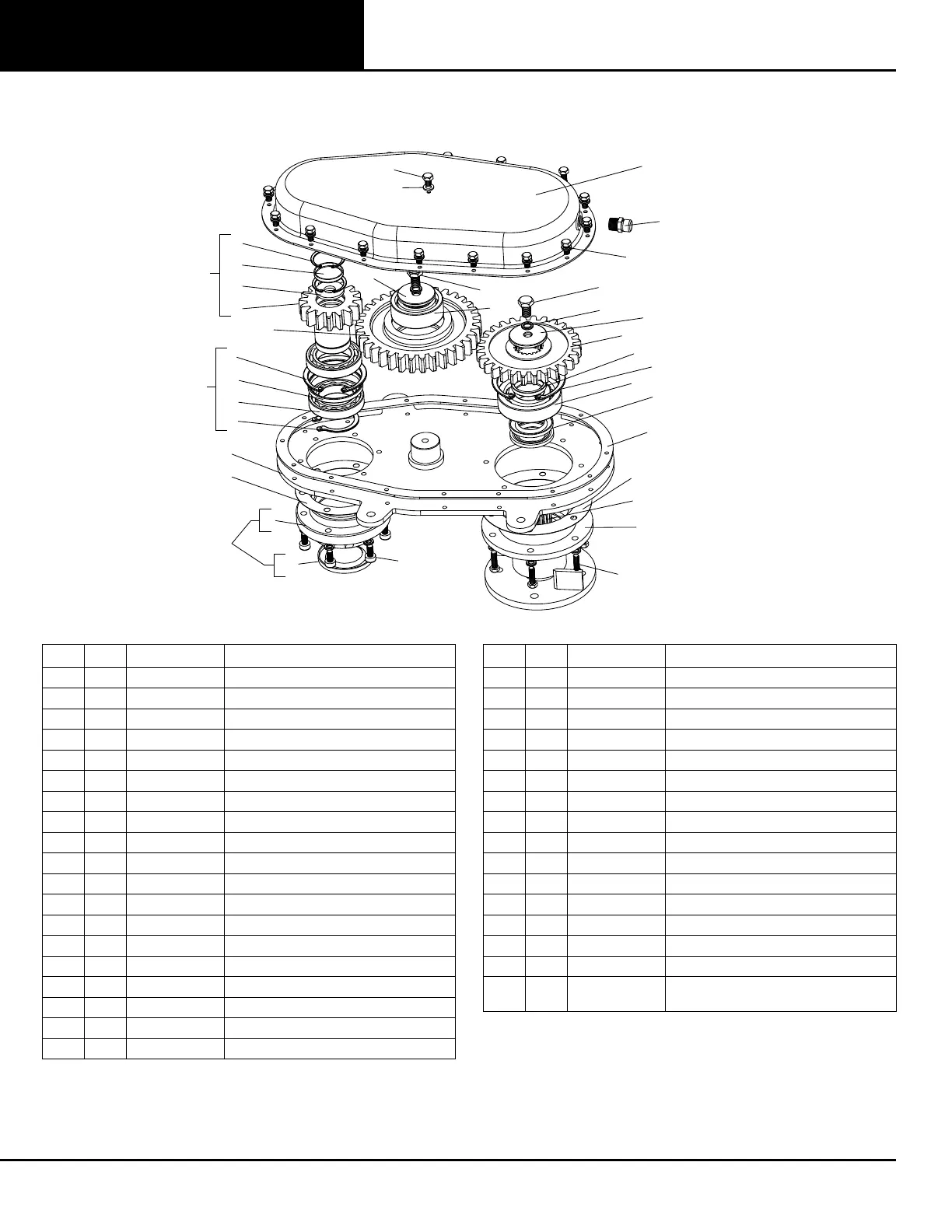

Tiller Side Drive Assembly
REF QTY PART DESCRIPTION
1 1 NSS Plate, side drive
2 1 NSS Housing, bearing, input
3 1 NSS Spacer, 88 x 94.5 x 9.2
4 1 — Oil cover (included with 1043931)
5 1 NSS Shaft, input gear, 16T (includes items 4, 5, 30 & 39)
6 A/R NSS Gasket, .5 mm, input
8 1 NSS Washer, 10.5 x 60 x 6
9 1 NSS Gear, middle, 34T
10 1 NSS Gear, output, 28T
12 1 NSS Weldment, shaft & flange output
13 1 NSS Housing, bearing, output
14 1 NSS Spacer, 51 x 60 x 7.5
15 A/R NSS Gasket, .5 mm, output
17 1 NSS Seal ring
18 1 NSS Cover
19 2 1043943 Seal, 55 x 75 x 12
20 1 1043944 Bearing, 6310, no shield
21 1 1043945 Retaining ring, internal, 3.2 x 110 mm
22 7 1263 * 3/8 NC x 1 HHCS, GR5
REF QTY PART DESCRIPTION
23 29 838 * 3/8 lock washer
24 1 6100 * 1/2 NC x 1-1/4 HHCS, GR5
25 1 855 * 1/2 Lock washer
26 1 1043950 Bearing, 5210, no shield
27 1 1043951 Seal, 60 x 95 x 12
28 1 NSS Retaining ring, external, 2 x 60 mm
29 2 1042445 Bearing, ball, 6012
30 2 1043954 Retaining ring, internal, 3 x 50 mm
31 1 1032408 Retaining ring, internal, 3 x 95 mm
32 17 1043956 * 3/8 NC x .67 HHCS
34 6 300176 * 3/8 NC x 1 SHCS
36 1 11975 1/2 NPT vent plug
37 1 NSS Seal, M10
39 1 NSS Washer, 20 x 49 mm
40 1 NSS Washer, 13.5 x 60 x 6
41 1 NSS Asy, top gear (Includes items 2, 3, 4, 5, 27, 28, 29,
30, 31 & 39)
HHCS: Hex Head Cap Screw
SHCS: Socket Head Cap Screw
NSS: Not Sold Separately
* Standard hardware, obtain locally
