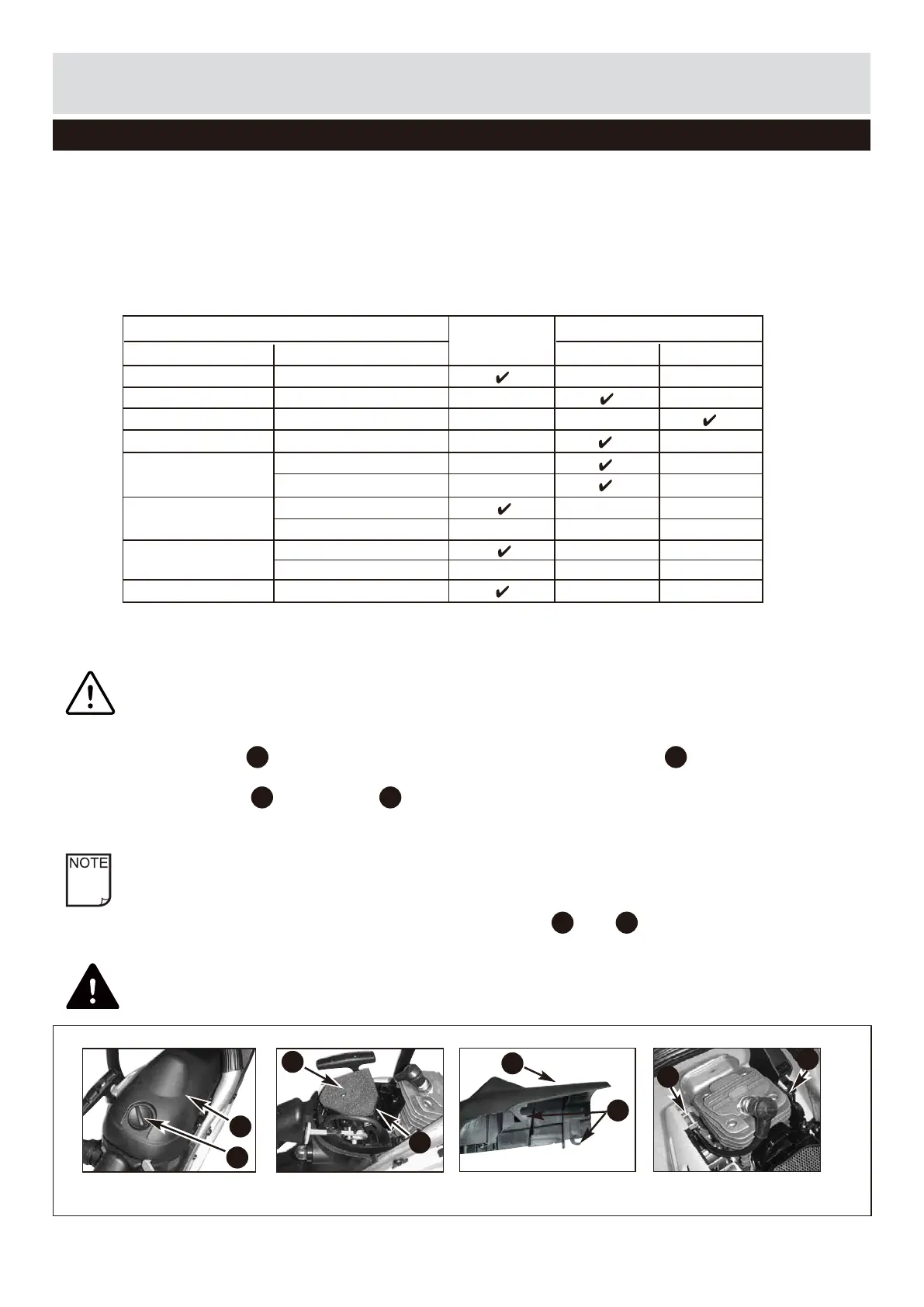

PREVENTIVE MAINTENANCE
AIR FILTER
TO CLEAN AIR FILTER:
HOURS OF OPERATION
EACH USE
MAINTENANCE CHECKLIST
ITEM ACTION
Screws/Nuts/Bolts Inspect/Tighten
Air Filter
Clean or Replace
Fuel Filter/Oil Filter
Replace
Spark Plug Clean/Adjust/Replace
Spark Arrester
Screen
Inspect
Fuel Hoses
Inspect
10 20
Saw chain tension Inspect/Adjust
Replace as Required
Replace as Required
Chain brake Inspect
components
Replace as Required
Maintenance
Maintenance instructions
A good preventive maintenance program of regular inspection and care will increase life and improve
performance of your chainsaw. This maintenance checklist is a guide for such a program.
Cleaning, adjustment, and parts replacement may be required, under certain conditions, at more
frequent intervals than those indicated.
1. Remove knob (A) holding air lter cover in place, remove the top cover (B) by loosening the cover
retaining screws. Cover will lift off. (Fig.15A)
2. Lift the air lter (C) out of air-box (D) (Fig.15B).
3. Clean air lter. Wash lter in clean, warm, soapy water. Rinse in clear, cool water. Air dry
completely.
4. Install air lter. Install engine / air lter cover. Make sure (E) latch (F) and cover t properly. Tighten
the cover retaining knob securely. (Fig.15C & Fig.15D)
All chainsaw service, other than items listed here in your user manual maintenance instructions,
should be performed by a professional.
WARNING: Never perform maintenance when the engine is hot, to avoid any chance of burning
hands or ngers.
CAUTION: Never operate saw without the air lter. Dust and dirt will be drawn into engine and
damage it. Keep the air lter clean!
NOTE: It is advisable to have a supply of spare lters.
