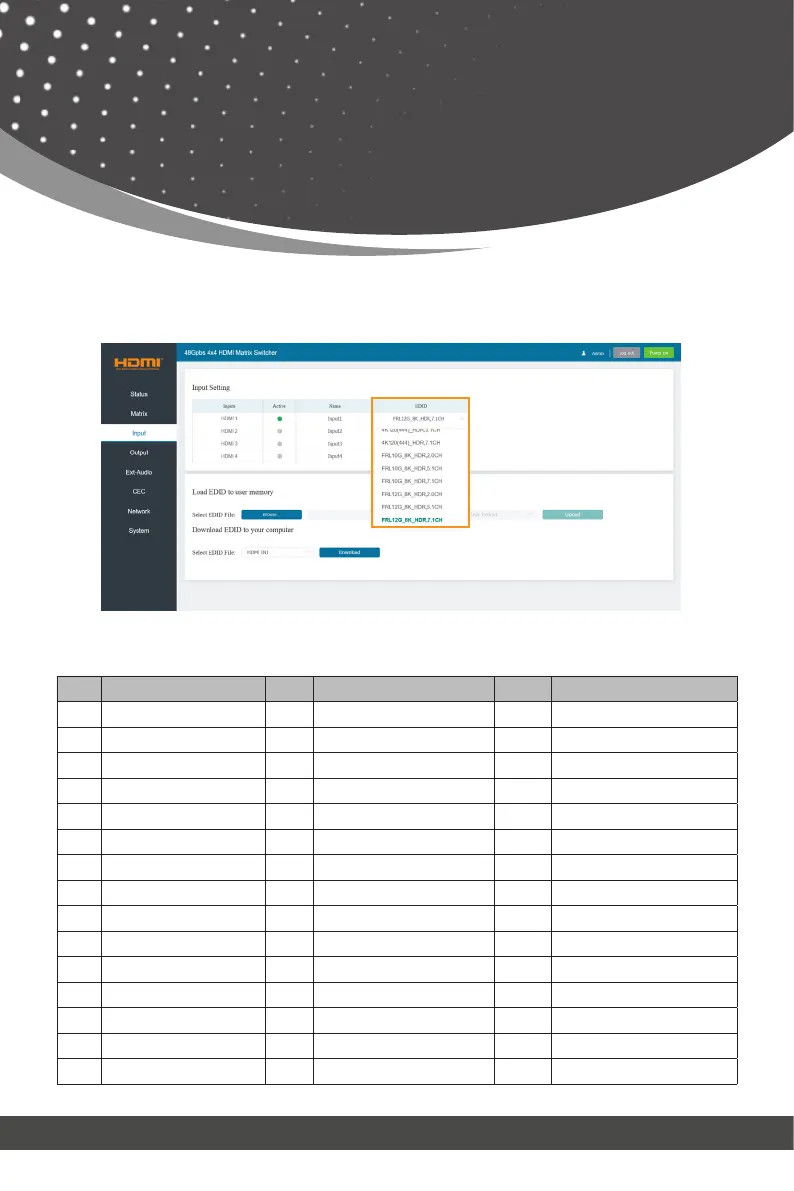

The defined EDID setting list of the product is shown as below:
Web GUI Operation: Please check the EDID management in the “Input page”
of “Web GUI User Guide”.
EDID Management
No. EDID Mode No. EDID Mode No. EDID Mode
1 1080P, 2.0CH 16 4K30_HDR, 2.0CH 31 FRL10G_8K_HDR, 2.0CH
2 1080P, 5.1CH 17 4K30_HDR, 5.1CH 32 FRL10G_8K_HDR, 5.1CH
3 1080P, 7.1CH 18 4K30_HDR, 7.1CH 33 FRL10G_8K_HDR, 7.1CH
4 4K30, 2.0CH 19 4K60(420)_HDR, 2.0CH 34 FRL12G_8K_HDR, 2.0CH
5 4K30, 5.1CH 20 4K60(420)_HDR, 5.1CH 35 FRL12G_8K_HDR, 5.1CH
6 4K30, 7.1CH 21 4K60(420)_HDR, 7.1CH 36 FRL12G_8K_HDR, 7.1CH
7 4K60(420), 2.0CH 22 4K60(444)_HDR, 2.0CH 37 user1_EDID
8 4K60(420), 5.1CH 23 4K60(444)_HDR, 5.1CH 38 user2_EDID
9 4K60(420), 7.1CH 24 4K60(444)_HDR, 7.1CH 39 user3_EDID
10 4K60(444), 2.0CH 25 4K120(420)_HDR, 2.0CH 40 copy out1
11 4K60(444), 5.1CH 26 4K120(420)_HDR, 5.1CH 41 copy out2
12 4K60(444), 7.1CH 27 4K120(420)_HDR, 7.1CH 42 copy out3
13 1080P_HDR, 2.0CH 28 4K120(444)_HDR, 2.0CH 43 copy out4
14 1080P_HDR, 5.1CH 29 4K120(444)_HDR, 5.1CH
15 1080P_HDR, 7.1CH 30 4K120(444)_HDR, 7.1CH
