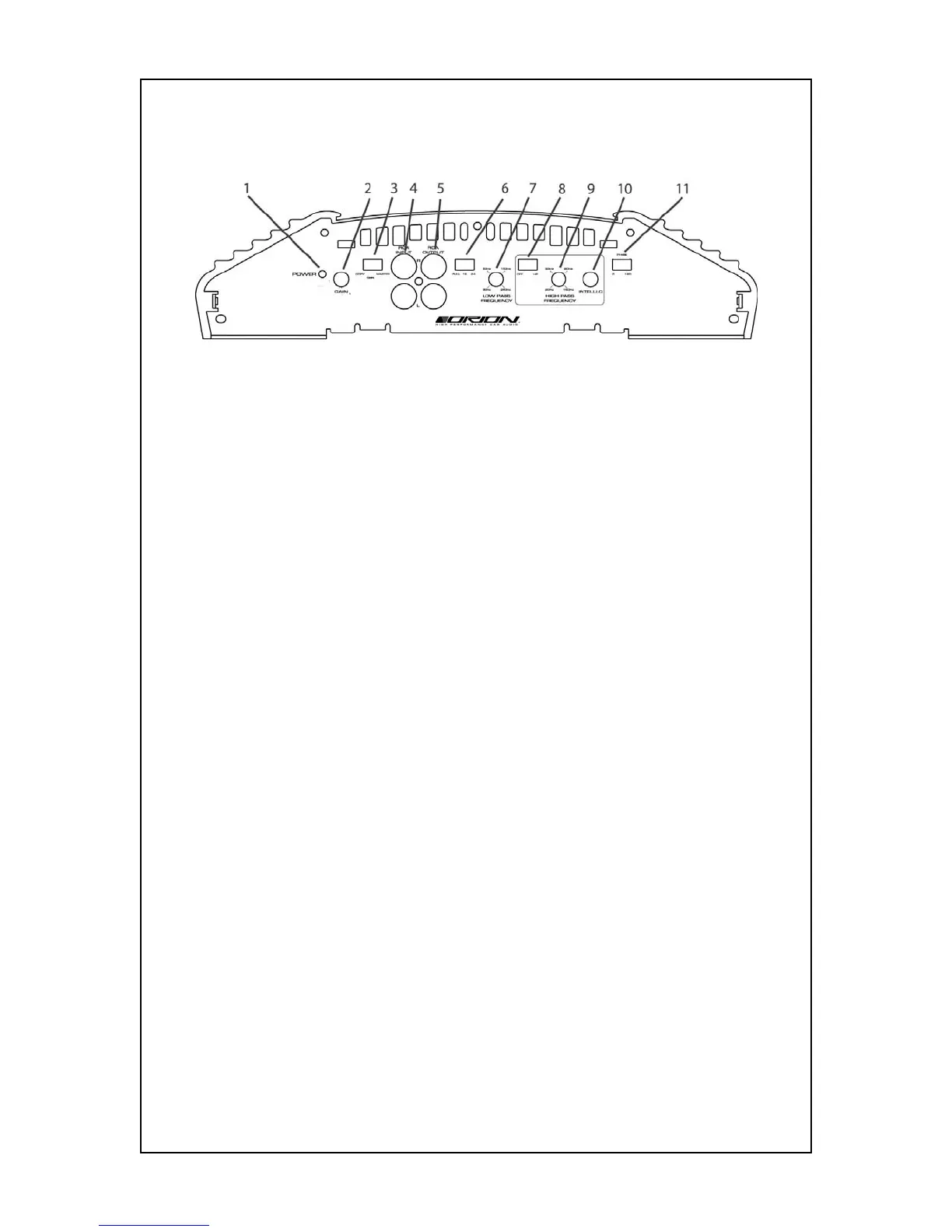

END PANEL LAYOUTS
1. Power LED - when lit indicates that the amplifier is on.
2. Gain Control - continuously adjusts from 200mV to 5V for full power output.
3. Copy/Gain/Master Switch - determines the configuration of the RCA outputs
(600D, 1200D, 2600D only).
4. RCA Inputs - accepts RCA input from a source unit, preamplifier, or equalizer.
5. RCA Outputs - provides easy connection to additional amplifiers.
6. Low-Pass Crossover Switch - activates low pass crossover.
7. Low-Pass Frequency Control - adjusts the frequency of the low-pass crossover.
8. High-Pass Crossover Switch - activates high pass crossover (part of Intelli-Q
function).
9. High-Pass Frequency Control - adjusts the frequency of the high-pass crossover.
10. INTELLi Q Control - continuously adjusts the "Q" boost of the high-pass
crossover from 0 to 10dB of boost.
11. Phase Control Switch - Allows for adjustment of phase and makes bridging
amplifiers possible.
