10
Antenna connection
Note: Before you connect other appliances:
To avoid potentially damaging your set, make sure all items are switched off and disconnected from the
mains power when you make the connections.
Arrange the desired connection.
When you have finished making the connections, reconnect the mains power to the unit and switch it
back on.

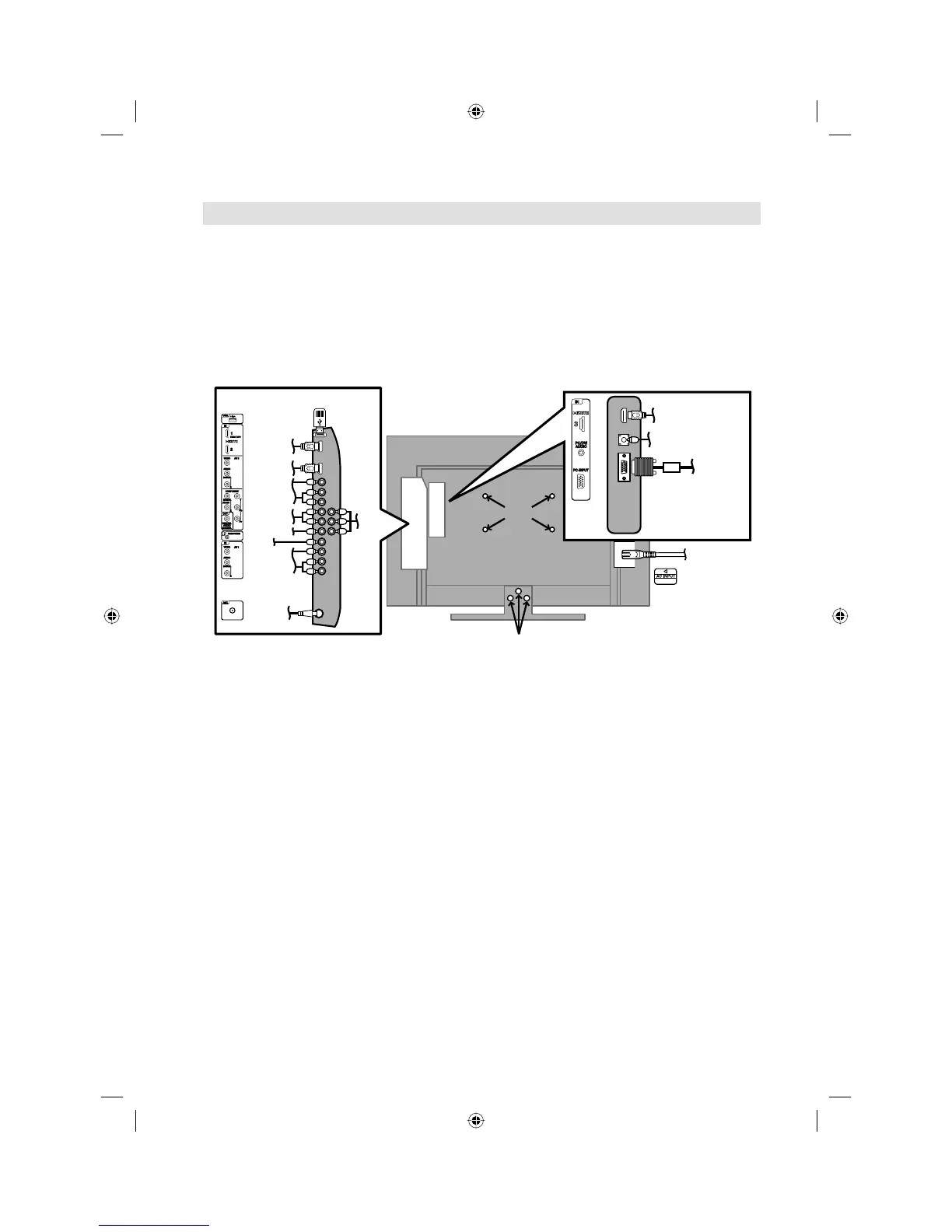

Connect your antenna as shown below (G). Connections to other equipment is explained further on
P.25, 26. If you have problems with reception, consult a specialist of antenna.
•
•
•
(K)
(A)
(H)
(I)
(B)
(J)
(L)
(B)
(C)
(D)
(E)
(F)
(C)
(G)
(D)
(B) (32MT6000)
(A) USB input: See P.22.
(B) HDMI/DVI (32MT6000: HDMI/DVI1/HDMI2/3 / 26MT6000: HDMI/DVI1/HDMI2) : See P.24.
(C) AV1/AV2 input: Input for analogue AV-Signal (Composite) See P.25.
(D) COMPONENT input: See P.25, 26.
(E) DIGITAL AUDIO COAXIAL output: digital output for DVB-T sound (see page 26).
(F) HEADPHONE jack: Plug headphones with a mini plug (3.5 mm) into this jack.
(G) DVB-T antenna: Connect a DVB-T antenna if DVB-T is already available in your transmission area. Or
connect to an analogue cable connection.
The built-in tuner receives all analogue cable programmes and DVB-T channels.
(H) PC/DVI AUDIO input: See P.23, 24.
(I) PC-INPUT (PC): See P.23.
(J)
Power supply: Connect the supplied power cable to an AC 220-240V/50Hz mains power supply only - do not
attempt to connect it to any other type of supply. Never try to repair a damaged AC power cord with isolation-
tape - this should be repaired by a specialist or replaced. Do not let your pet loose near the cable. Animals
biting into the cable could receive a fatal electric shock, and could cause a hazard to others.
(K) Bracket holes: Fix a wall mounting bracket (not supplied) here.
(L) To hang the television on a wall, remove these screws and then remove a stand.
Before performing work spread cushioning over the base area to lay the TV on.
3BR2901A_EN.indd 103BR2901A_EN.indd 10 3/8/11 12:14:06 PM3/8/11 12:14:06 PM
