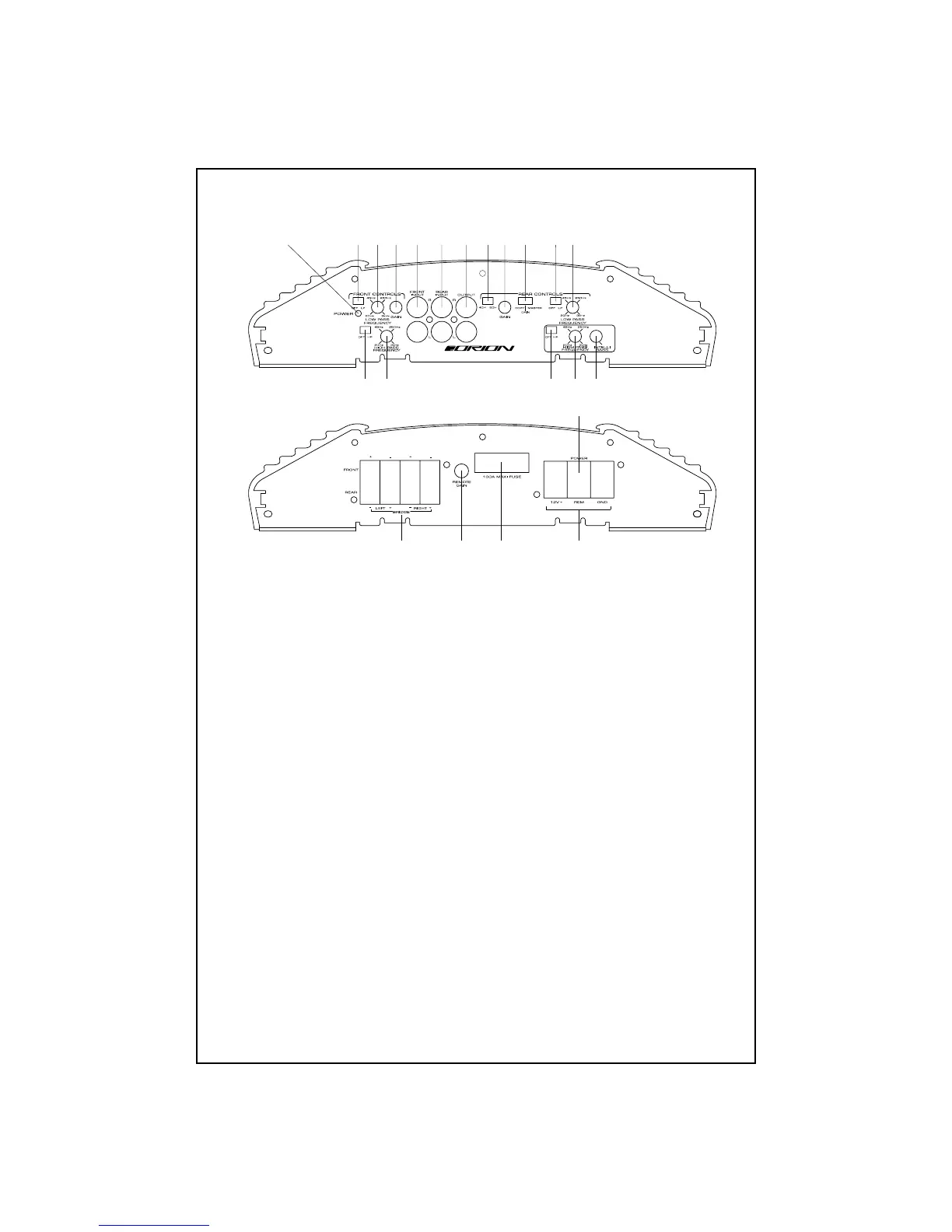

AMPLIFIER CONTROLS AND CONNECTIONS
1. Power LED - when lit indicates that the amplifier is on.
2. Front Low-Pass Crossover Switch - activates 2nd order low-pass crossover.
3. Front Low-Pass Frequency Control - adjusts the frequency of the low-pass
crossover.
4. Front Gain Control - continuously adjusts from 200mV to 5V for full power output.
5. Front RCA Inputs - accepts RCA input from a source unit, preamplifier, or equalizer.
6. Rear RCA Inputs - accepts RCA input from a source unit, preamplifier, or equalizer.
7. RCA Outputs - provides easy connection to additional amplifiers.
8. 4 CH / 2 CH Switch - configures the amplifier for one or two sets of inputs.
9. Rear Gain Control - continuously adjusts from 200mV to 5V for full power output.
10. Copy/Master/Gain Switch - determines the output of the RCA outputs.
11. Rear Low-Pass Crossover Switch - activates 2nd order low-pass crossover.
12. Rear Low-Pass Frequency Control - adjusts the frequency of the low-pass
crossover.
13. INTELLi Bass Control - continuously adjusts from 0 to 16dB of boost on the rear
channels.
14. Rear High-Pass Frequency Control - adjusts the frequency of the high-pass
crossover.
15. Rear High-Pass Crossover Switch - activates 2nd order high pass crossover.
16. Front High-Pass Frequency Control - adjusts the frequency of the high-pass
crossover.
17. Front High-Pass Crossover Switch - activates 2nd order high-pass crossover.
18. REM Remote Turn-on Input - turns on the amplifier when fed 12 V+.
19. Power Connections - allow greater than eight-gauge power and ground cables.
20. 1 x 100A MAXI Fuse - protect the amplifier from over current situations.
21. Remote Gain Connector - allows the gain of the amplifier to be controlled
remotely.
22. Speaker Connections - allow up to 12 gauge speaker wire.
