Orion Cobalt CB1000.4 User Manual

11

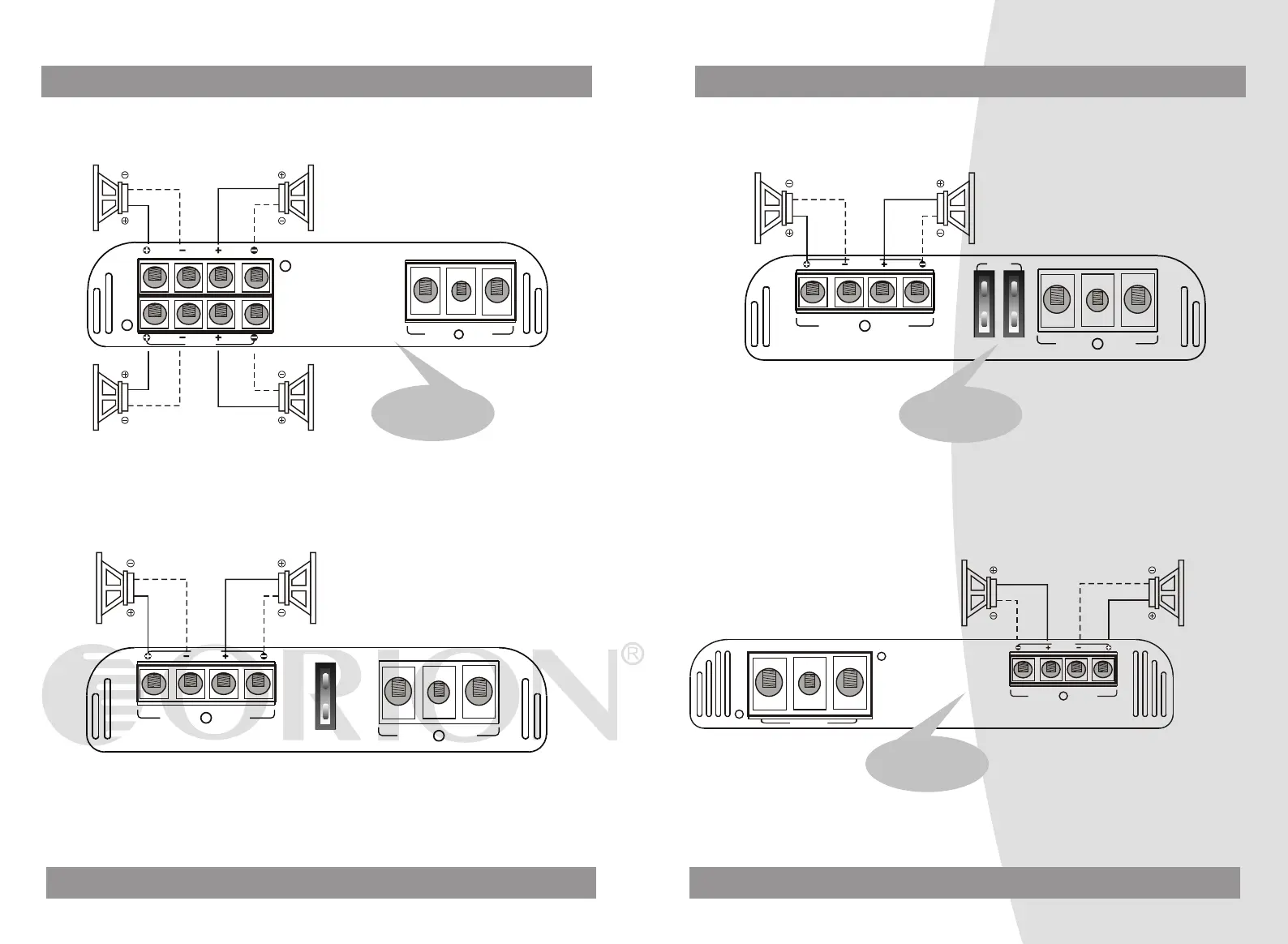

SPEAKERS CONNECTIONS
12
SPEAKERS CONNECTIONS
Ch1
SPEAKER
2~4Ohm
Ch2
SPEAKER
2~4Ohm
Ch3
SPEAKER
2~4Ohm
Ch4
SPEAKER
2~4Ohm
CB3000.4
CB300.2
LEFT
SPEAKER
2~4Ohm
RIGHT
SPEAKER
2~4Ohm
SPEAKER OUTPUT
REM
+12V
GND
POWER INPUT
FUSE
LEFT RIGHT
BRIDGED
30A
CB3000.4:150A
BRIDGED
REM GND
+12V
POWER INPUT
CH1 CH2
CH3 CH4
SPEAKER OUTPUT
CB600.2/CB1200.2
LEFT
SPEAKER
2~4Ohm
RIGHT
SPEAKER
2~4Ohm
SPEAKER OUTPUT
REM
+12V
GND
POWER INPUT
LEFT RIGHT
BRIDGED
FUSES
CB600.2:30Ax2
CB1200.2:40Ax2
CB2700.2
L
SPEAKER
2~4Ohm
R
SPEAKER
2~4Ohm
REM
POWER INPUT
SPEAKER OUTPUT
BRIDGED
+12V
GND
LEFT RIGHT
CB2700.2:150A
