This SMART wireless door chime is designed for use in homes, apartments,
ofces, garages and sheds. It has been developed to be easily set up and operated,
giving you and your family the security and peace of mind that you deserve.
Install the Grid Connect mobile app, available for both iPhone and Android devices,
to monitor your doorbell remotely.
The Grid Connect app is free to download and is available from the Apple App Store
and Google Play.
1 x Smart Wireless Video Doorbell
including rechargeable batteries
1 x Indoor Chime Unit
1 x Wall Mount
1 x USB Cable
2 x Screws and Wall Plugs
1 x Micro SD Card
1 x L Shaped Screw Driver
1 x DC Power Adaptor
1 x Grub Screw
1 x Reset Pin
1 INTRODUCTION
2 CONTENTS
DOWNLOAD PAIR USE
Download from:
MONITOR FROM ANYWHERE

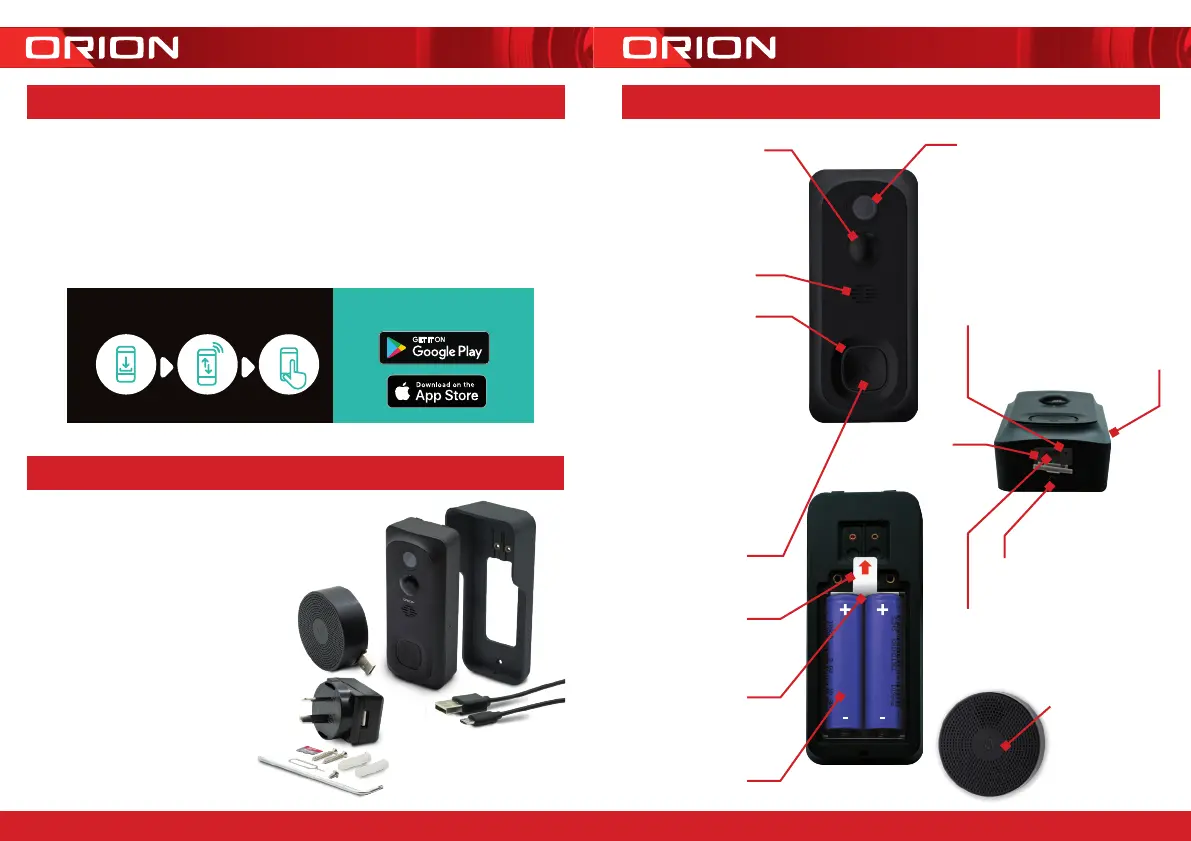

3 IDENTIFICATION
Battery Compartment
Reset Button
Please refer to reset
process on page 19
Indoor Chime
Indoor chime unit is
already paired, if no
sound please refer
to pairing process
on page 14
Speaker
Two way audio
Grub Screw
Location
USB Port
Power with supplied
cable and DC adaptor
Micro SD Card Slot
Rolling storage micro
SD card 16GB included
(Max.128GB card supported)
Battery Isolation Strip
Remove before use
Status Light
RED Solid Light:
indicates the device
is resetting.
RED Blinking Light:
once per second:
pairing mode
twice per second:
lost Wi-Fi connection
BLUE Solid Light:
Device is paired and
running correctly or there
is Wi-Fi without internet
access
OFF: Standby - press
push button to activate
camera.
Push Button
Press to activate
doorbell
Camera Lens
1080p HD, with
140° angle of view
Microphone
Light Sensor/
Infrared LEDs
Detects low light and
turns on the infrared
lights which allow the
camera to capture
both day and night
images
Charging Indicator
Solid Red: Charging
Solid Blue: Fully Charged
