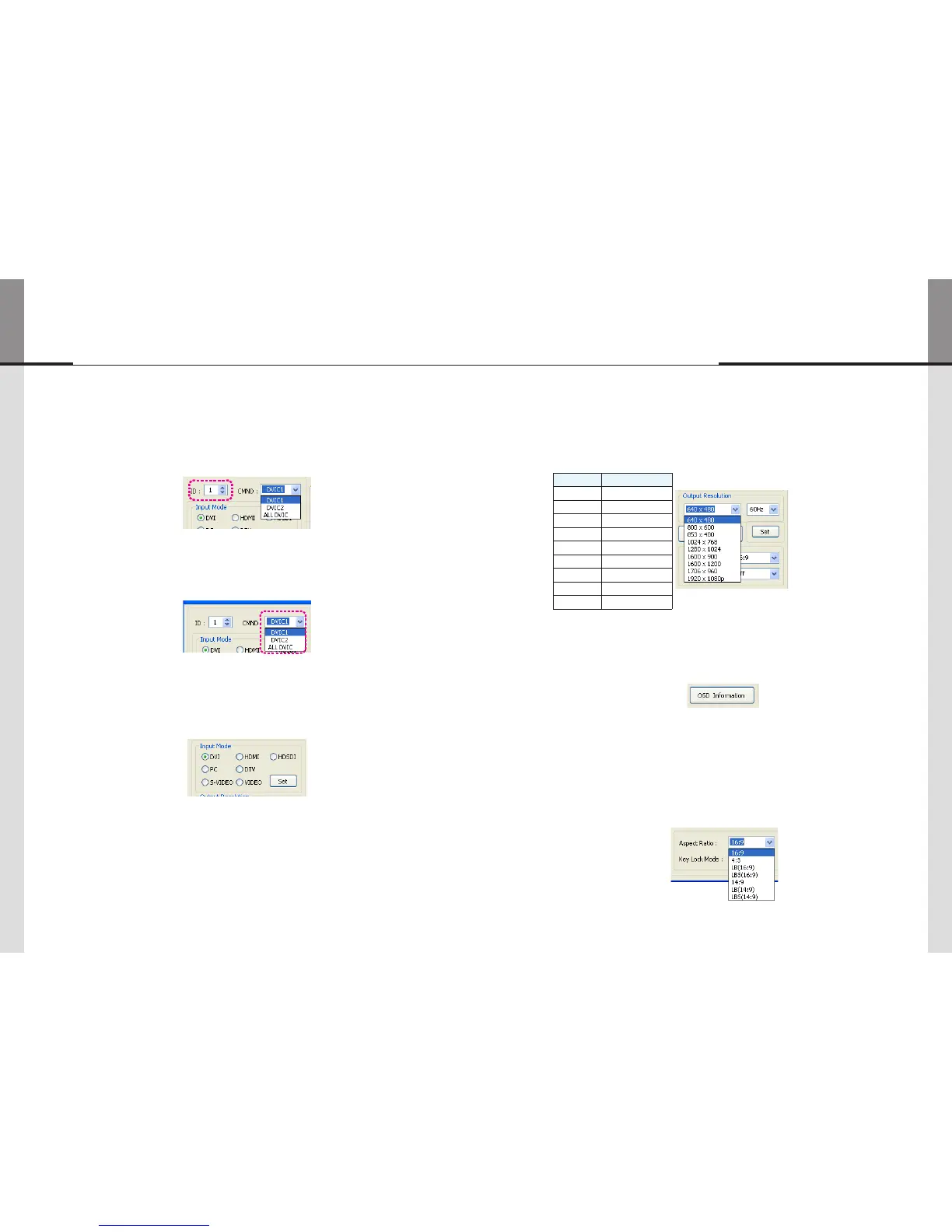

1) ID
• Set the ID of DVI Converter. The ID can be selected from 1 to 9.
2) CMND
• Select the channel of DVI converter to control.
• One of DVI Channel 1(DVIC1), DVI Channel 2(DVIC2), and ALL DVI Channel can be selected.
3) Input Mode
• Select the input mode of DVI Converter.
• One of DVI, HDMI, HDSDI, PC, DTV, S-VIDEO, and VIDEO can be selected.
• Set : Select one mode from 7 Input Modes and execute.
4) Output Resolution
• Set the output resolution of DVI Converter.
Resolution frequency
640 x 480 60Hz / 85Hz
800 x 600 50Hz / 60Hz / 85Hz
853 x 480 50Hz / 60Hz
1024 x 768 60Hz / 85Hz
1280 x 1024 50Hz / 60Hz
1600 x 900 50Hz / 60Hz
1600 x 1200 50Hz / 60Hz
1706 x 960 60Hz
1920 x 1080p 50Hz / 60Hz
• Set : Set the output resolution.
5) OSD Information
• The DVI converter input and input resolution are displayed on the screen.
6) Aspect Ratio
• Set or change the screen ratio (Horizontal: Vertical)
• 16 : 9 : Set the screen ratio as 16:9 wide screen.
• 4 : 3 : Set the screen ratio as 4:3
• LB(Letter Box) : Expand the screen image to remove the black patterns at the top and
bottom portions of the screen.
• LBS(Letter Box Subtitle) : Expand the screen with the subtitle to the top portion. (The
bottom portion remains with black pattern)
