Machine Layout

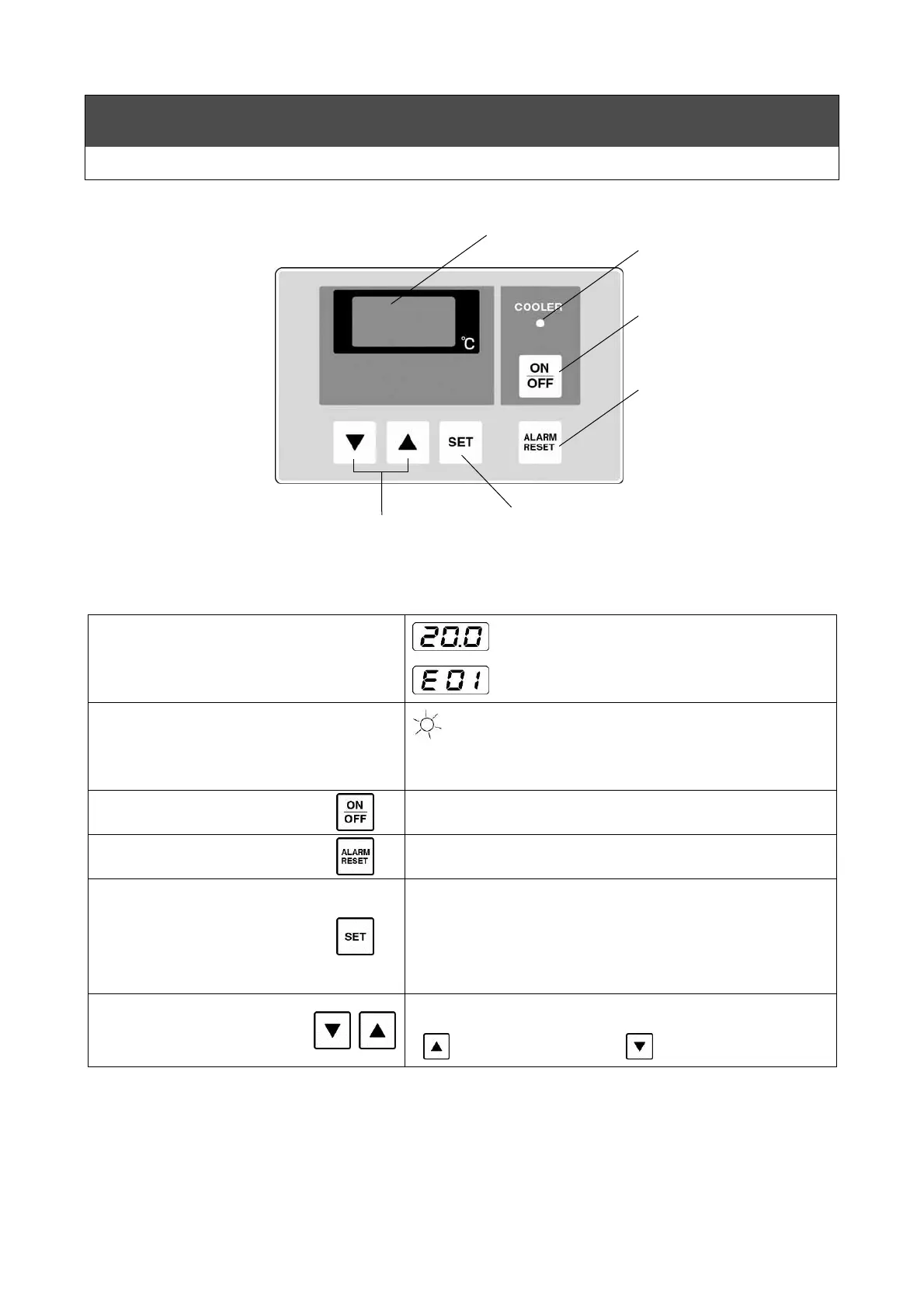

Control Plate
①
Digital display

Measured water temperature (normally displayed)

Alarm (error) code display (flashing)
②
Operation lamp

ON
：
Running

○
OFF
：
Stopped
③
ON/OFF switch
Operation/stop of chiller.
④
Reset switch
Error/alarm reset or error buzzer stops.
⑤
Set switch
Press briefly
・・・ ・・・・
To display the current water temperature
setting.
Hold down for 2 seconds
・・
To change the water temperature
setting.

⑥
Temperature adjustment
switches
Press to adjust the water temperature setting.
………Increase the setting

………Decrease the setting
