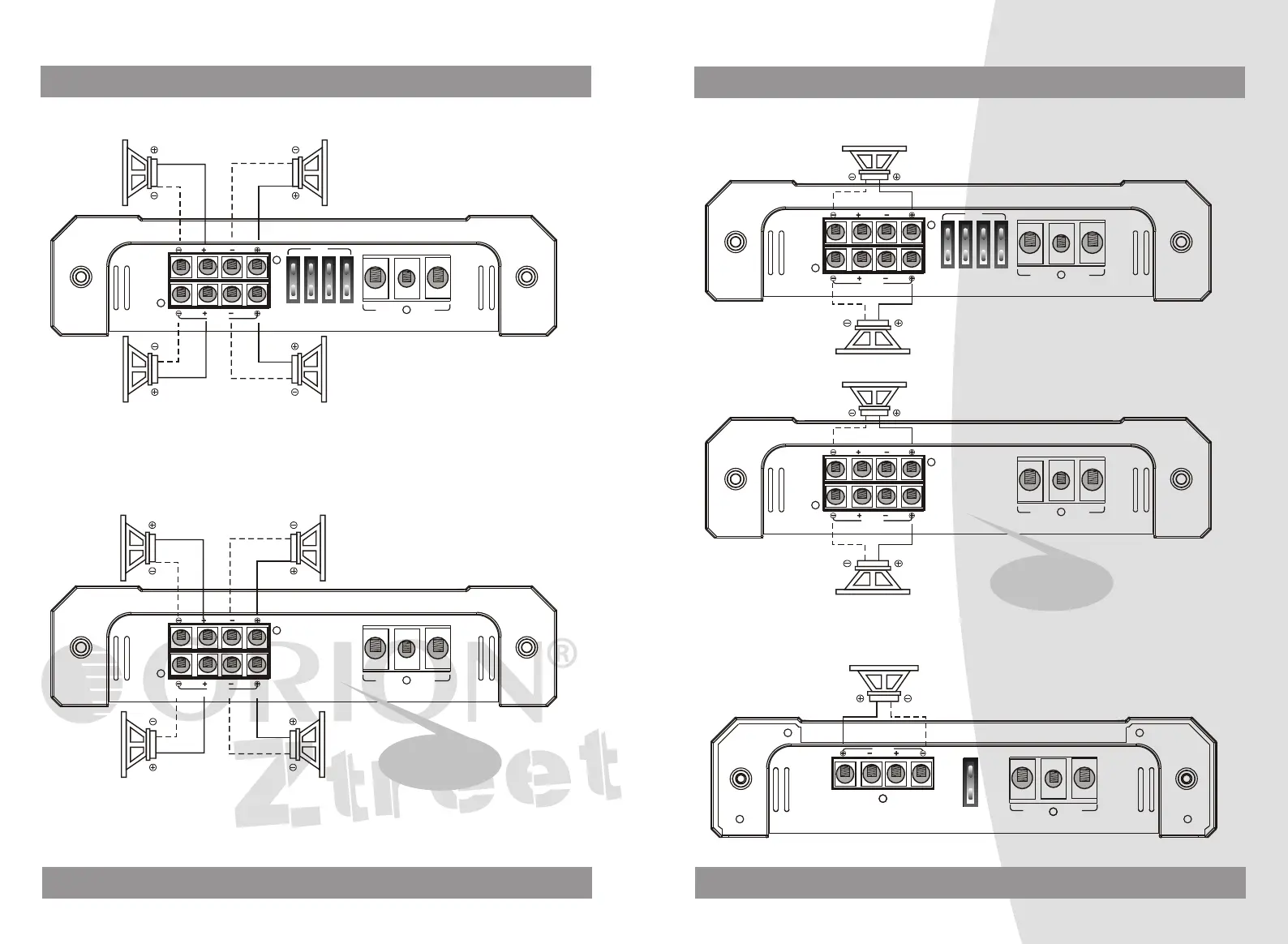

SPEAKERS CONNECTIONS
ZO5000.4
BRIDGED
REM GND
+12V
POWER INPUT
CH1 CH2
CH3 CH4
SPEAKER OUTPUT
FUSES
40A X 4
Ch1
SPEAKER
2~4Ohm
Ch2
SPEAKER
2~4Ohm
Ch3
SPEAKER
2~4Ohm
Ch4
SPEAKER
2~4Ohm
BRIDGED
REM GND
+12V
POWER INPUT
CH1 CH2
CH3 CH4
SPEAKER OUTPUT
Ch1
SPEAKER
2~4Ohm
Ch2
SPEAKER
2~4Ohm
Ch3
SPEAKER
2~4Ohm
Ch4
SPEAKER
2~4Ohm
ZO6000.4
ZO6000.4:200A
BRIDGED
REM GND
+12V
POWER INPUT
CH1 CH2
CH3 CH4
SPEAKER OUTPUT
FUSES
40A X 4
BRIDGED MODE
ZO5000.4
ZO1000.2
MONO SPEAKER
4~8Ohm
BRIDGED
REM GND
+12V
POWER INPUT
CH1 CH2
CH3 CH4
SPEAKER OUTPUT
MONO SPEAKER
4~8Ohm
MONO SPEAKER
4~8Ohm
MONO SPEAKER
4~8Ohm
SPEAKER OUTPUT
REM GND
+12V
RIGHT
BRIDGED
FUSE
40A
POWER INPUT
LEFT
ZO6000.4
ZO6000.4:200A
