17
Area full arming
Zones can be grouped together to make ‘area sets’. Area sets are often used in multi tenanted
buildings where there is a communal entrance and separate living spaces/areas of work. Users
can arm individual or multiple area sets. To full arm selected areas, please proceed as follows:
1. Enter code or present tag to select the user menu.

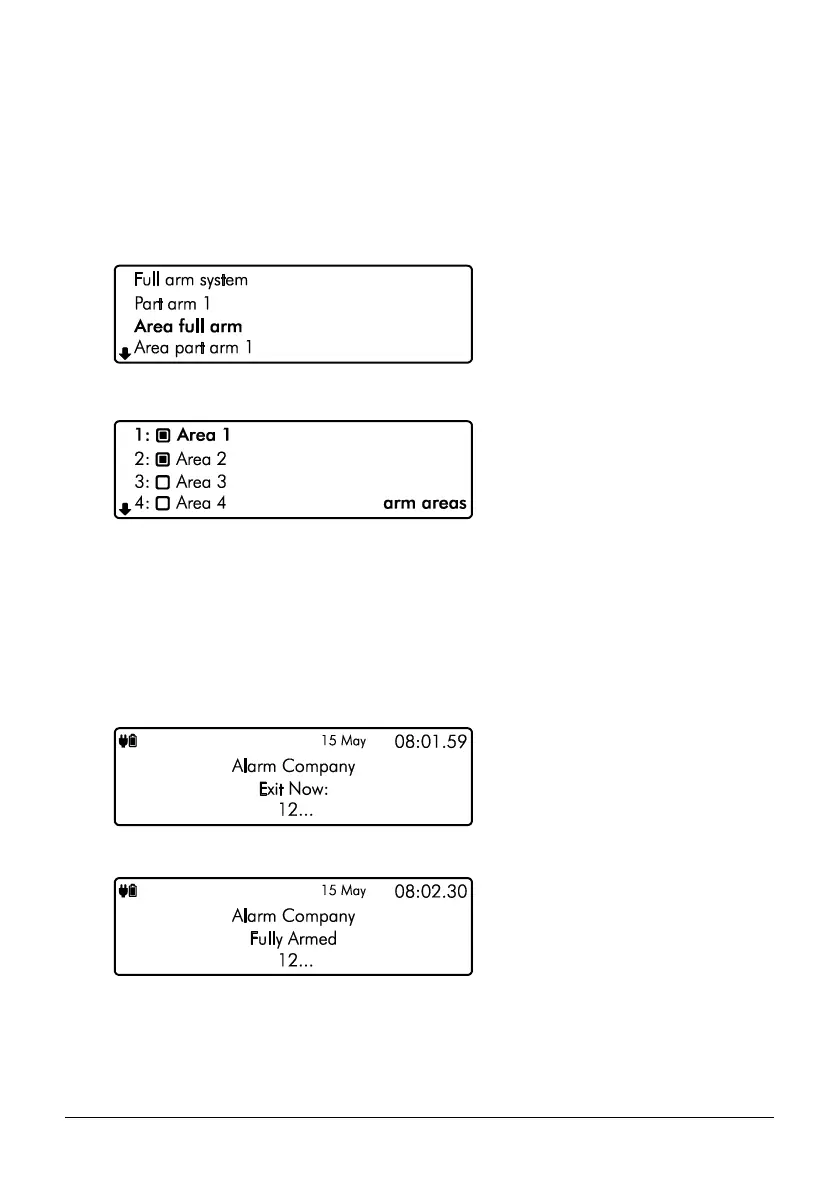

2. From the user menu, use the U and D keys to scroll to ‘Area full arm’:
3. Press E or k to select, the ‘arm areas’ menu is now displayed:
` Area will be armed
a Area will remain unarmed
4. Use the U and D keys to select the ‘Area’. Then use the L and R keys to toggle
the selected area on or off. Once you have selected the areas that you would like to arm,
press E or k to confirm.
5. The exit tone will start and the keypad will instruct you to exit the protected area:
6. The keypad will then indicate that the areas that are fully armed:
