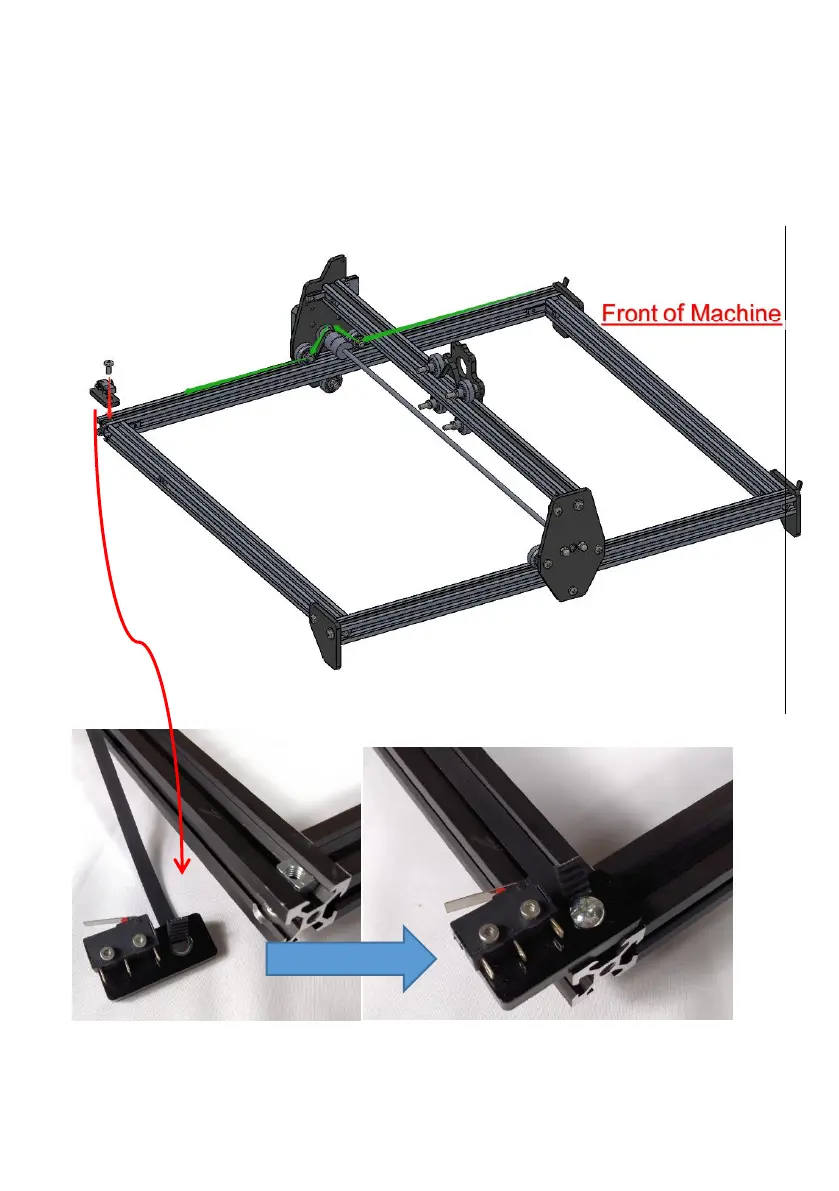

10. First, pass the timing belt through the rollers and timing pulley along the
arrow in picture below, then take out the Y limit switch, 1 M5*10 screw and 1 M5
nut, to assemble the limit switch and secure the other end of the timing belt.
(Please tighten the timing belt when lock screws)
