Ortur Laser Master 2 - Mainboard and Y Motor Mounting

Ortur Laser Master 2
22 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
9

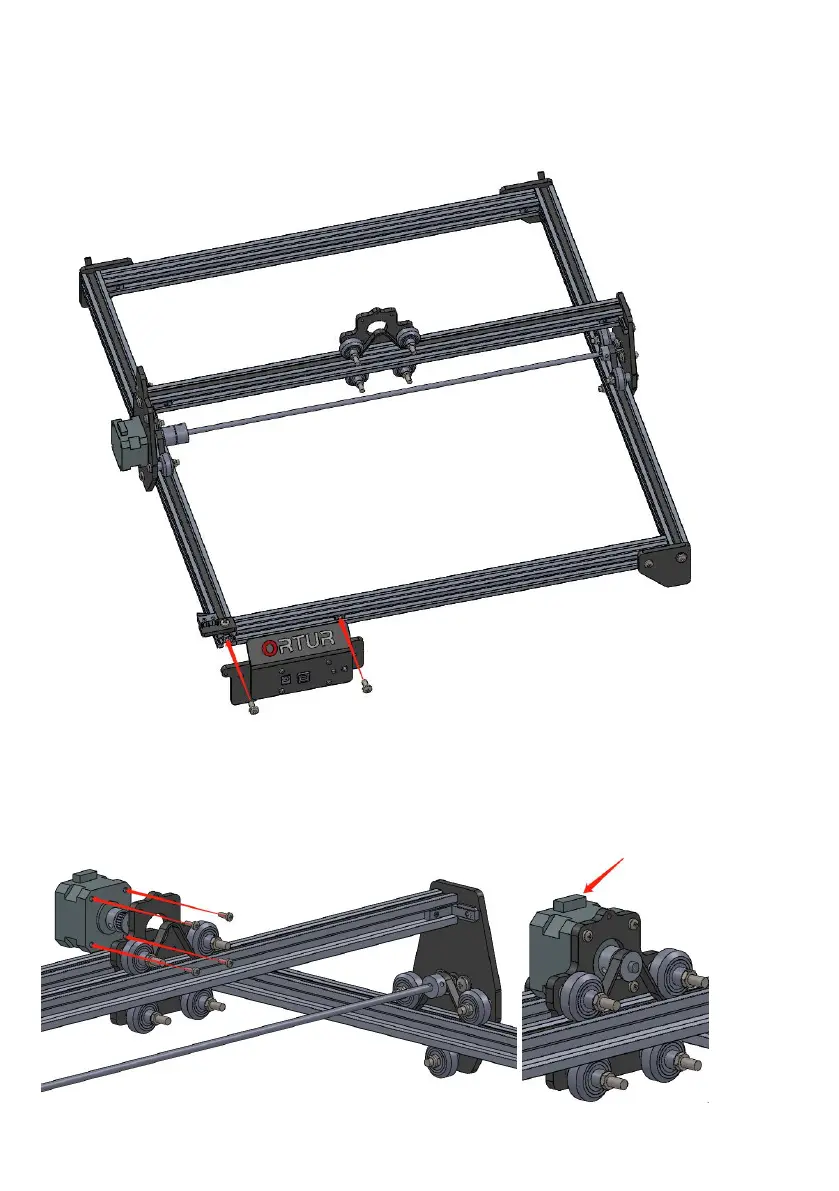

11. Please assemble the mainboard assembly on frame by 2 pieces of M5*10
screws.
12. Please assemble the Y motor by 4 pieces of M3*8 screws.
Pay attention to the
direction of motor
