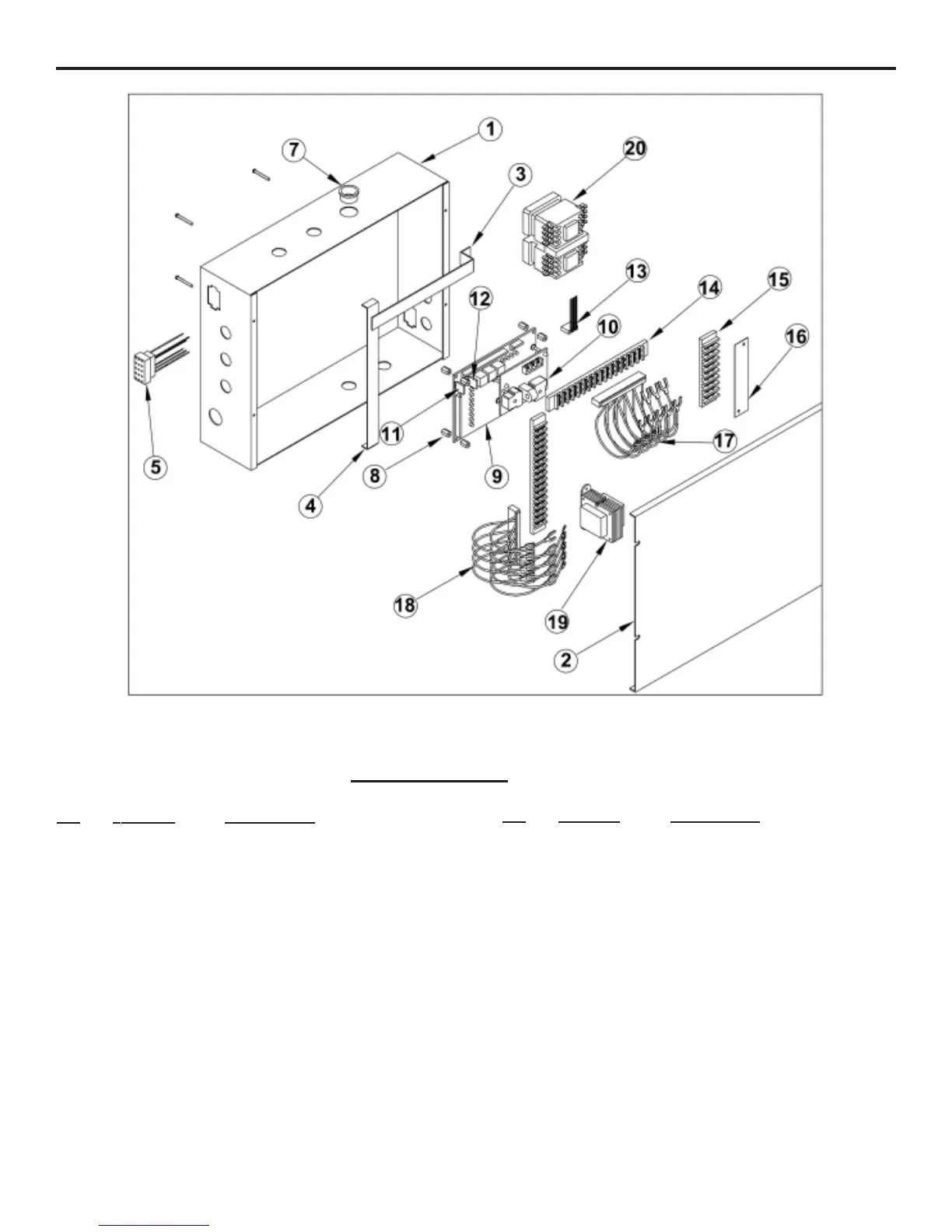

OSCO SWG - Model SWG Three Phase Control Box Exploded View and Parts List

SWG OPERATOR INSTALLATION GUIDE
- 26 -
MODEL SWG THREE PHASE CONTROL BOX PARTS LIST
REF
NO. PART NO. DESCRIPTION
1 2100-1865 Control Box Wrapper
2 2100-1866 Control Box Cover
3 2100-1864 Terminal Strip Bracket
4 2100-1762 Terminal Strip Bracket
5 2510-293 Control Box Motor Harness Assembly
(Leeson motors)
2510-355 Control Box Motor Harness Assembly
(AO Smith motors)
7 2300-735 Heyco Bushing, 1.09 diameter
8 2500-1948 Control Board Standoff
9 2510-295 Control Board with 3 Phase Motor Board
2510-268 Control Board only
10 2500-1980 3 Phase Motor Board
11 2500-1966 2 Amp Fuse for Control Board
12 2500-1975 3 Amp Fuse for Control Board
13 2510-254 Limit Switch Harness
REF
NO. PART NO. DESCRIPTION
14 2500-071 Terminal Strip, 16-141
15 2500-270 Terminal Strip, 9-142 OR
2500-185 Terminal Strip, 13-142
16 2300-488 Terminal Strip Barrier for 9-142 OR
2300-885 Terminal Strip Barrier for 13-142
17 2510-250 Output Wire Harness Assembly
18 2510-249 Input Wire Harness Assembly
19 2500-767 230/24VAC, 75VA, Transformer
2500-768 460/24VAC, 75VA, Transformer
20 2500-2084 24VAC Contactor
2520-400 Controller, 208/230, 3 Phase
2520-401 Controller, 460, 3 Phase
(order limit harness and mounting
hardware separately)
6-03-13
