SWR • SWC • SWD OPERATOR INSTALLATION GUIDE
- 28 -

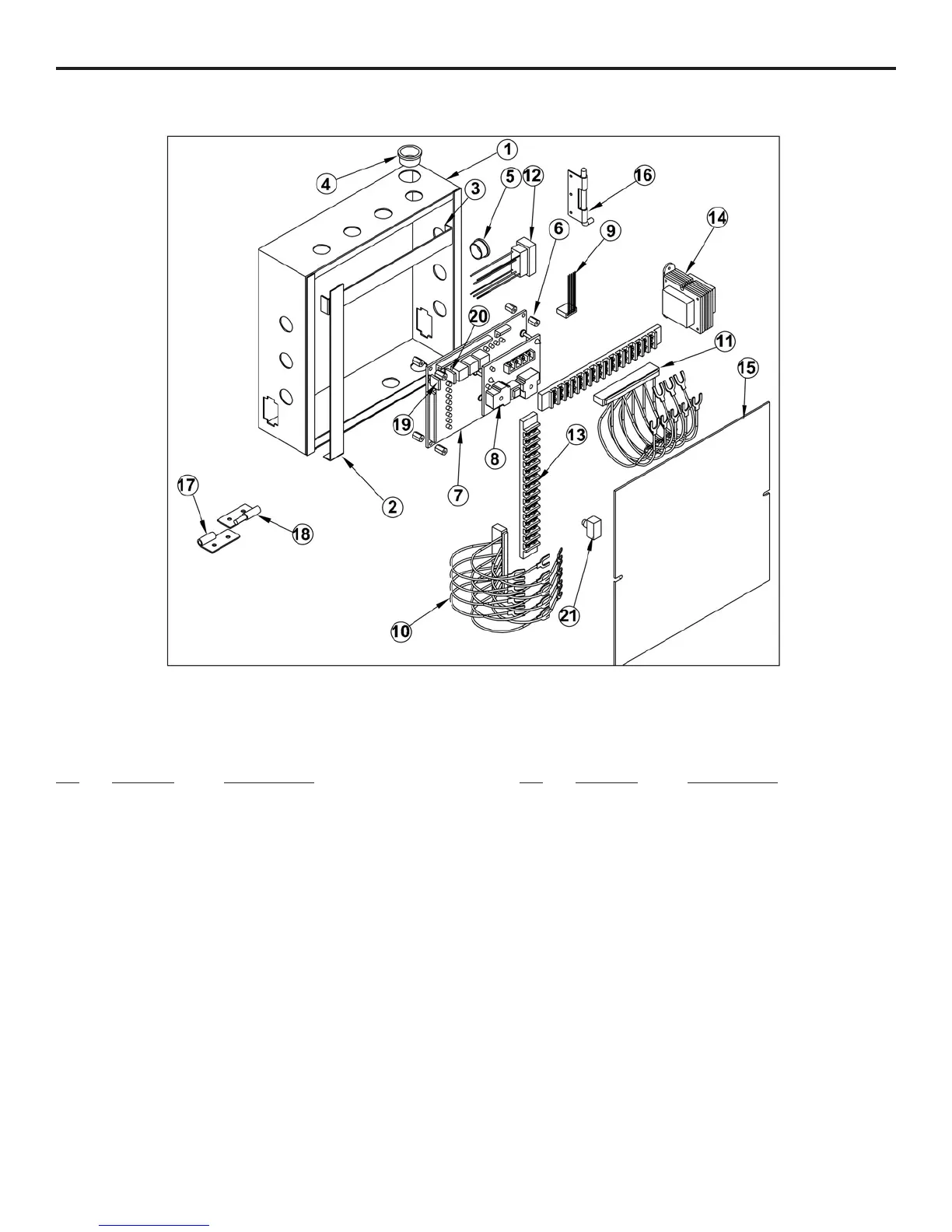

MODELS SWR • SWC CONTROL BOX PARTS LIST
REF
NO. PART NO. DESCRIPTION
1 2100-1778-PLT Control Box Wrapper
2 2100-1762 Terminal Strip Bracket, output side
3 2100-1761 Terminal Strip Bracket, input side
4 2300-735 Heyco Bushing, 1.09 diameter
5 2200-122 Heyco Bushing, .87 diameter
6 2500-1948 Control Board Standoff
7 2510-268 Control Board
8 2500-1946 AC Motor Drive Board
2510-244 Control Board with AC Motor Board
9 2510-380 Limit Switch Harness Assembly
10 2510-249 Input Wire Harness Assembly
11 2510-250 Output Wire Harness Assembly
12 2510-261 Control Box Motor Harness Assembly
13 2500-071 Terminal Strip, 16-141
14 2500-212 Transformer, 115/24VAC, 40VA
2500-791 Transformer, 230/24VAC, 40VA
REF
NO. PART NO. DESCRIPTION
15 2300-696 Clear Control Box Cover
16 2200-940 Pull Pin Disconnect
17 2200-873-PLT Control Box Hinge, Female
(riveted to control box)
18 2200-874-PLT Control Box Hinge, Male
(riveted to accessory shelf)
19 2500-1966 2 Amp Fuse for Control Board
20 2500-1975 3 Amp Fuse for Control Board
2520-391-F Complete Controller Assembly
115VAC (order limit harness and
mounting hardware separately)
2520-392-F Complete Controller Assembly
230VAC (order limit harness and
mounting hardware separately)
21 2500-1495 Stop/Reset Button
3-05-6
