SWR • SWC • SWD OPERATOR INSTALLATION GUIDE
- 5 -

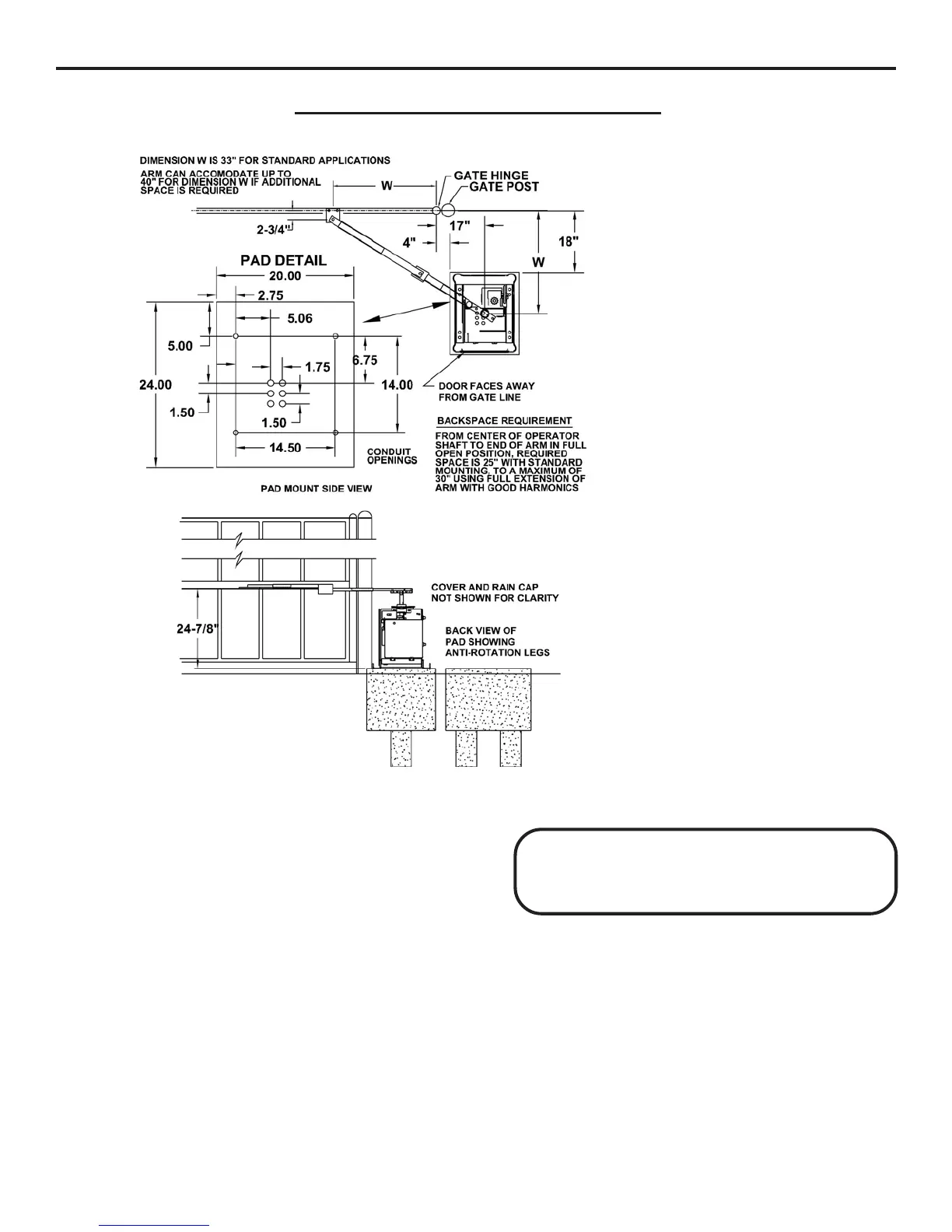

PAD MOUNTING INSTRUCTIONS
Recommended pad size is 24”x20”x18” deep minimum.
Pad depth should be set according to local codes and at
least as deep as frost line. If soil conditions may cause
operator and pad to shift during operation, anti-rotation
legs may be required. Use two 6” diameter, 10” deep
legs to counteract this problem as shown. 5/8” J-bolts
may be set into the concrete before it sets following the
dimensions shown, or drilled after the concrete sets.
A large, 2 inch diameter hole has been supplied for con-
duit placement. Use of flexible conduit will make it easier
to line up with this opening.
Assemble the arm components as shown on page 7.
PAD MOUNTING INSTRUCTIONS
A SEPARATE PEDESTRIAN GATE IS REQUIRED FOR
ALL PEDESTRIAN TRAFFIC. THIS GATE MUST BE
A MINIMUM DISTANCE OF 7 FEET FROM THE
VEHICULAR GATE AND GATE OPERATOR
NOTE: Maximum gate opening angle is
approximately 95 degrees, depending
on gate width. If larger opening angle
is required, non-standard positioning
of the operator and modified articulat-
ing arms will be required. Contact the
factory for pricing and availability.
