FIGURE 3
FIGURE 4
3 Start Up
3.1 Introduction
• Please place the system in a cool, ventilated, solid horizontal surface, away from
any heat source. The system comes ready installed with the filters so you can fill
the Supply Tank right away.
3.2 Filling the Supply Tank

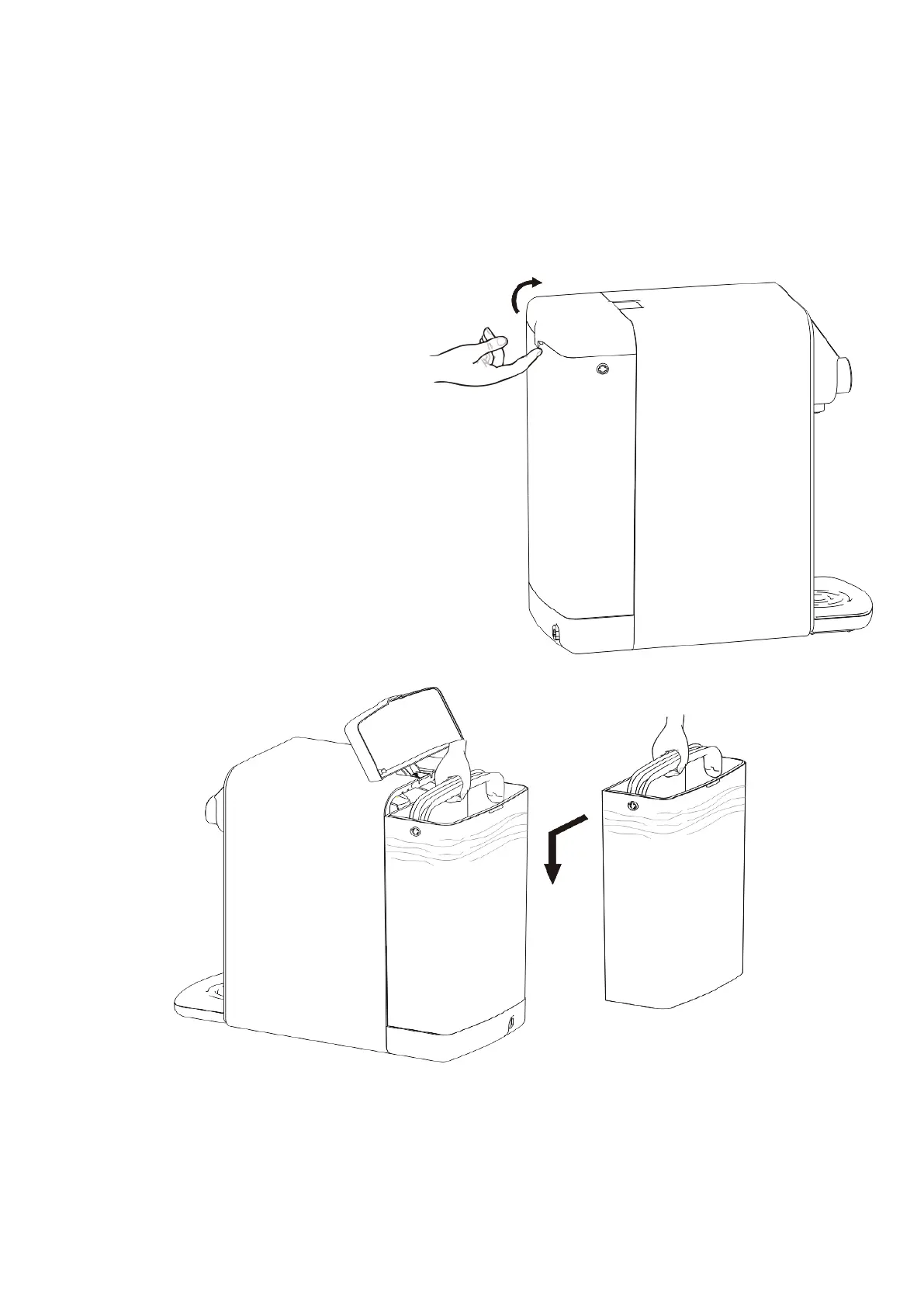

• Open the tank lid (Figure 3).
• Lift the Supply Tank out.
• Fill the Supply Tank with fresh water
and put it back on to the base (Figure 4)
and close the lid. If you find it too heavy
to lift, consider using a jug to do a bit at a
time.
• Note: machine will not run without the
Supply Tank Lid clipped on.
.
3.3 Power Connection
• Insert the power plug into the socket (see Figure 1). The system will beep and light
up which indicates the machine is ready to use.
Note: This product is only suitable for AC 220-240V, 220V power supply, and
should be used alone or over rated 10A with a earthed socket.
8
