Installation
4.1 Installation conditions
Installation position: Terminals on top and bottom
Horizontal spacing: No spacing necessary
Minimum vertical rail grid spacing: 115 mm (90 + 25 mm)
(excluding conduit)
Recommended vertical rail grid spacing: 160 mm (with 40 mm conduit)
Installation location Indoor
4.2 Mounting process
The e:cue SYMPL Core S is designed to mount onto a 35 mm DIN rail
(EN 60715) in a vertical position.

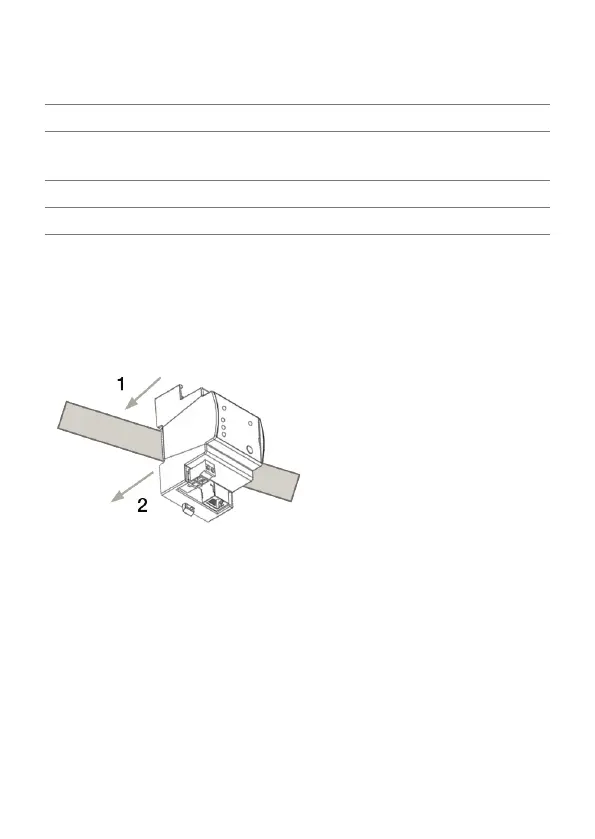

1. Clip the device to the rail from
top.
2. Gentle pressure is then
applied to the top front to snap it
in place. The SYMPL Core S has
been mounted successfully.
You can also mount the e:cue
SYMPL Core S on any at vertical surface. Use a 3 to 3.5 mm screw for the
hanger hole.
For mechanical stability, mounting on a rail is recommended.
4.3 Ethernet connection
The pin-assignment of the Ethernet port corresponds to RJ45 standards.
You can use every common Ethernet component, like cable, splitters, and
switches. Connect the SYMPL Core S at the designated Ethernet interface
with a patch cable (RJ45, CAT5).
