Osram e:cue SYMPL Core S User Manual

08
General device description
2.2 Connectors and interfaces

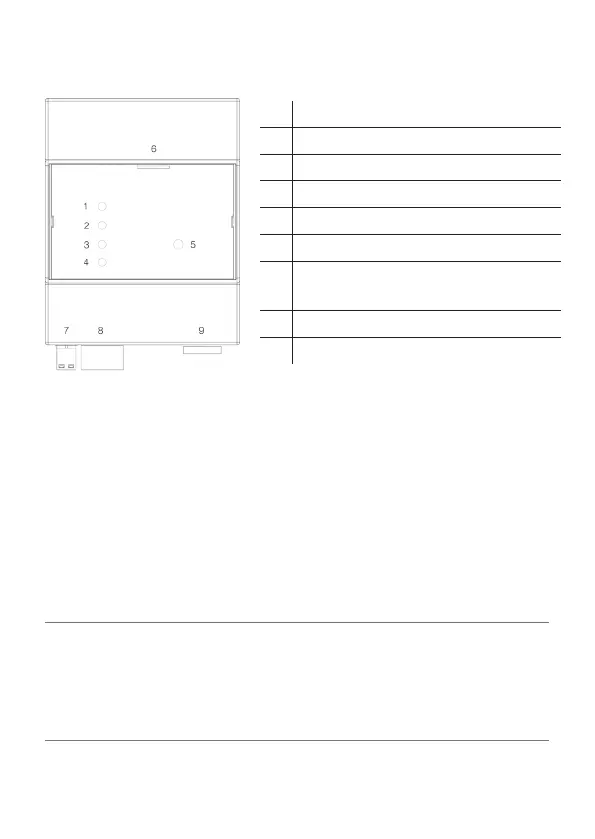

View from top
1 Master/Slave LED
2 Error/Status LED
3 Ethernet link LED (e:net, LAN activity)
4 Power LED
5 Identify button
6 micro SD card slot
7 Power supply
(Vcc–, Vcc+ left to right)
8 e:net/Ethernet
9 USB 2.0 socket
2.3 User interface: LEDs
The SYMPL Core S has four LEDs. The four LEDs show the basic states of
the SYMPL Core S.
LEDs
Master/Slave Blue: This SYMPL Core S is master in a master/slave
group.
Yellow: This SYMPL Core S is a slave in a master/slave
group.
Error/Status Green: Signals system activity.
Orange: System load reaches 100%.
Red: A system error occurred. Restart the system by
disconnecting the power supply. If the error persists,
contact OSRAM Service.
